WASHER MOTOR (for Front Side): Components: Illustration

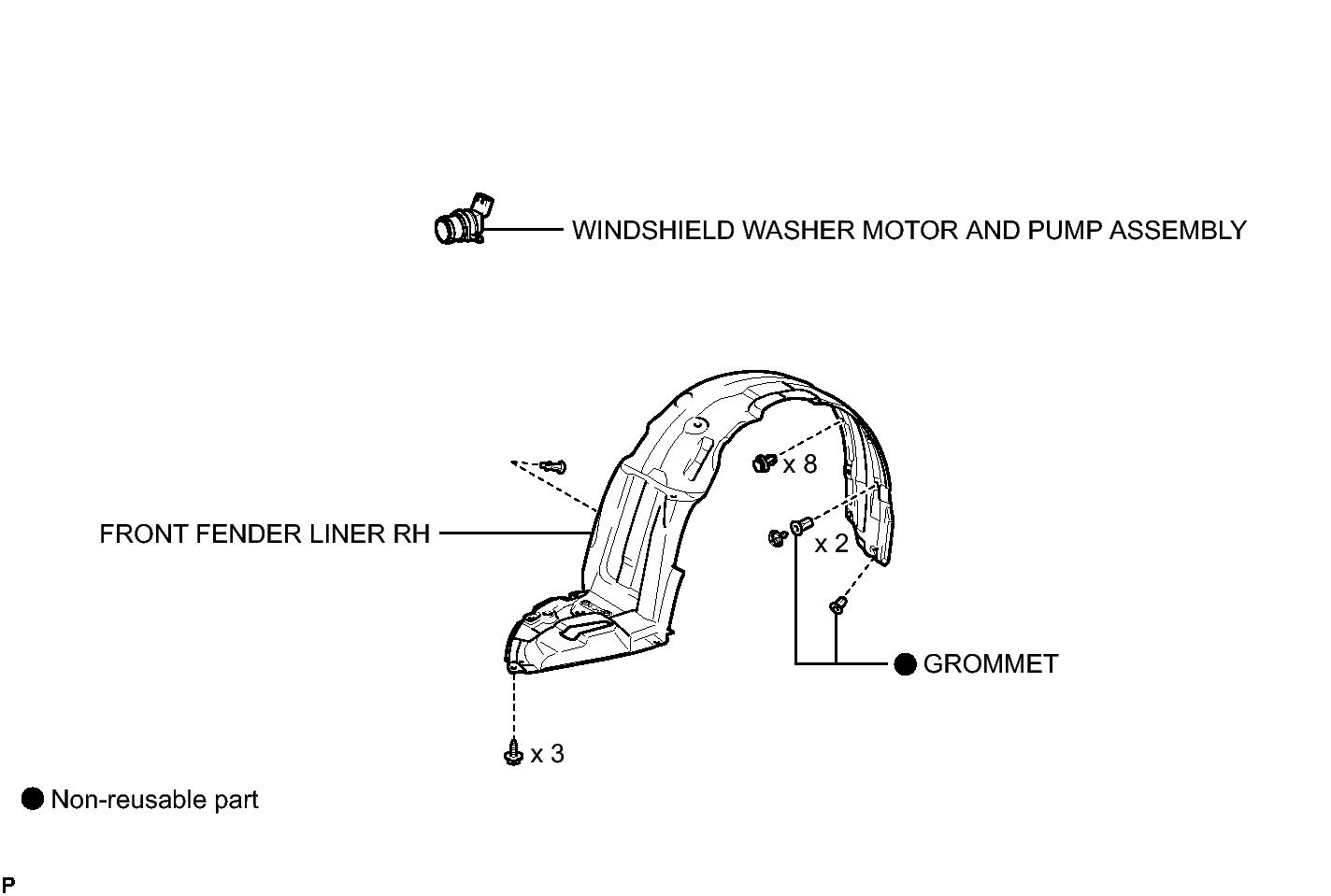

Fig 1: Identifying Washer Motor (For Front Side) Replacement Components

GTY290705

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
