Vehicle Speed Signal Circuit between Radio Receiver and Combination Meter: Wiring Diagram

  1. for 2ZR-FE

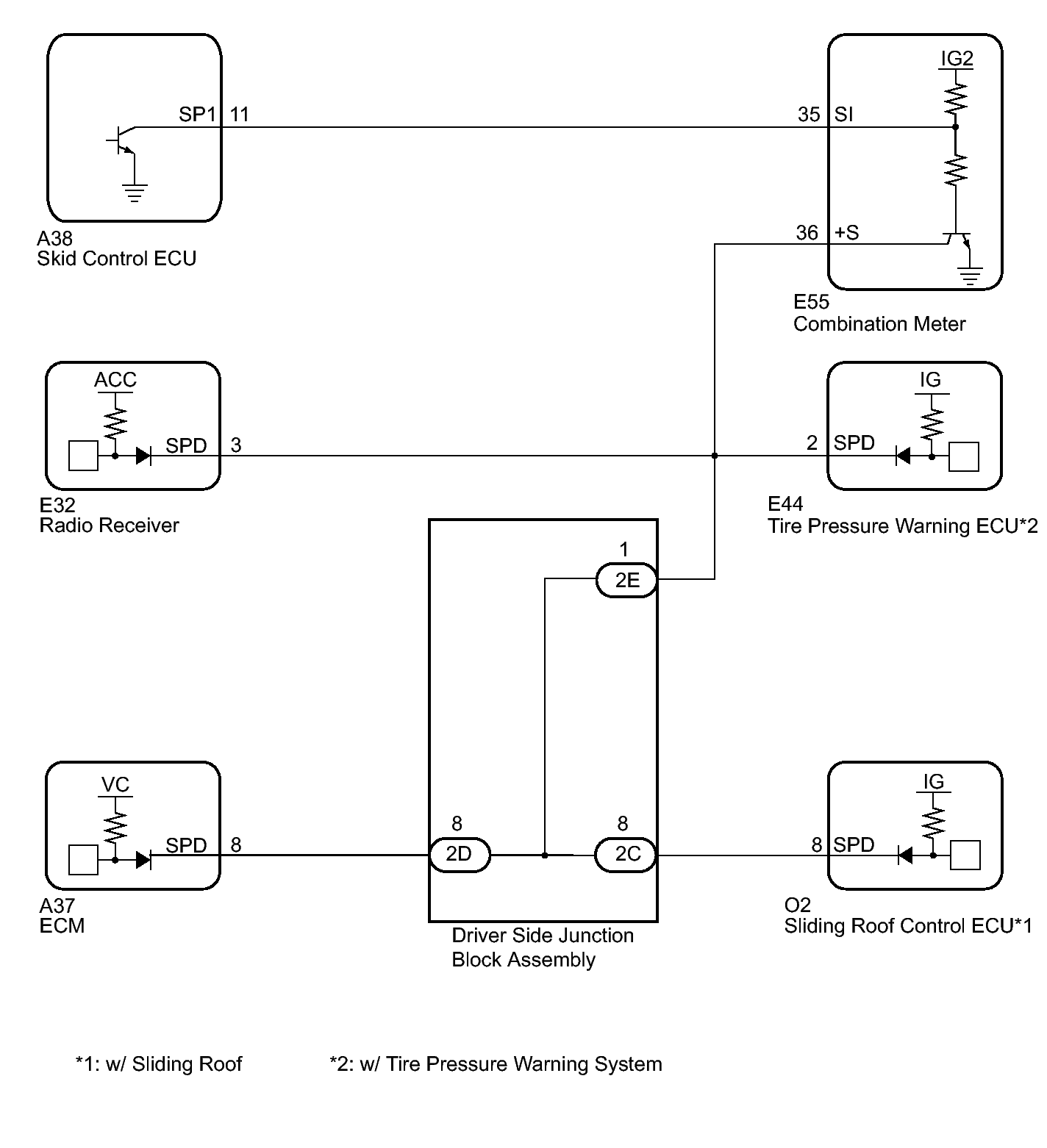

    Fig 1: Vehicle Speed Signal Circuit - Wiring Diagram (For 2ZR-FE)
    GTY291091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for 2AZ-FE

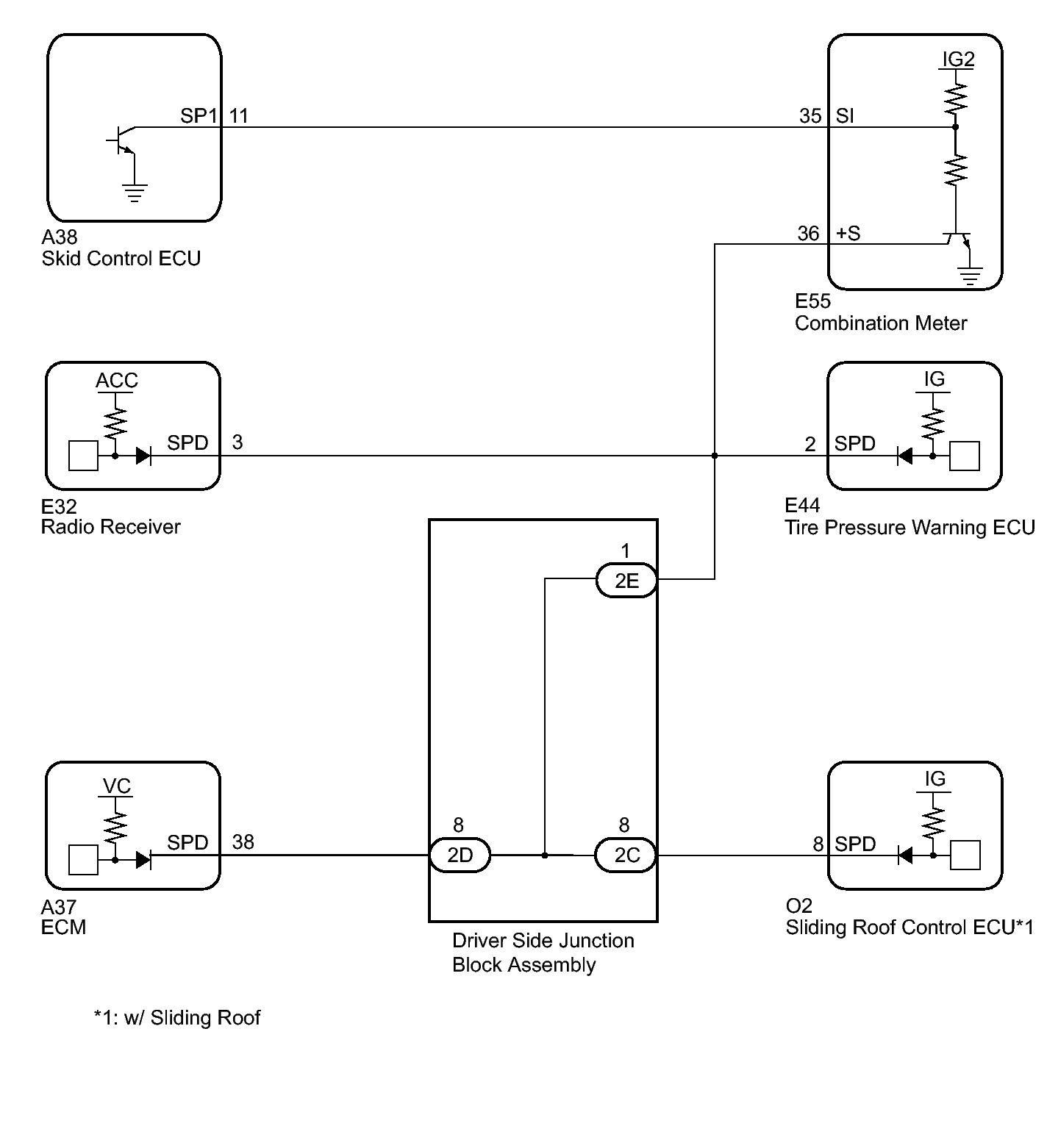

    Fig 2: Vehicle Speed Signal Circuit - Wiring Diagram (For 2AZ-FE)
    GTY291739Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
