Light Control Switch Circuit: Wiring Diagram

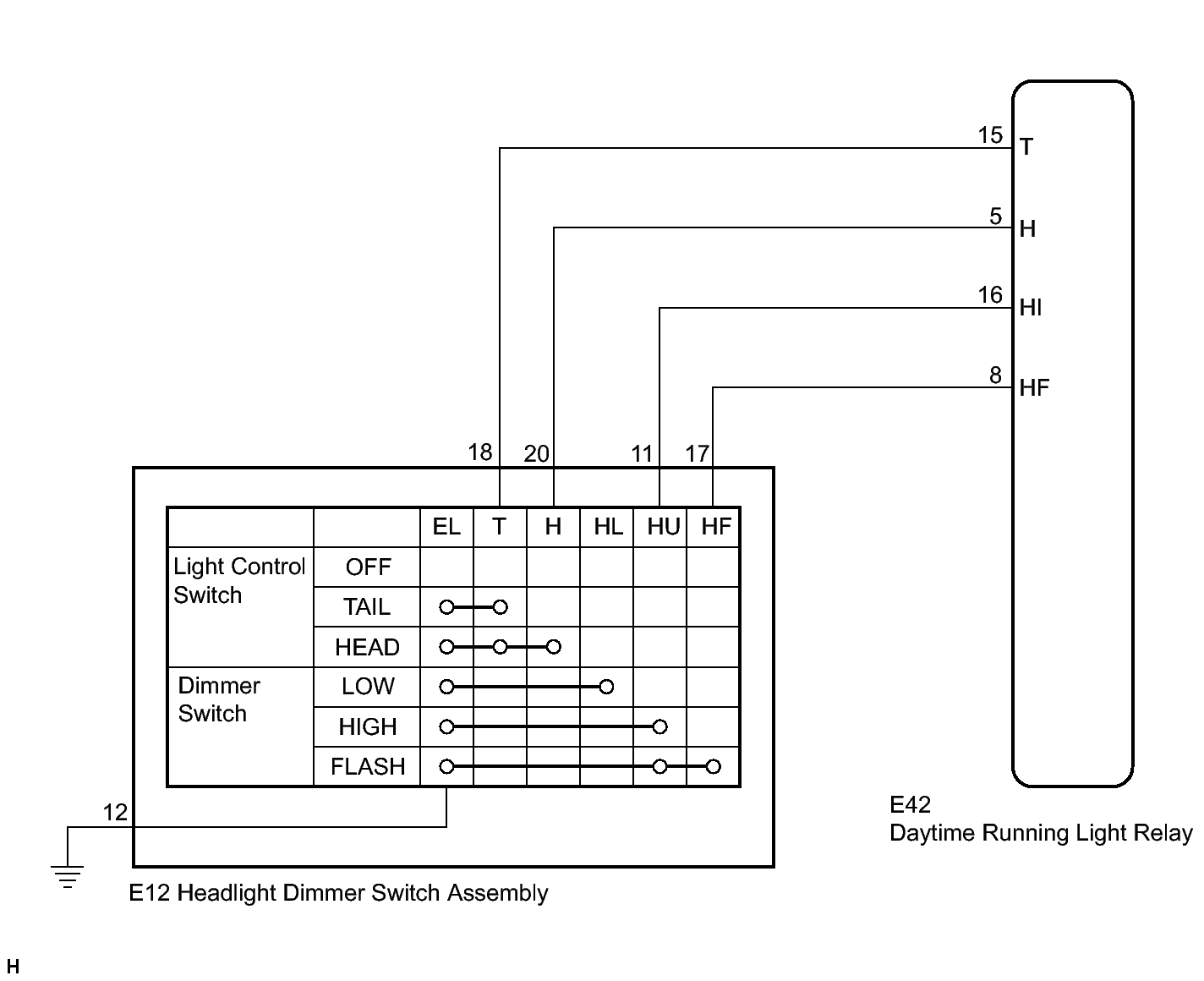

Fig 1: Identifying Light Control Switch Circuit Diagram

GTY227104

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
