USB Audio System Recognition/Play Error
>>
Wiring Diagram
USB Audio System Recognition/Play Error: Wiring Diagram

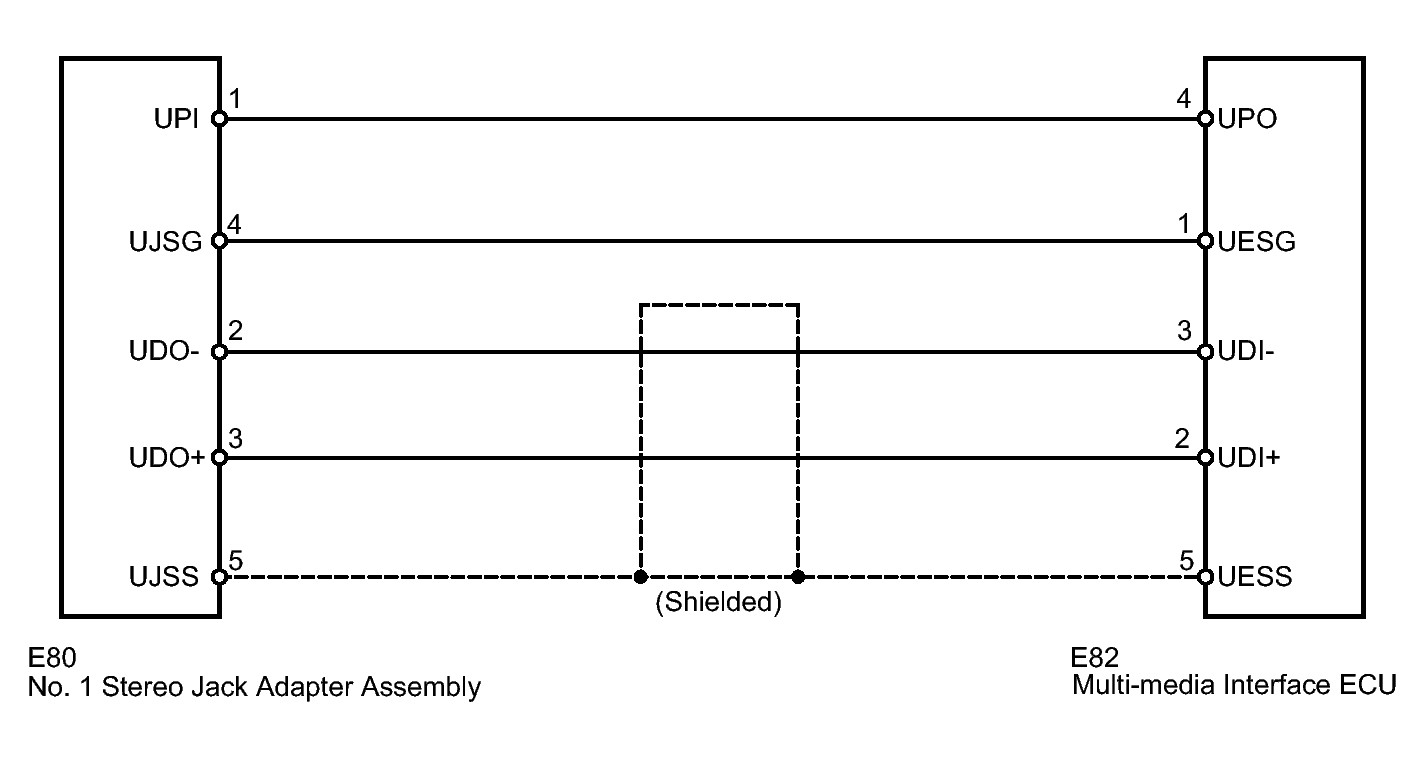

Fig 1: USB Audio System Recognition/Play Circuit - Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
