Air Fuel Ratio Sensor: Installation: Installation

WARNING: This page is about a different variant/trim than selected.

INSTALL AIR FUEL RATIO SENSOR

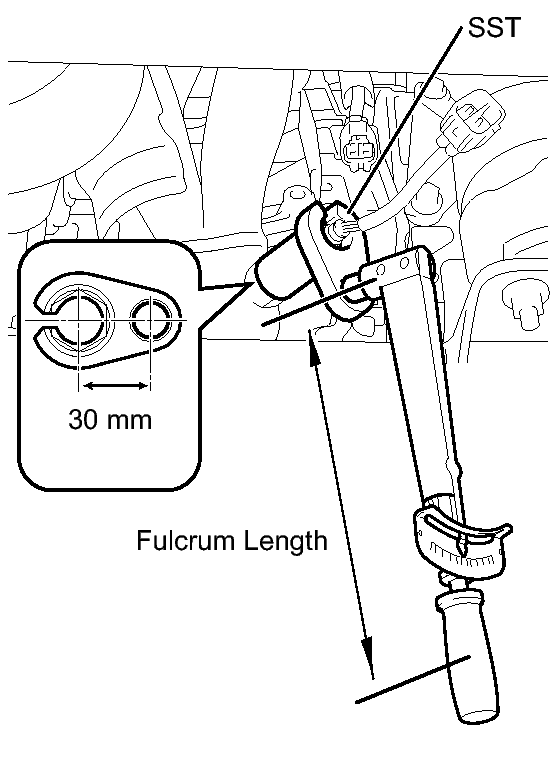

Fig 1: Identifying SST To Install Air Fuel Ratio Sensor To Exhaust Manifold
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using SST, install the air fuel ratio sensor to the exhaust manifold.
  - SST: 09224-00010
  without SST

  Torque: 44 N*m (449 kgf*cm, 32 ft.*lbf)

  with SST

  Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)
  NOTE:
  - The "with SST" torque value is effective when using SST with a fulcrum length of 30 mm (1.18 in.).
  - The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 300 mm (11.81 in.). Refer to PRECAUTION .
  - This torque value is effective when SST is parallel to the torque wrench.
2. Connect the air fuel ratio sensor connector.

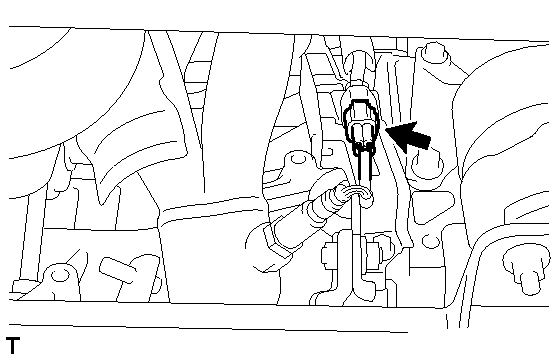

  Fig 2: Locating Air Fuel Ratio Sensor Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT FOR EXHAUST GAS LEAK
INSTALL NO. 1 ENGINE UNDER COVER
