Air Fuel Ratio Sensor: Components: Illustration

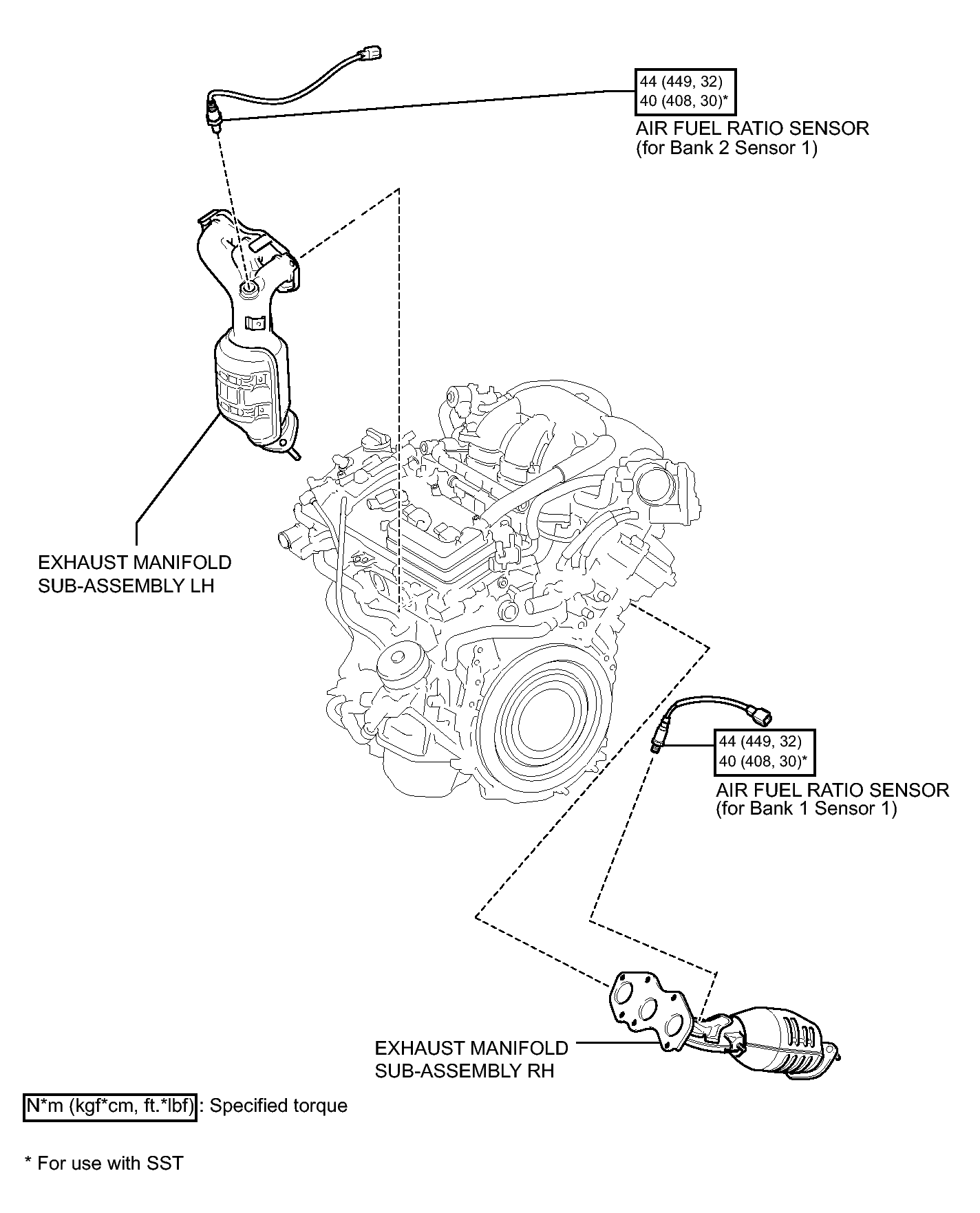

Fig 1: Identifying Air Fuel Ratio Sensor Replacement Components With Torque Specifications

GTY300332

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
