Manifold Absolute Pressure Sensor: Components: Illustration

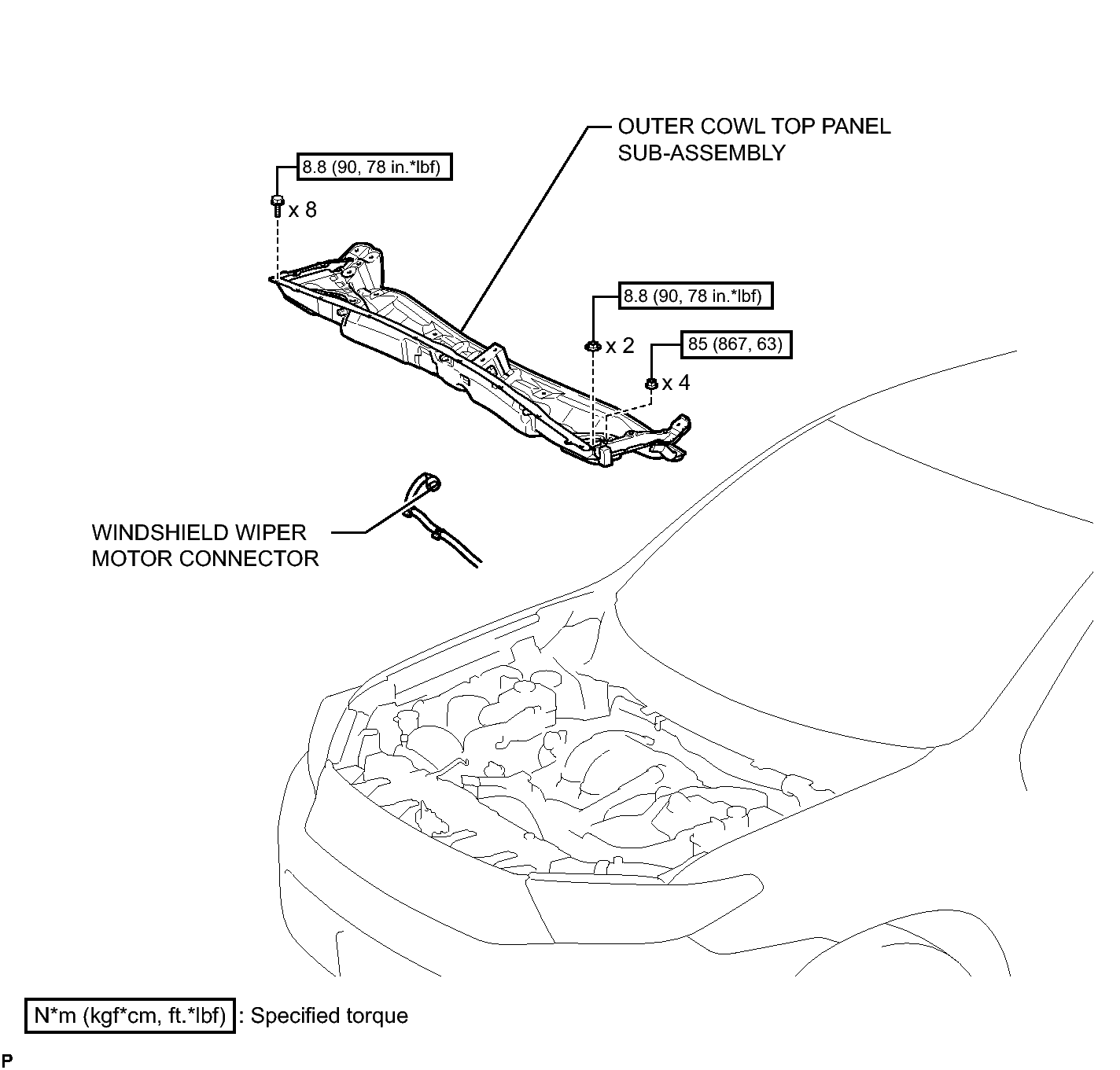

Fig 1: Identifying Manifold Absolute Pressure Sensor Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

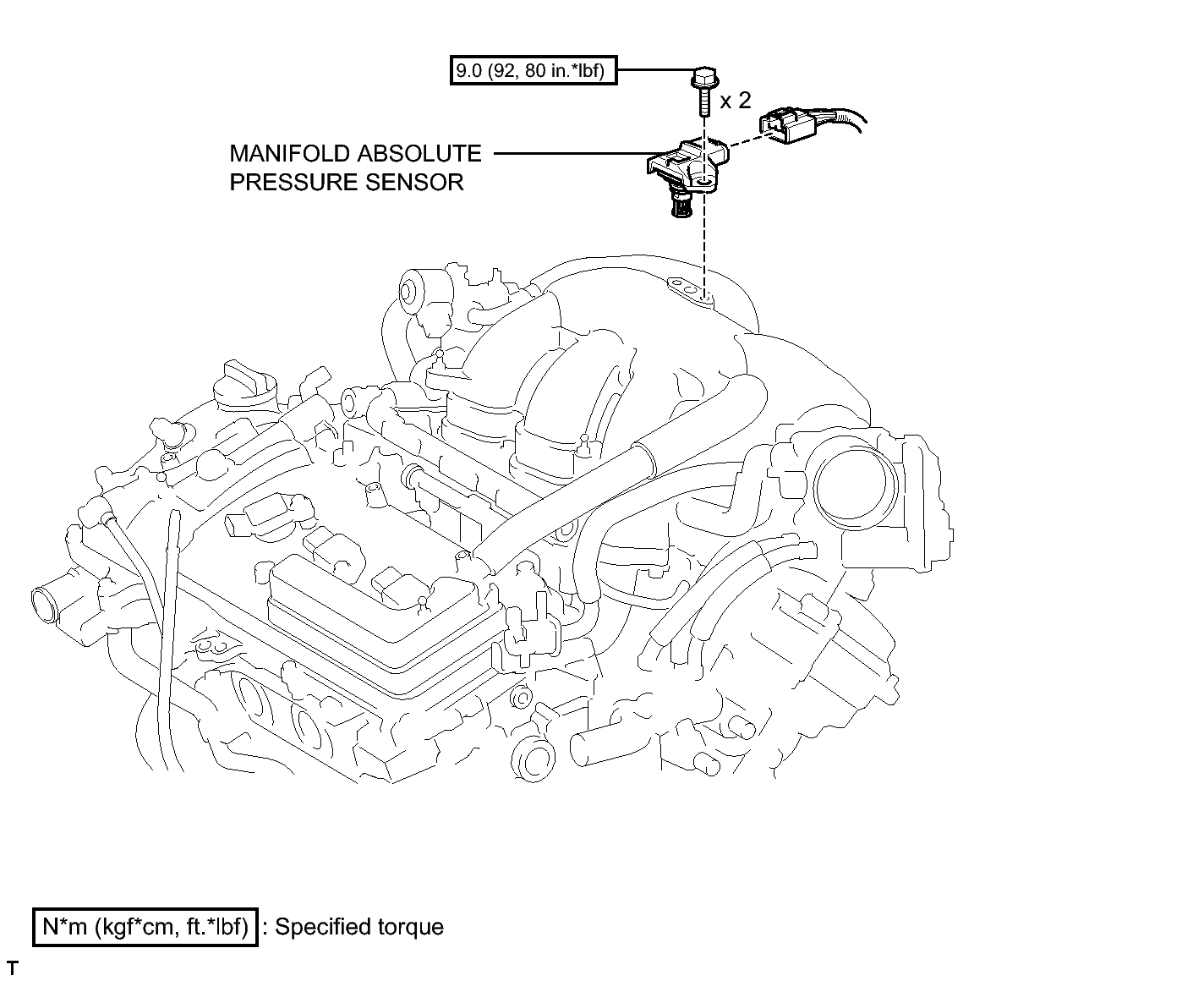

Fig 1: Identifying Manifold Absolute Pressure Sensor Replacement Components With Torque Specifications (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
