Engine Control System (Service Information) (Hybrid): ECM: Installation: Installation

1. Set the ECM in the engine room ECM box.
2. Install the engine room ECM cover with the 3 claws.
3. Install the No. 1 ECM bracket and No. 2 ECM bracket with the 4 bolts.

   Torque: 4.5 N*m (46 kgf*cm, 40 in.*lbf)

4. Install the wire harness bracket with the 2 bolts.

   Torque: 8.5 N*m (87 kgf*cm, 75 in.*lbf)

5. Install the ECM with bracket with the 3 bolts.

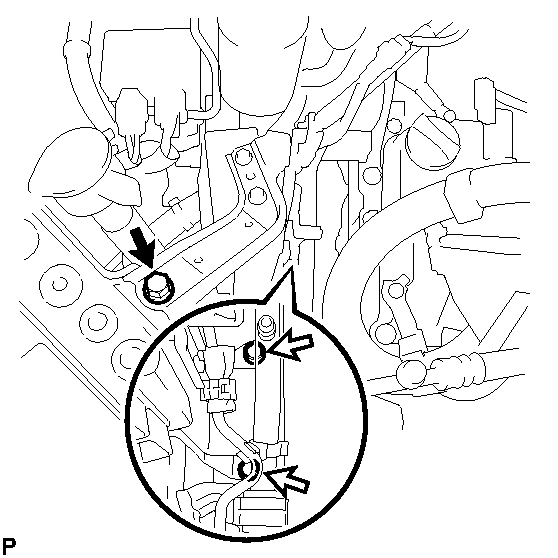

   Fig 1: Identifying ECM Bracket & Fasteners

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   for bolt A

   Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

   for bolt B

   Torque: 19 N*m (194 kgf*cm, 14 ft.*lbf)

   TEXT IN ILLUSTRATION



   	Bolt A
   	Bolt B

6. Attach the clamp and connect the cooler pipe.
7. Connect the 3 wire harness clamps.
8. Connect the 2 ECM connectors and wire harness clamp.

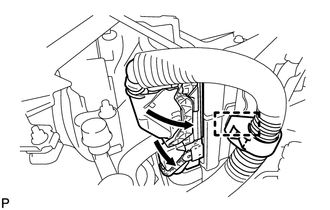

   Fig 2: Identifying Cooler Pipe & Fasteners

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE:

   • When connecting the connectors, make sure that dirt, water or other foreign matter does not become stuck between the connectors and other parts.
   • Make sure that the 2 levers are securely locked.

HINT:

Initialization cannot be completed by only disconnecting and reconnecting the cable of the negative (-) battery terminal.

1. Perform initialization when replacing the ECM See step  13.
