Crankshaft Position Sensor: Components: Illustration

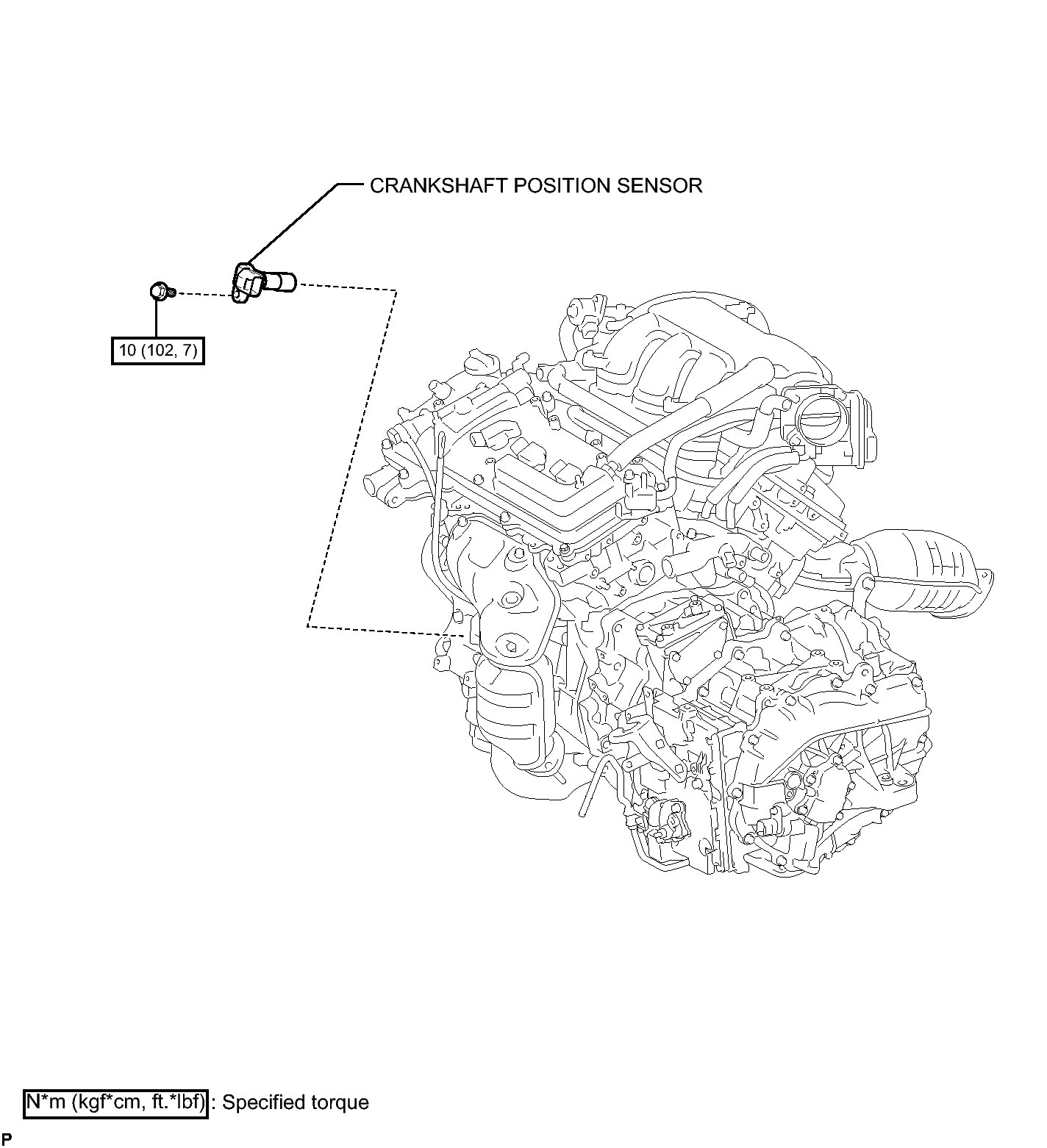

Fig 1: Crankshaft Position Sensor Replacement Components With Torque Specifications

GTY297471

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
