System Diagram

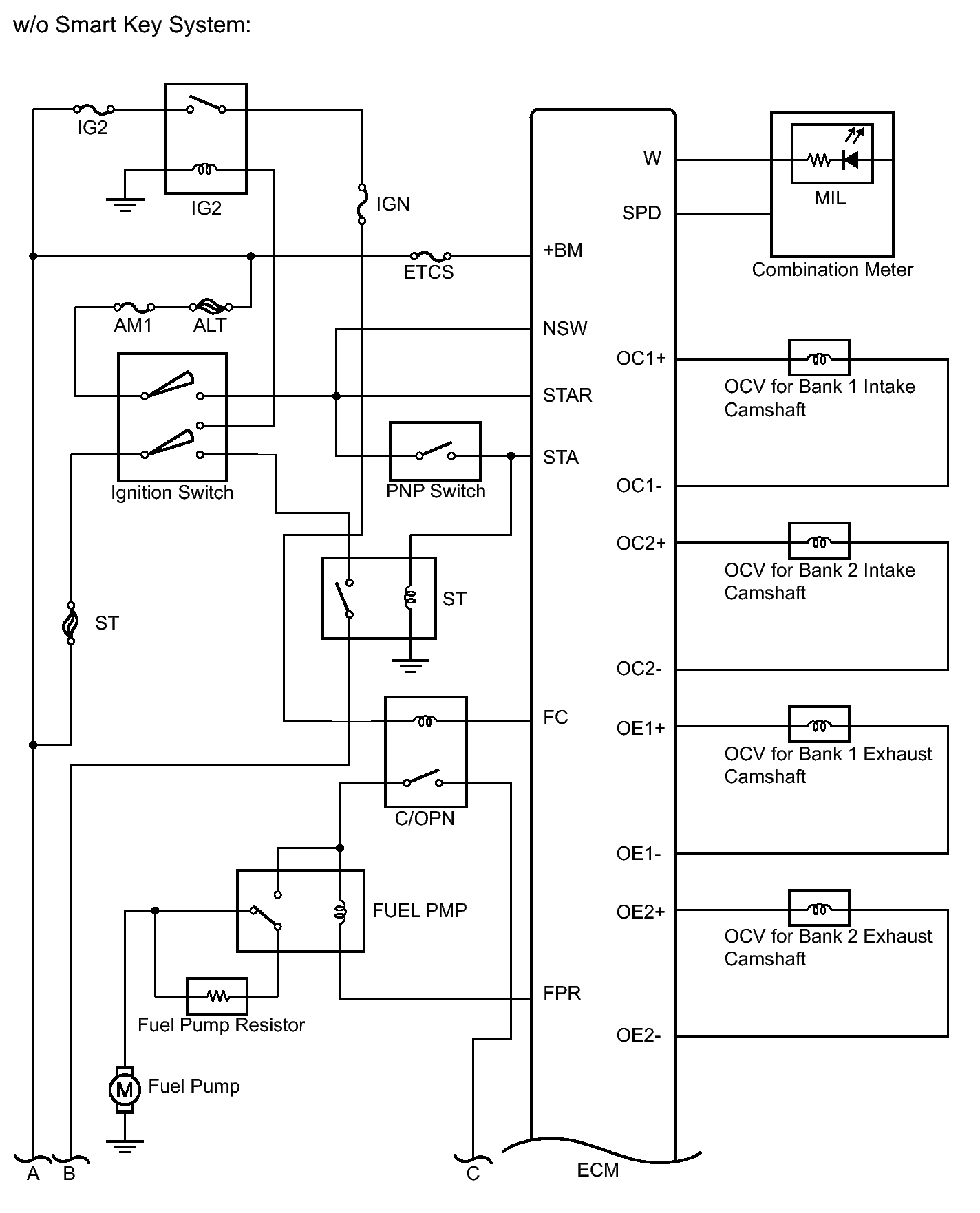

Fig 1: SFI System Diagram (1 Of 5)
GTY303727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

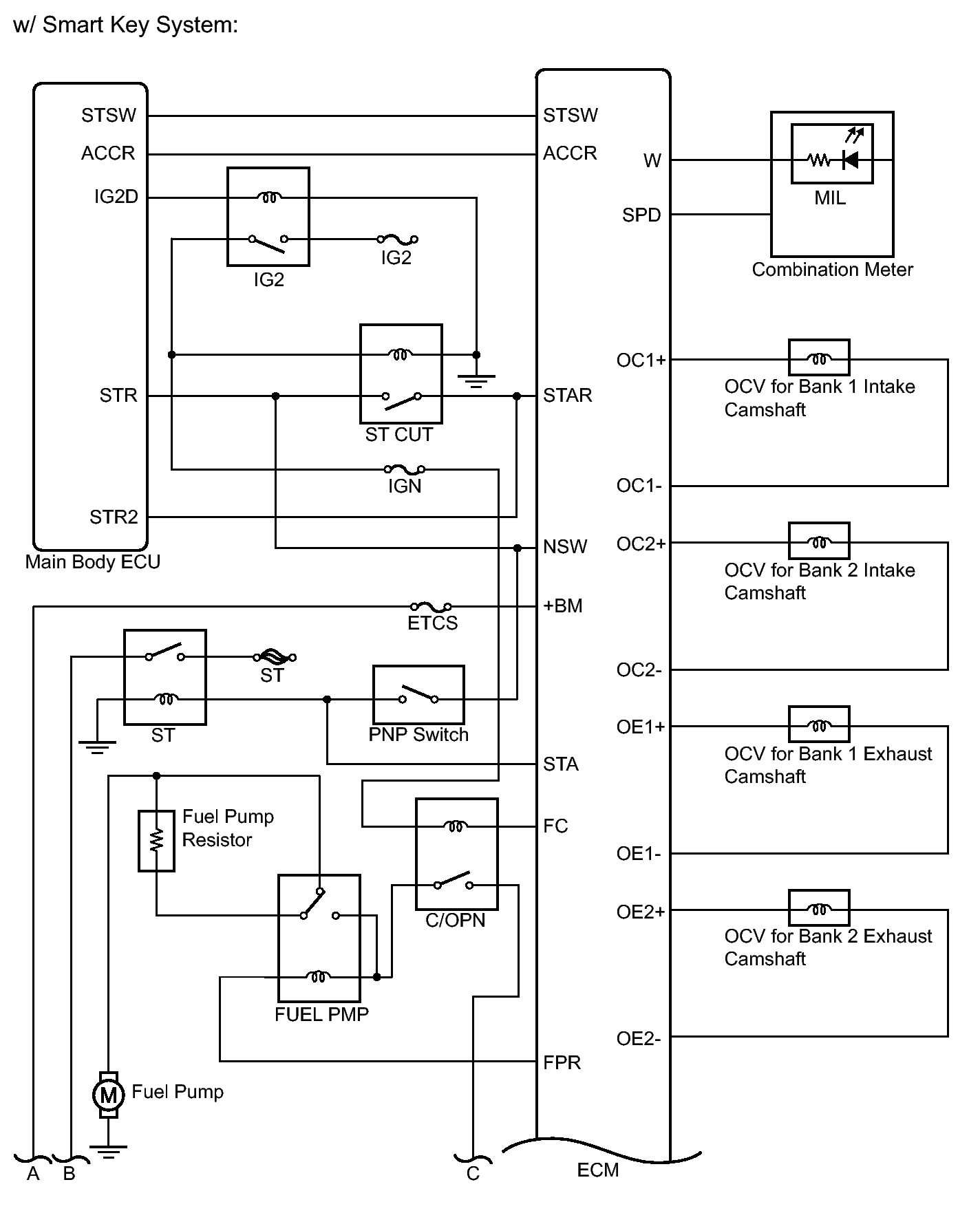

Fig 2: SFI System Diagram (2 Of 5)
GTY296241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

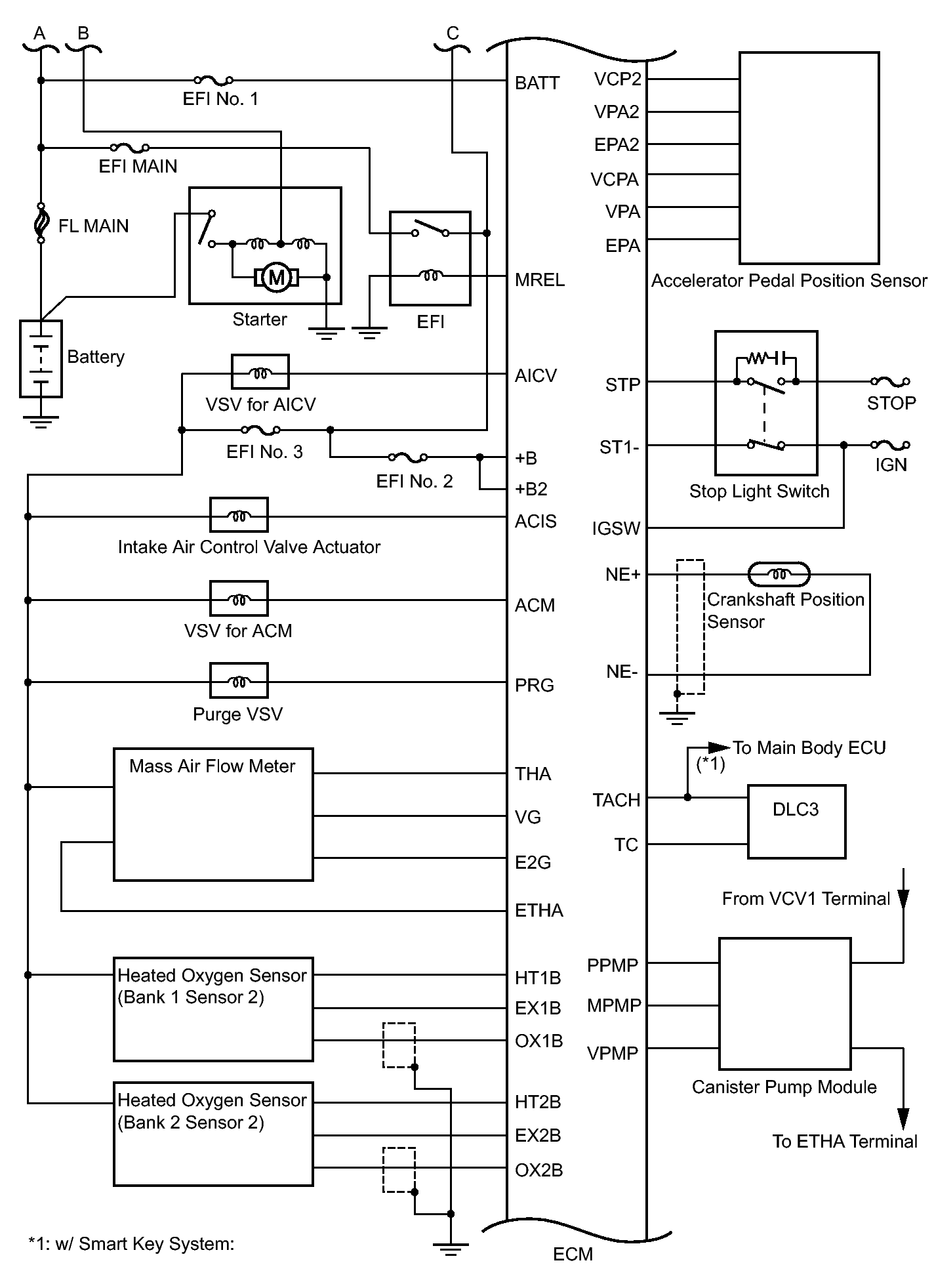

Fig 3: SFI System Diagram (3 Of 5)
GTY334727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

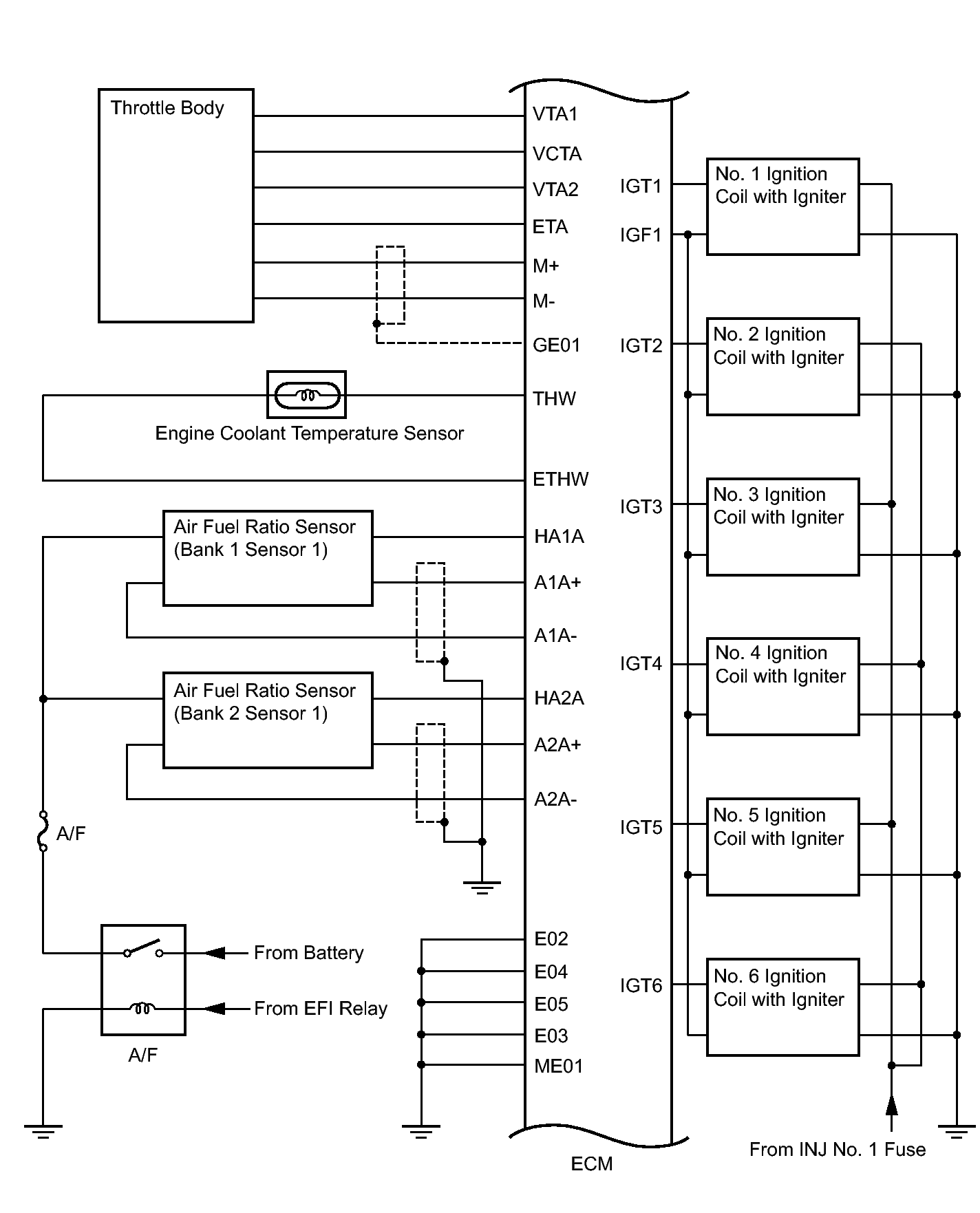

Fig 4: SFI System Diagram (4 Of 5)
GTY337938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

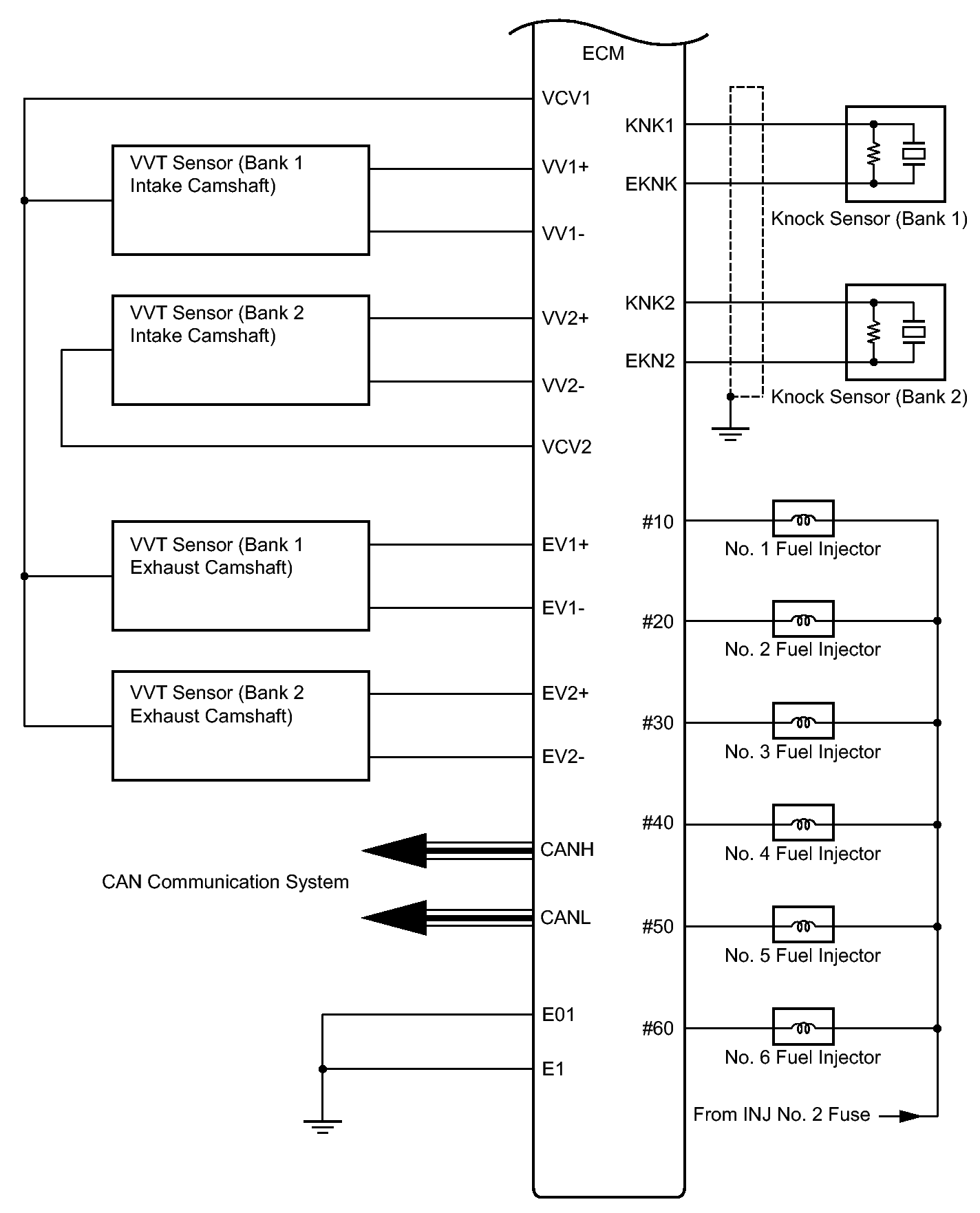

Fig 5: SFI System Diagram (5 Of 5)
GTY337758Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
