Throttle Body: Components: Illustration

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (1 Of 3)
GTY195222Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002


Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (2 Of 3)
GTY306985Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

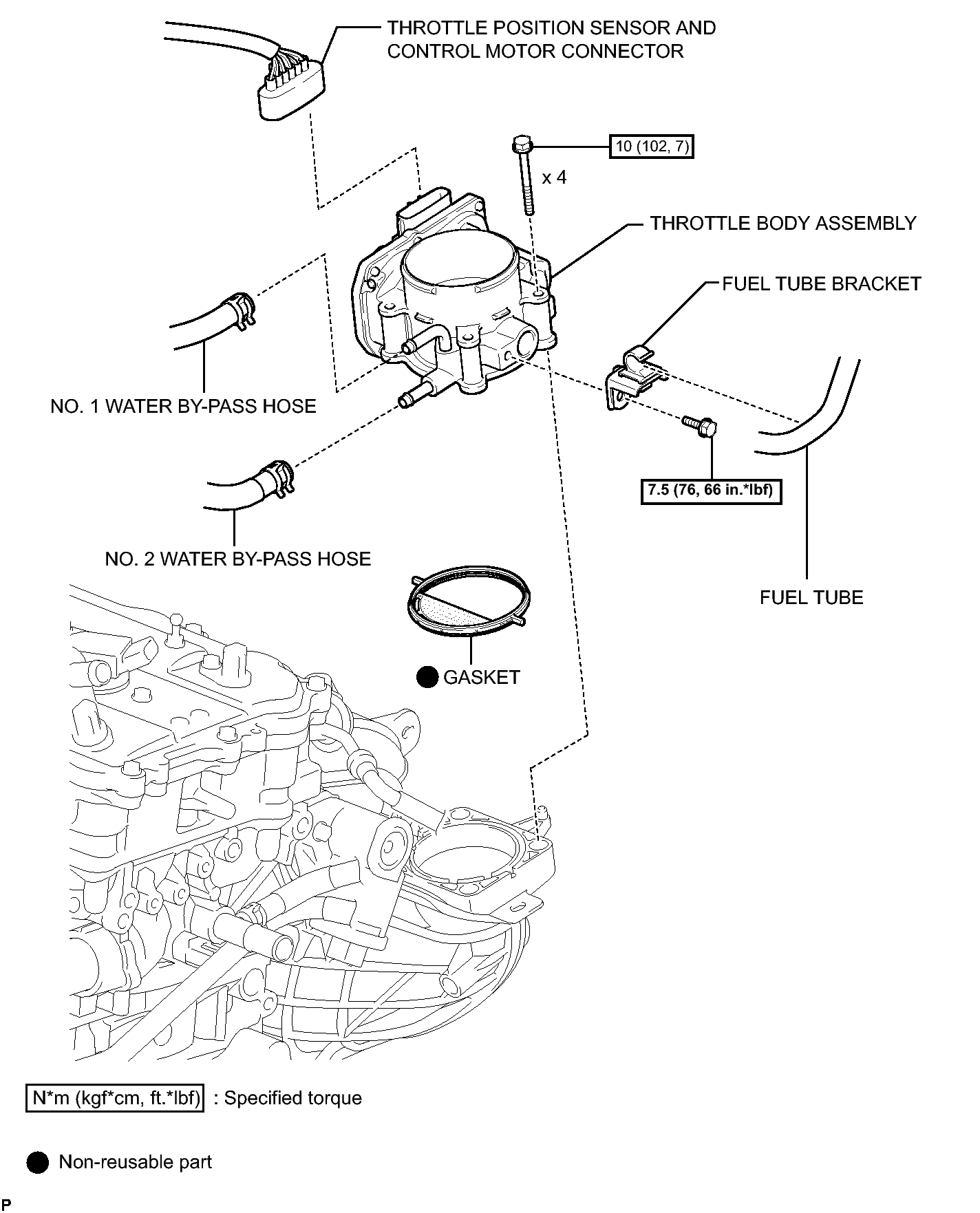

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (3 Of 3)
GTY189923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
