Heated Oxygen Sensor: Components: Illustration

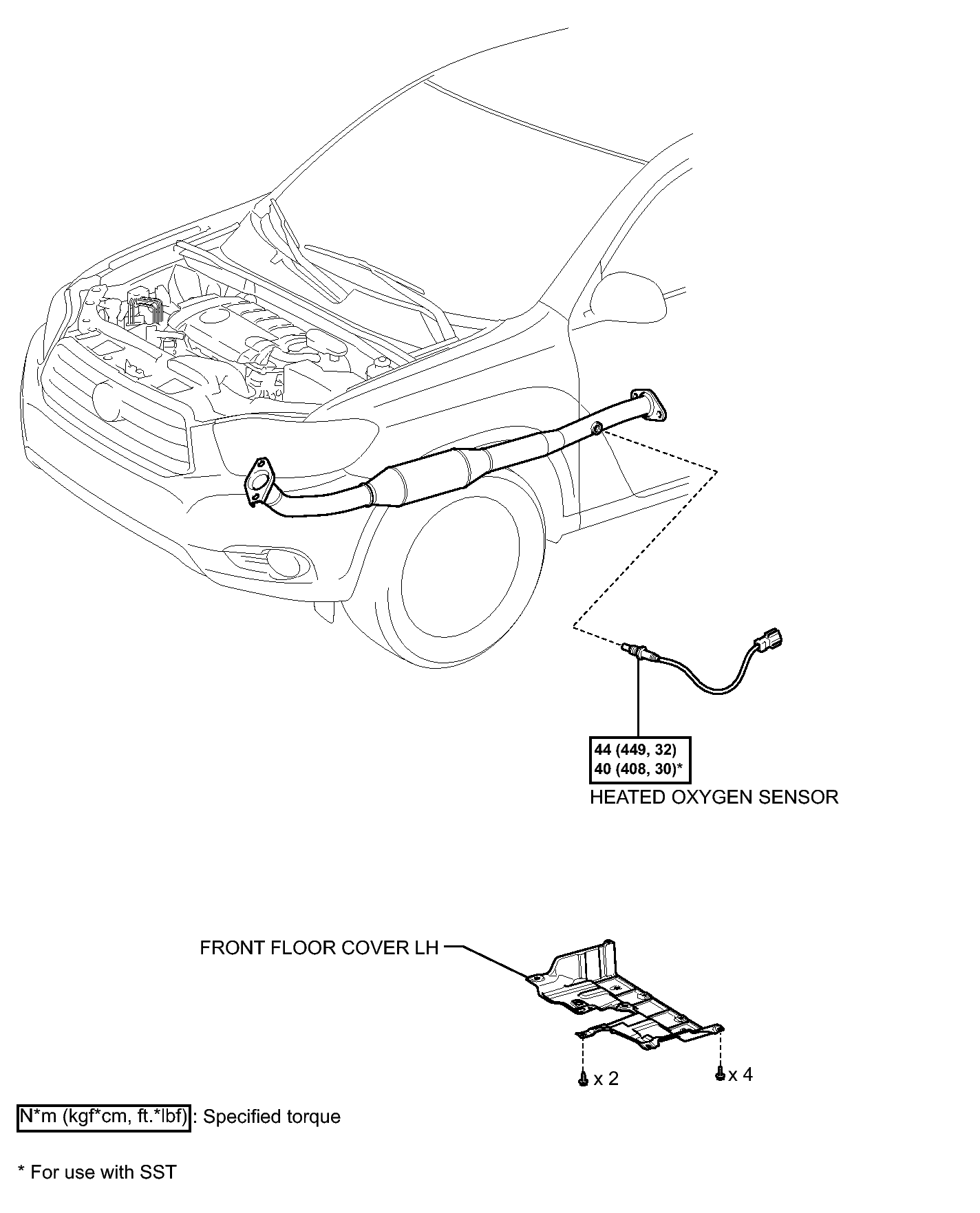

Fig 1: Identifying Heated Oxygen Sensor Replacement Components With Torque Specifications

GTY195346

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
