Camshaft Position Sensor: Components: Illustration

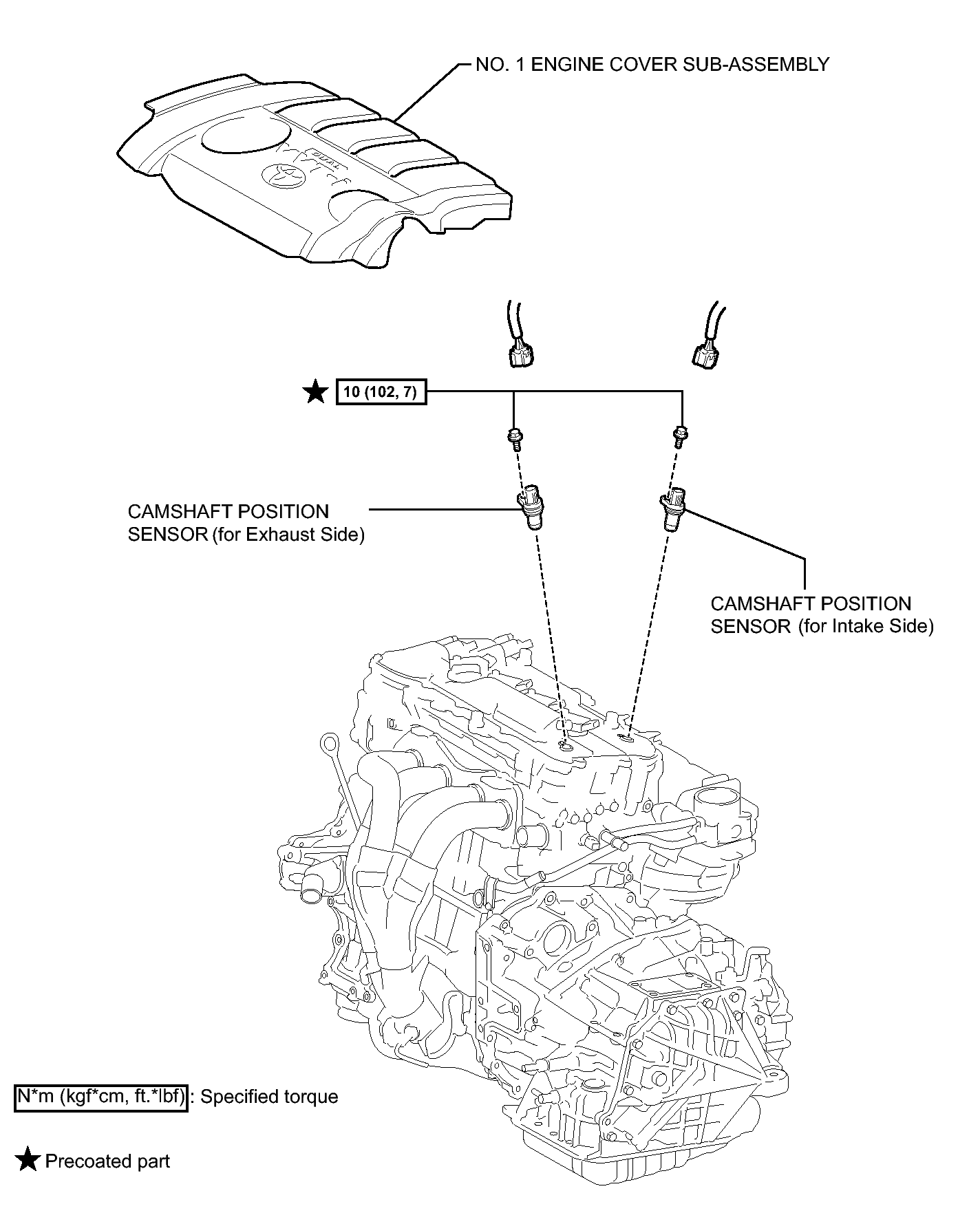

Fig 1: Identifying Camshaft Position Sensor Replacement Components With Torque Specifications

GTY195341

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
