Home >> Toyota >> 2012 >> FJ Cruiser RWD >> Repair and Diagnosis >> Suspension >> Wheel Alignment >> Suspension System (Service Information) >> Rear Lateral Control Rod >> Components >> Illustration

Rear Lateral Control Rod: Components: Illustration

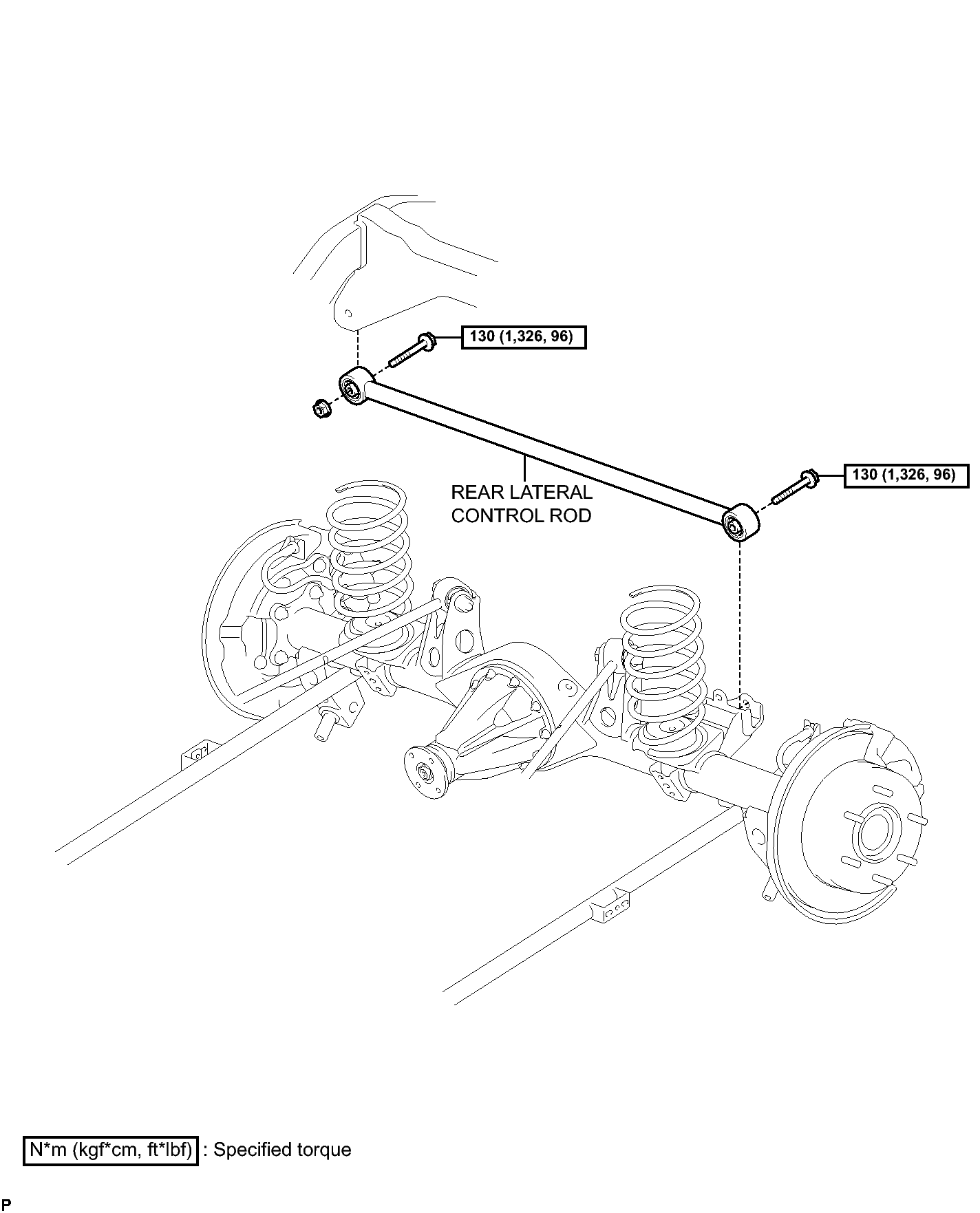

Fig 1: Identifying Rear Lateral Control Rod Replacement Components With Torque Specifications

GTY201905

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
