Ground Point: Notes

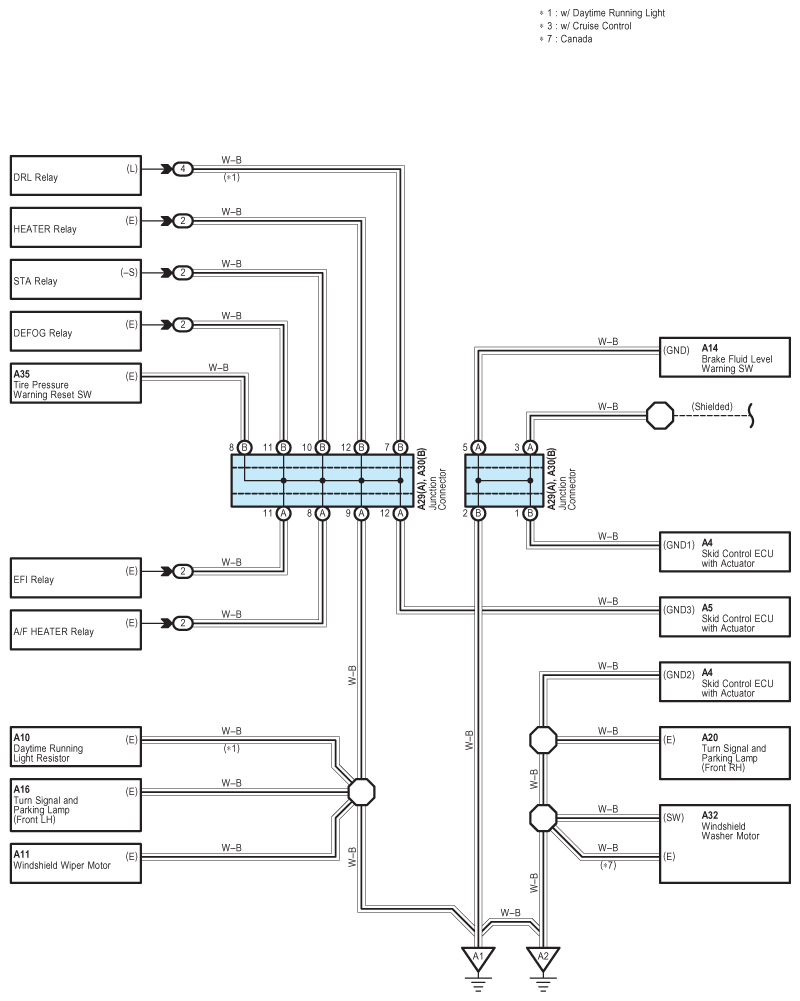

Fig 1: Ground Point System Wiring Diagram (1 Of 5)
G08843666Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

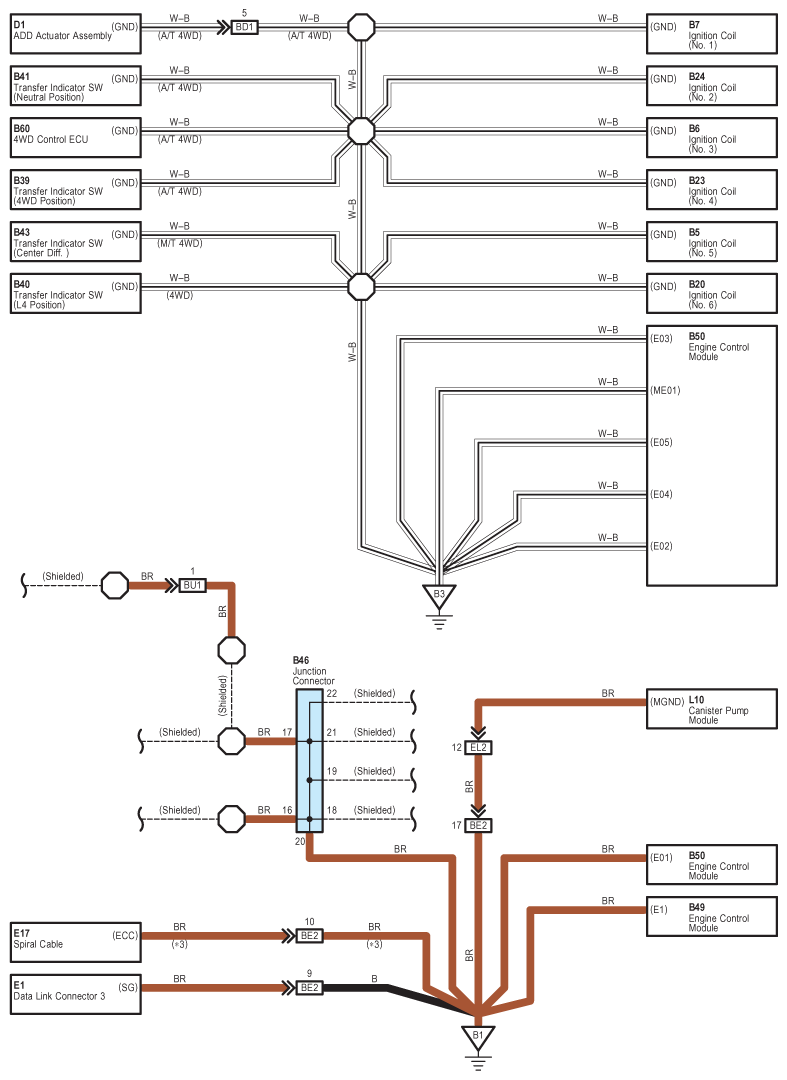

Fig 2: Ground Point System Wiring Diagram (2 Of 5)
G08843667Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

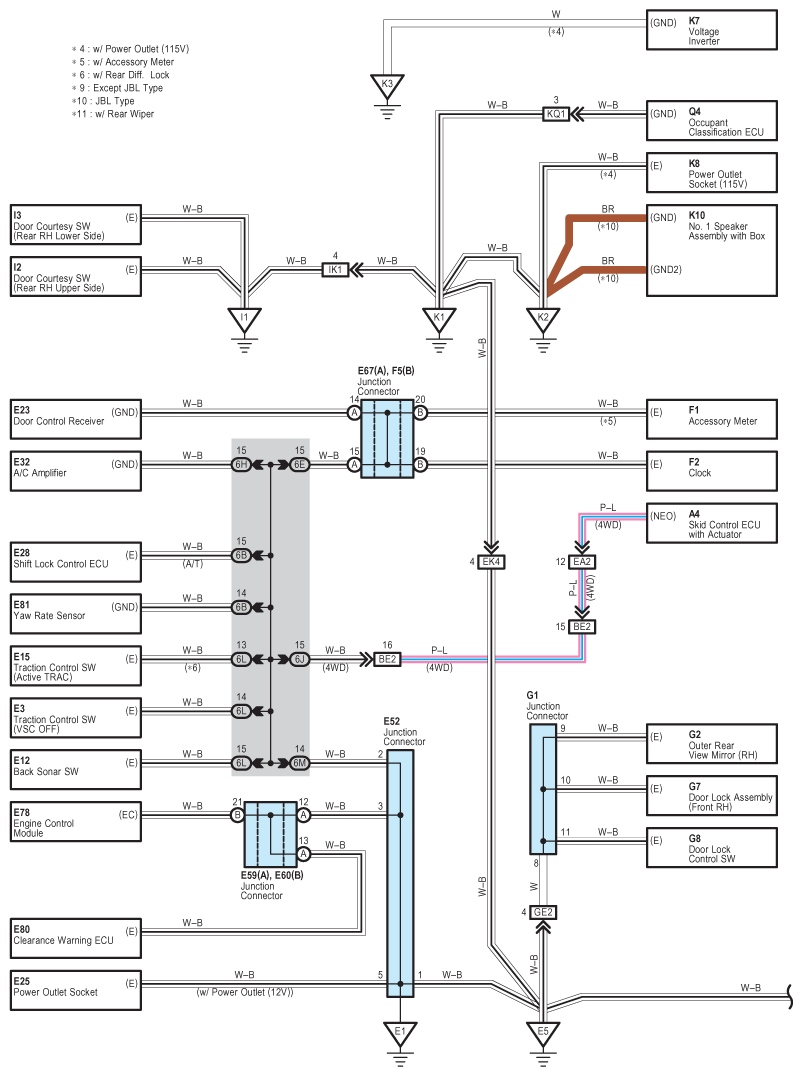

Fig 3: Ground Point System Wiring Diagram (3 Of 5)
G08843668Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

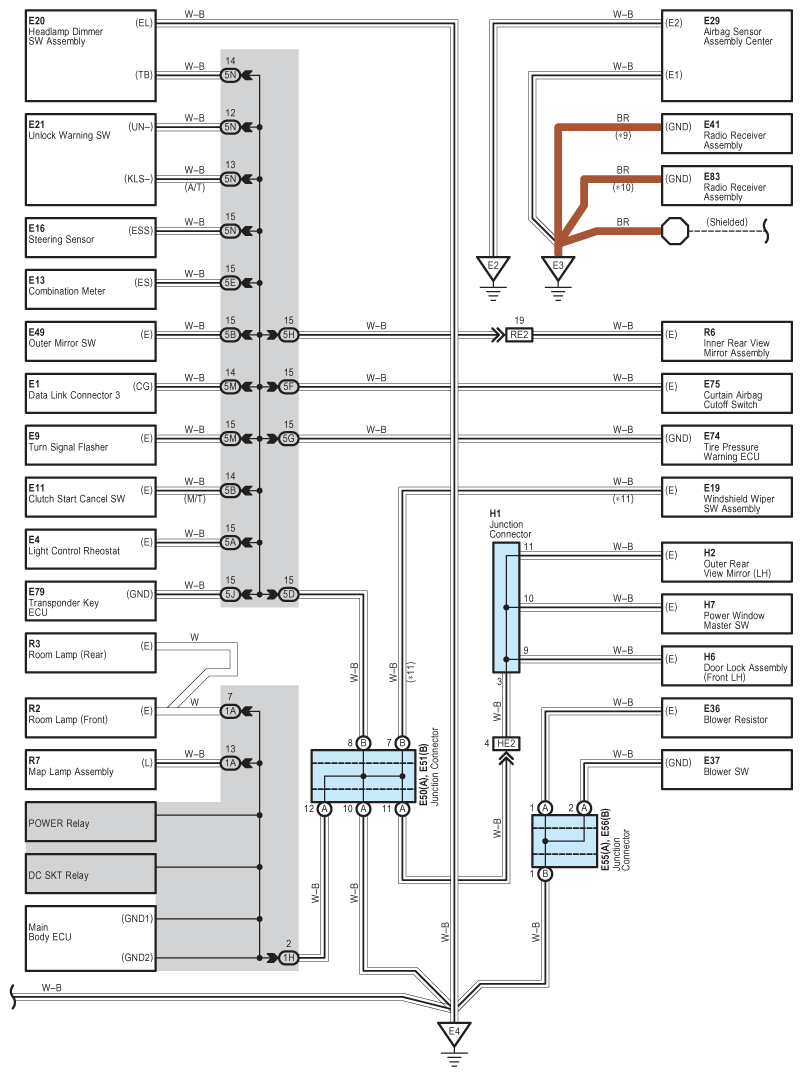

Fig 4: Ground Point System Wiring Diagram (4 Of 5)
G08843669Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

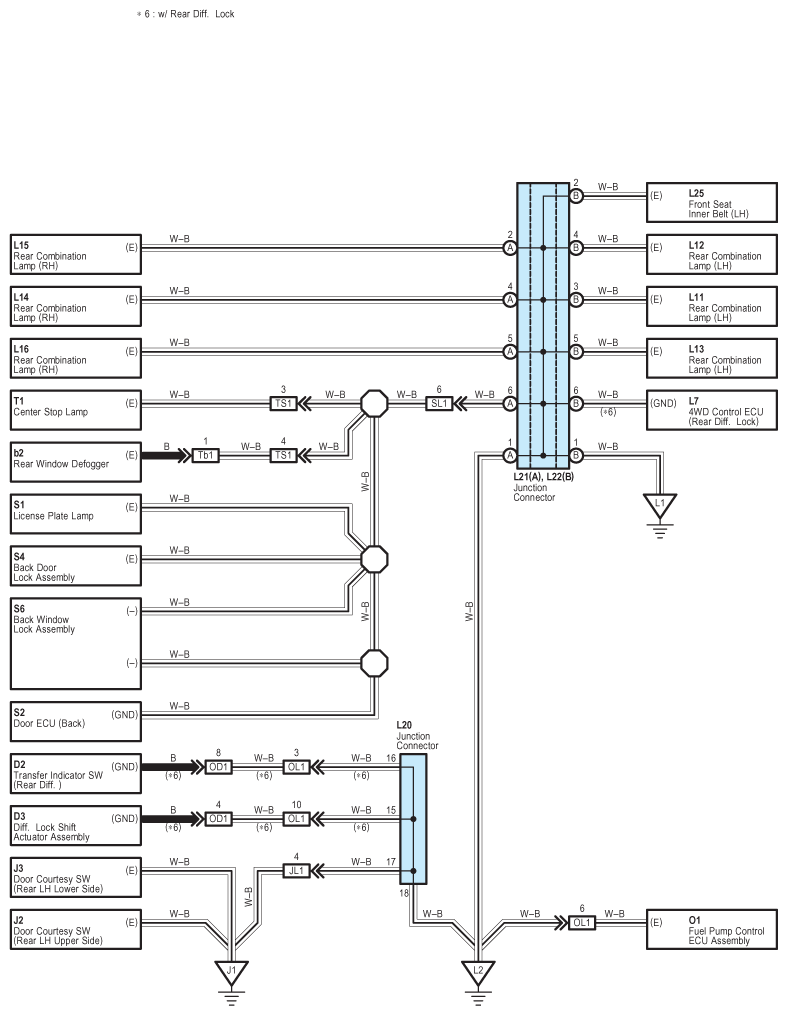

Fig 5: Ground Point System Wiring Diagram (5 Of 5)
G08843670Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
