Front Passenger Airbag Assembly: Components: Illustration

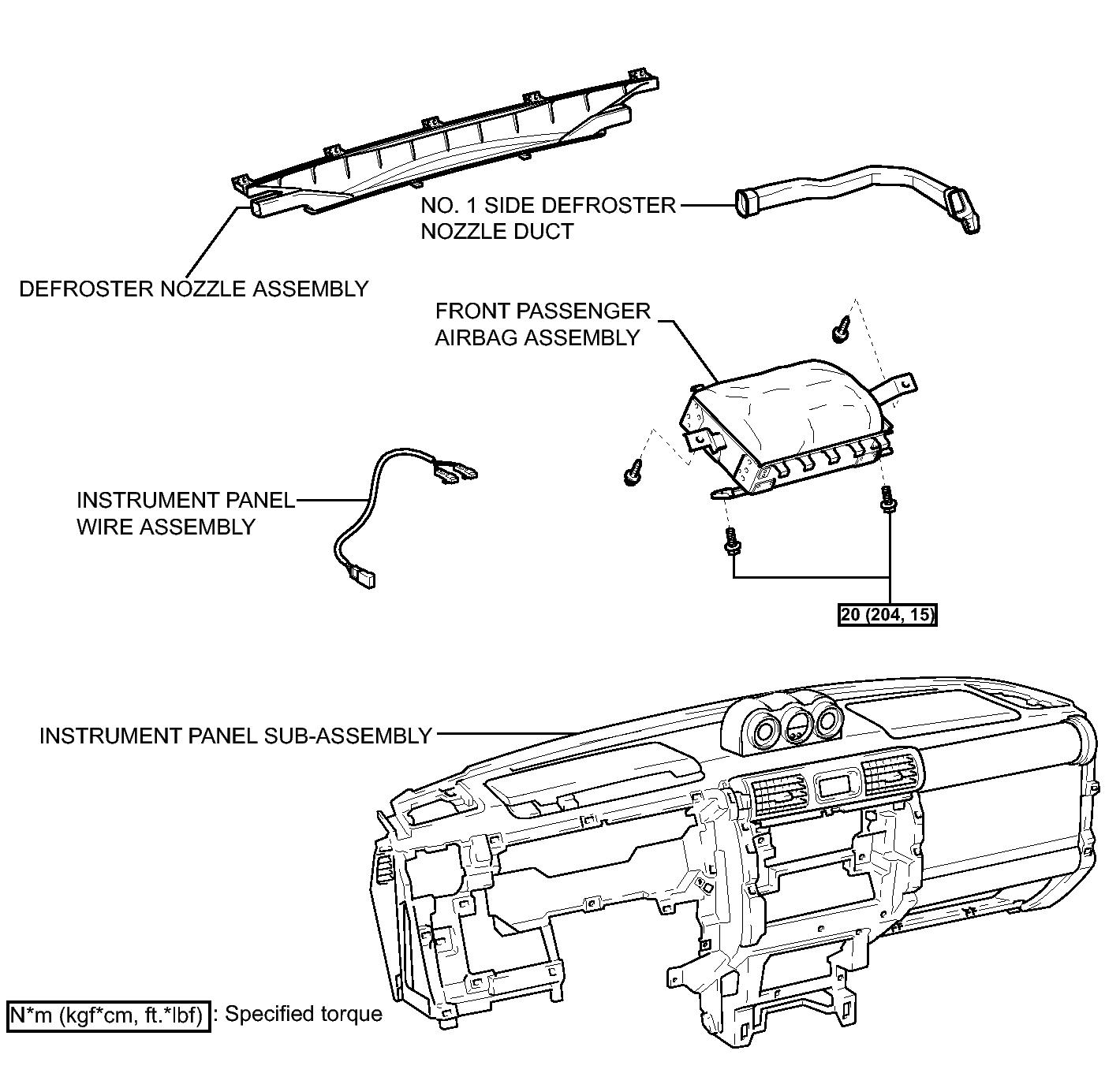

Fig 1: Identifying Front Passenger Airbag Assembly Replacement Components With Torque Specifications
GTY201549Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
