Fuel Pump: Components: Illustration

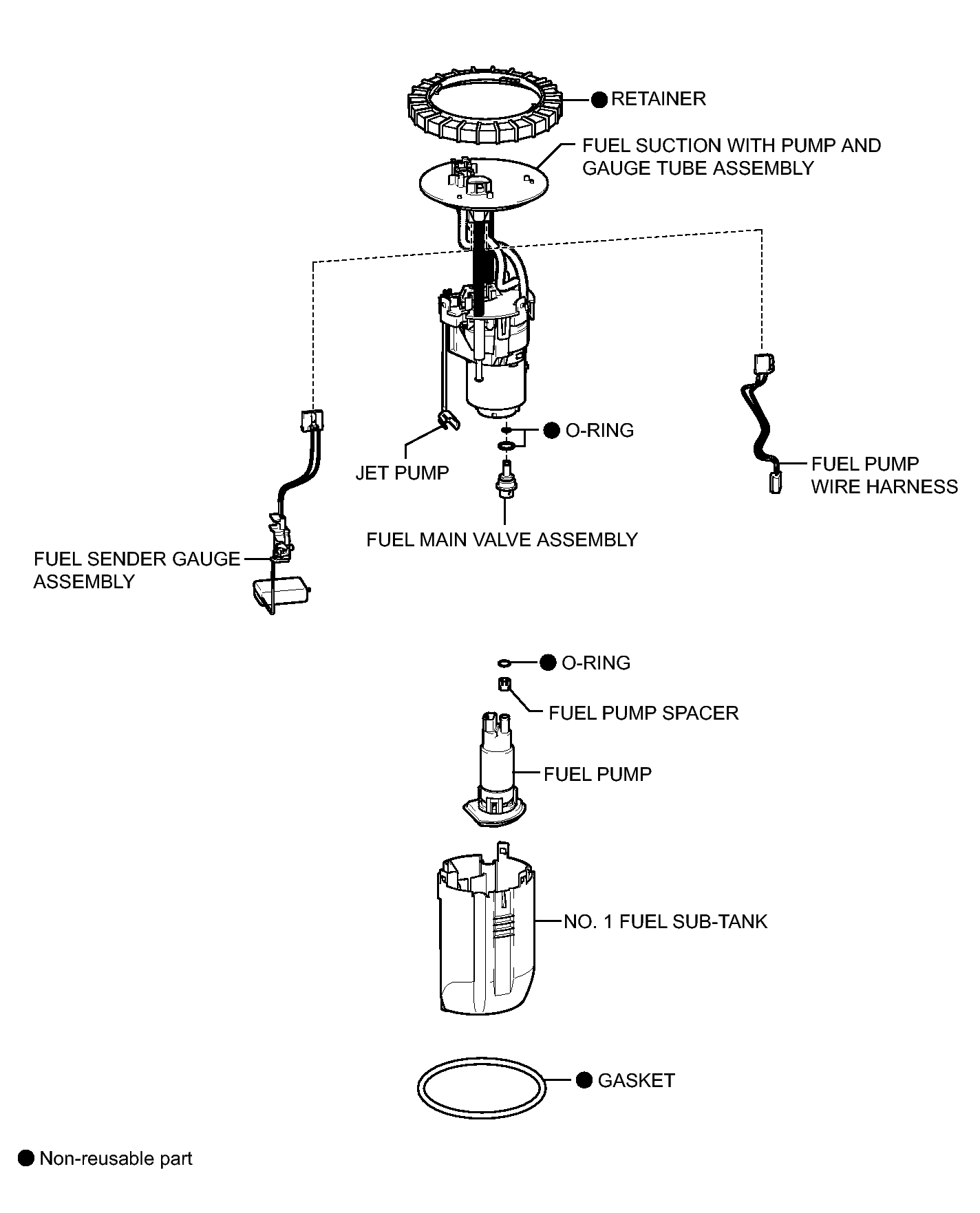

Fig 1: Exploded View Of Fuel Pump Replacement Components

GTY309266

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
