Rear Wiper and Washer: Notes

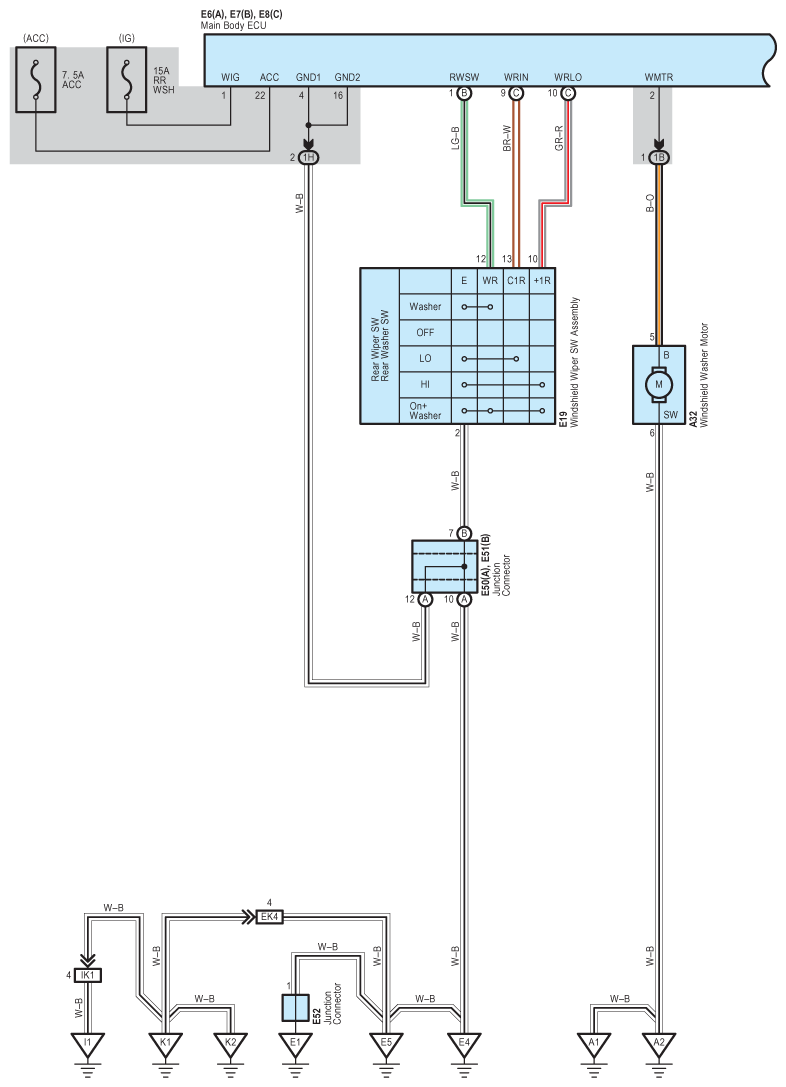

Fig 1: Rear Wiper And Washer System Wiring Diagram (1 Of 3)
G08843578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

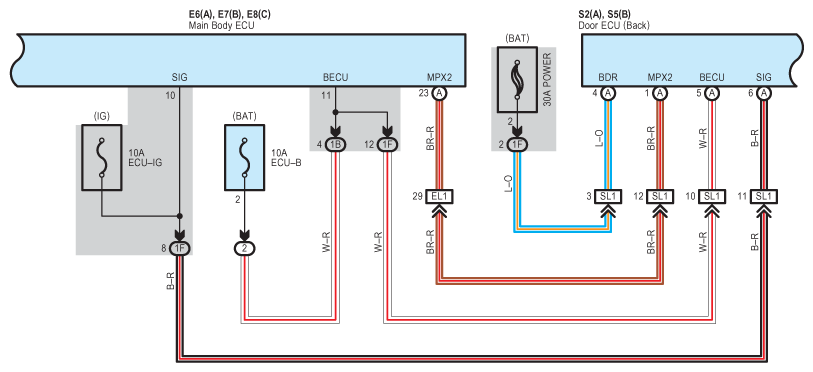

Fig 2: Rear Wiper And Washer System Wiring Diagram (2 Of 3)
G08843579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

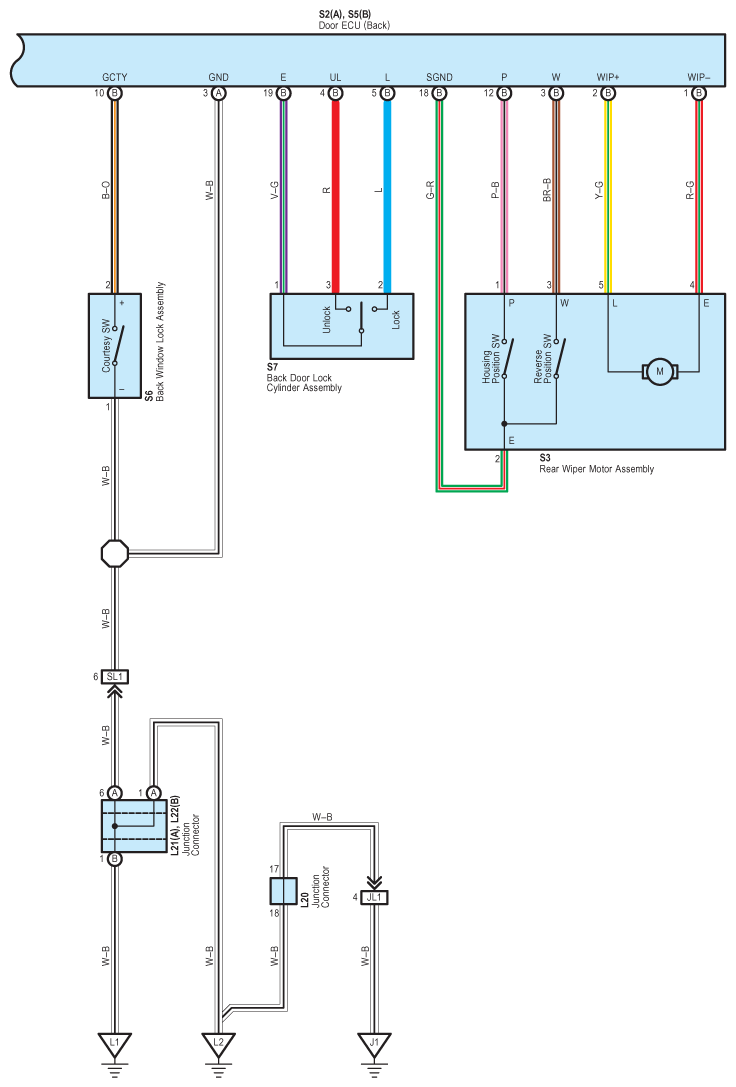

Fig 3: Rear Wiper And Washer System Wiring Diagram (3 Of 3)
G08843580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
