Parking Assist (Intuitive Parking Assist): Notes

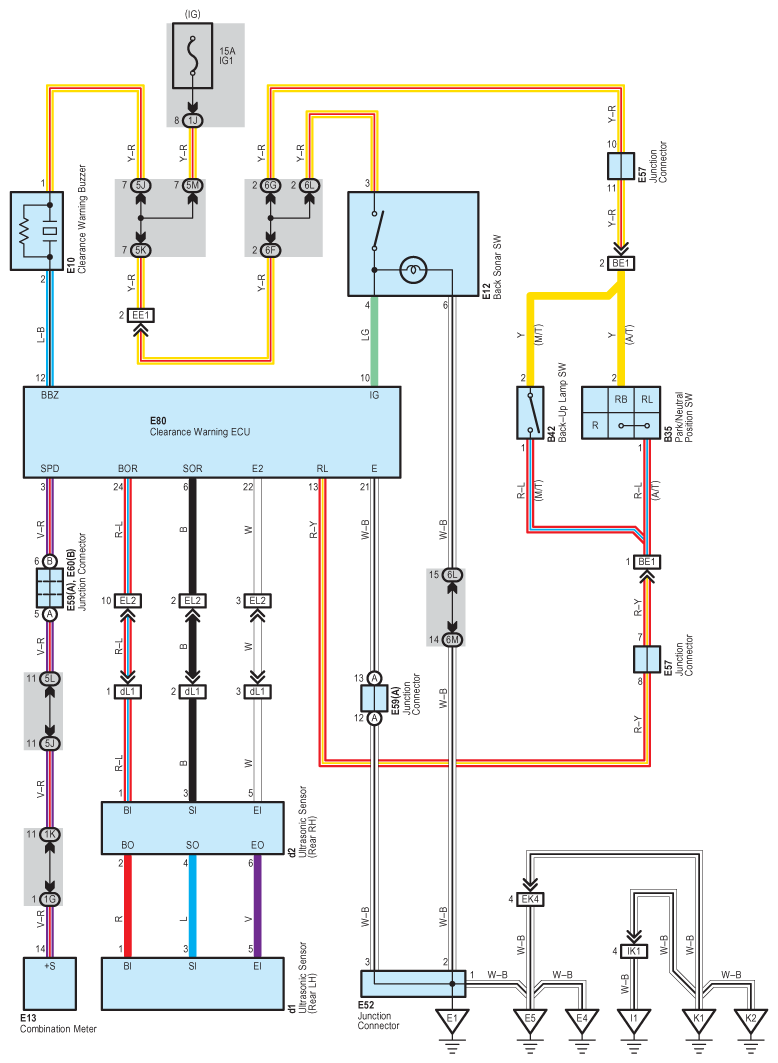

Fig 1: Parking Assist (Intuitive Parking Assist) System Wiring Diagram

G08843641

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
