Front Airbag Sensor: Components: Illustration

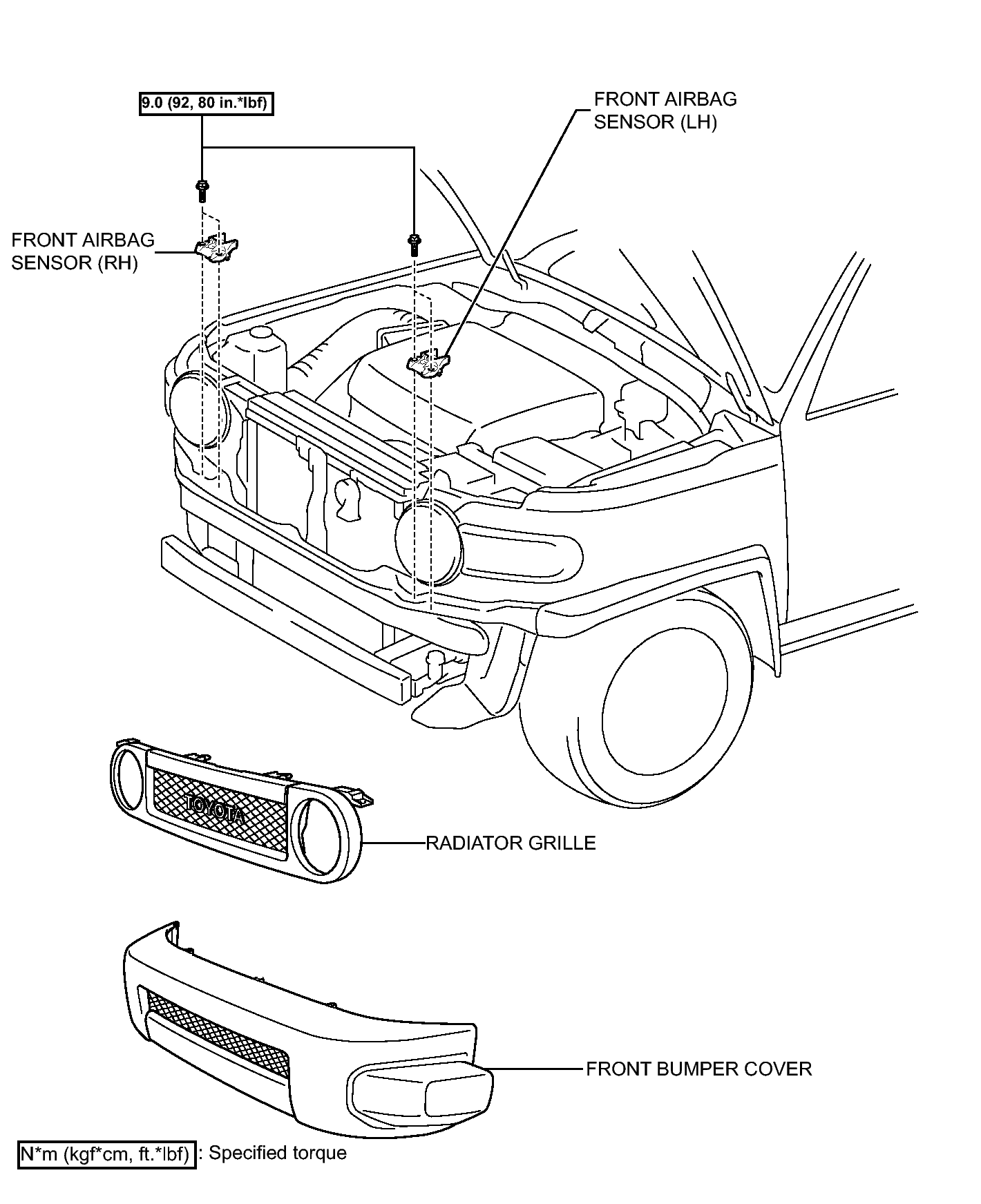

Fig 1: Identifying Front Airbag Sensor Replacement Components With Torque Specifications

GTY201552

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
