Fuel Tank: Components: Illustration

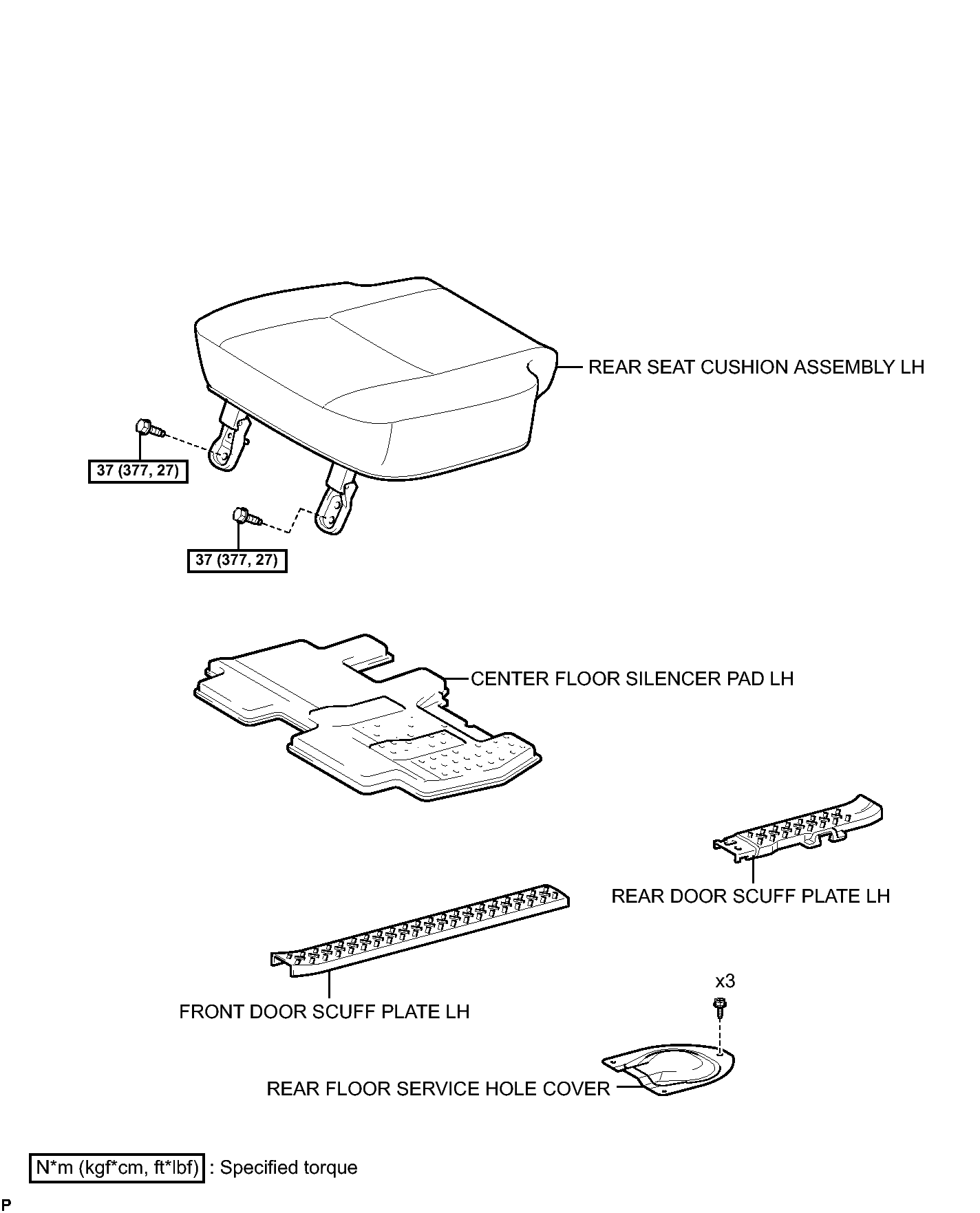

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (1 Of 4)
GTY194042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

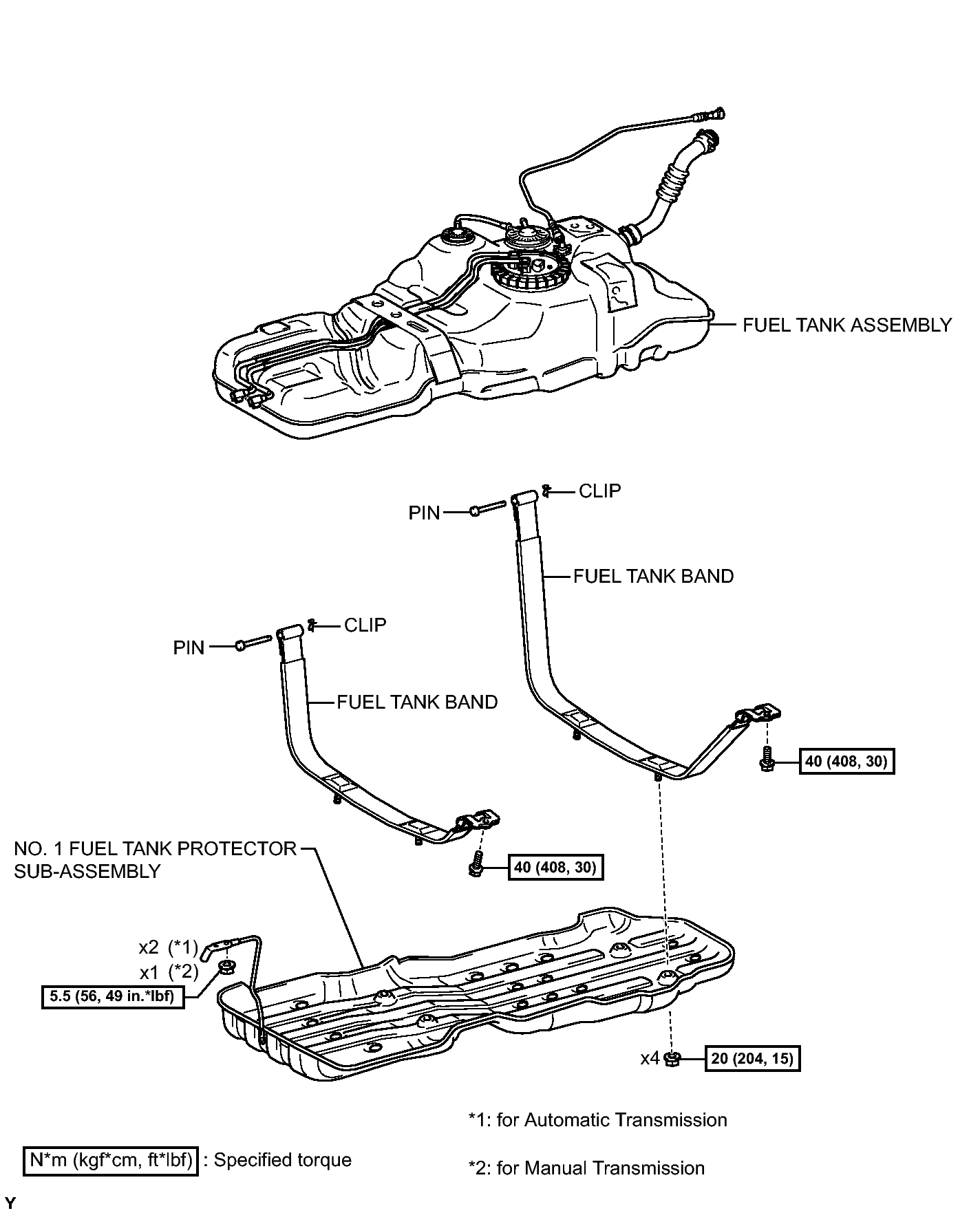

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (2 Of 4)
GTY179602Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

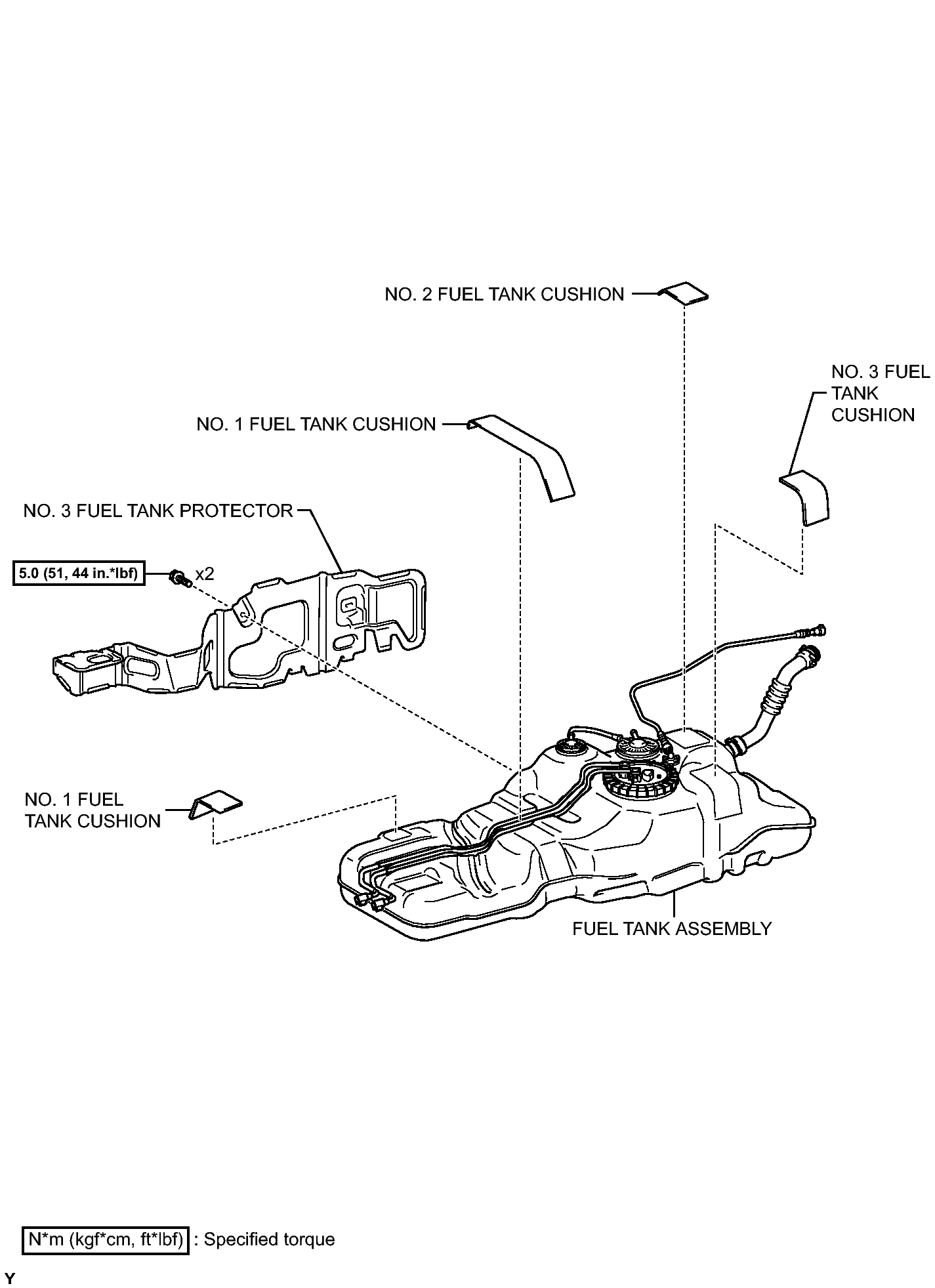

Fig 1: Fuel Tank Replacement Components With Torque Specifications (3 Of 4)
GTY192483Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

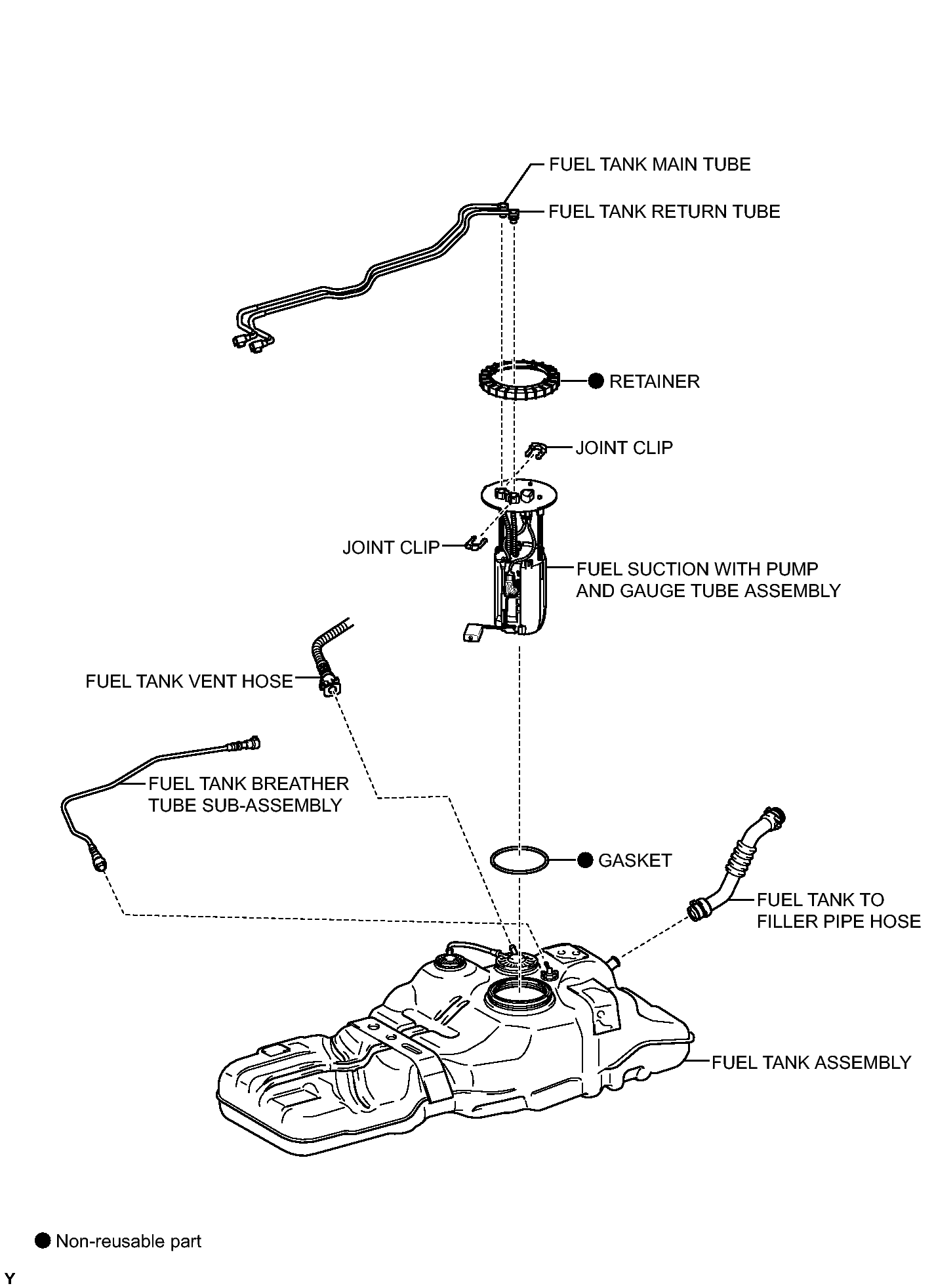

Fig 1: Identifying Fuel Tank Replacement Components With Torque Specifications (4 Of 4)
GTY194041Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
