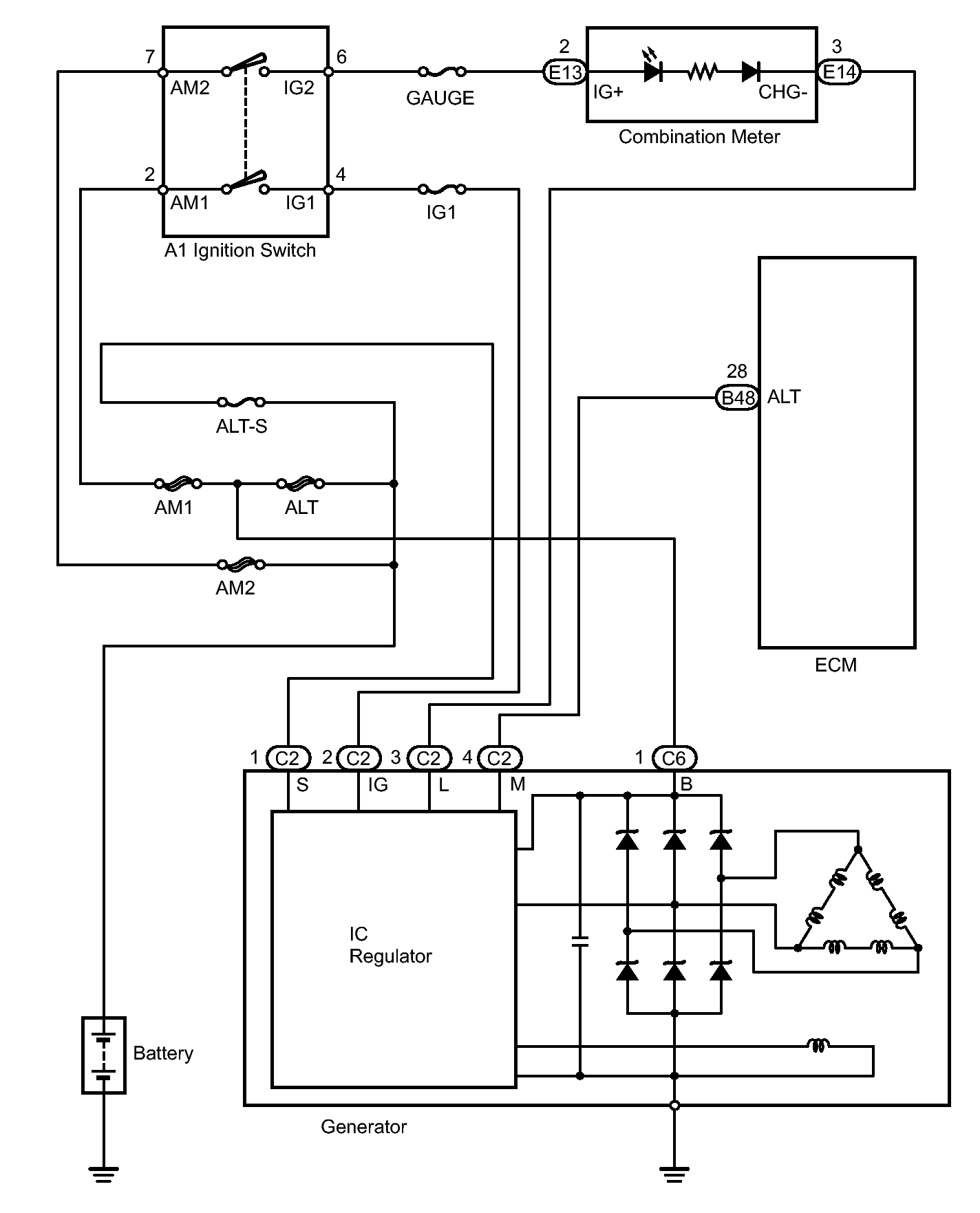

Home >> Toyota >> 2012 >> FJ Cruiser 4WD, Automatic T/Case Control >> Repair and Diagnosis >> Electrical >> Charging Systems >> Charging System (Inspection) >> Charging System >> System Diagram >> System Diagram
