Front Wiper and Washer: Notes

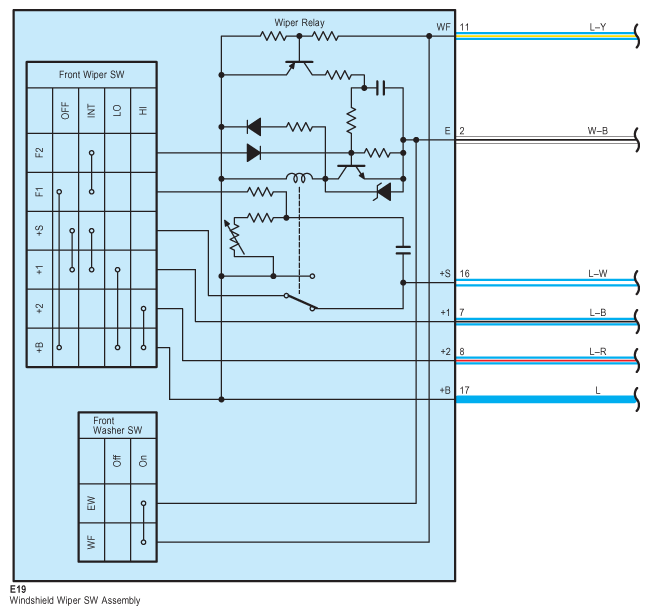

Fig 1: Front Wiper And Washer System Wiring Diagram (1 Of 2)
G08843576Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

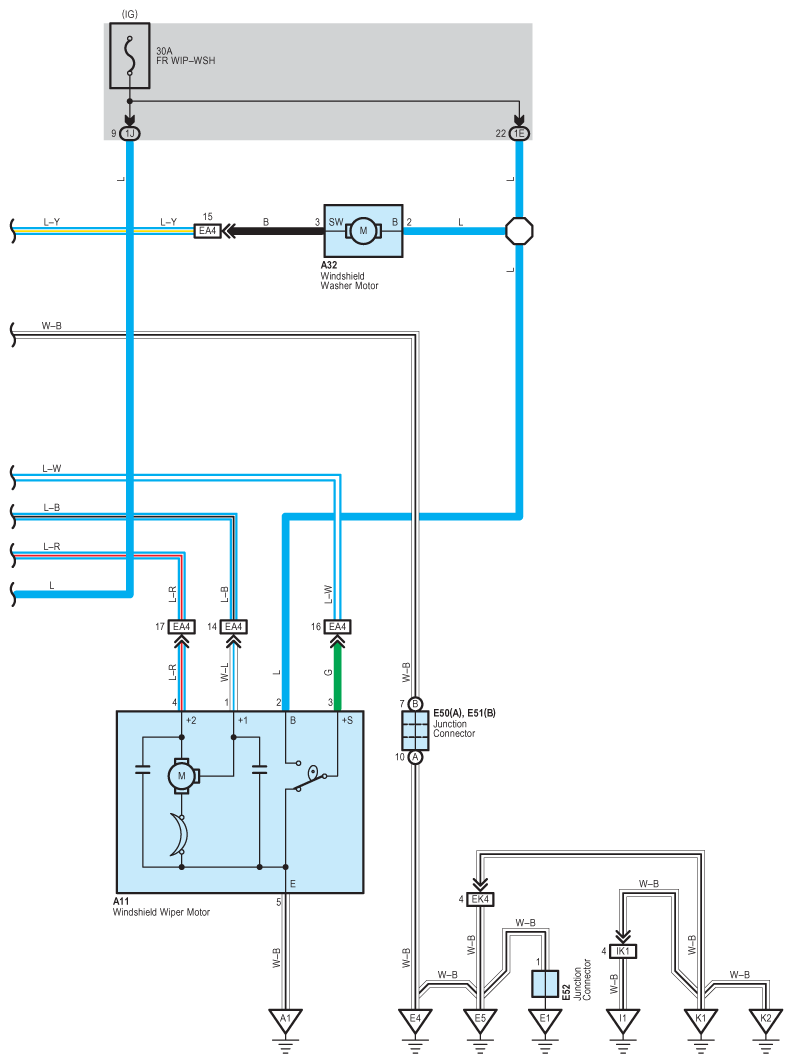

Fig 2: Front Wiper And Washer System Wiring Diagram (2 Of 2)
G08843577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
