Windshield Glass: Installation: Installation

  1. CLEAN WINDSHIELD GLASS
    Fig 1: Cleaning Outer Circumference Of Back Door Glass
    GTY165852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a scraper, remove the damaged stoppers, dam and adhesive from the windshield glass.
    2. Clean the outer circumference of the windshield glass with a non-residue solvent.
      NOTE:
      • Do not touch the windshield glass surface after cleaning it.
      • Even if using a new windshield glass, clean the windshield glass with a non-residue solvent.
  2. CLEAN VEHICLE BODY
    Fig 2: Identifying Adhesive On Vehicle Body Contact Surface
    GTY160673Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Clean and shape the contact surface of the vehicle body.
      1. Using a knife, cut away any rough adhesive on the contact surface of the vehicle body to ensure the appropriate surface shape.
        NOTE:

        Do not damage the vehicle body.

        HINT:

        Leave as much adhesive on the vehicle body as possible.

      2. Clean the contact surface of the vehicle body with a shop rag or piece of cloth saturated with cleaner.

        HINT:

        Clean the vehicle body even if all the adhesive has been removed.

  3. INSTALL WINDSHIELD GLASS STOPPER NO. 1
    Fig 3: Identifying Stoppers On Vehicle Body
    GTY187204Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Install 2 new stoppers onto the vehicle body, as shown in the illustration.
  4. INSTALL WINDSHIELD GLASS STOPPER NO. 2
    Fig 4: Identifying Windshield Glass Area Measurement
    GTY197439Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Apply Primer G to the installation parts of the stoppers.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover Primer G.
      • Do not apply too much Primer G.
    2. Install 2 new stoppers onto the windshield glass, as shown in the illustration.

      Specification

      Area Measurement
      A 40 mm (1.57 in.)
      B 7.8 mm (0.307 in.)
      C 12.5 mm (0.482 in.)
  5. INSTALL WINDSHIELD OUTSIDE MOLDING
    Fig 5: Identifying Molding Onto Windshield Glass
    GTY197440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G.
      NOTE:
      • Allow the primer coating to dry for 3 minutes or more.
      • Do not coat the adhesive with Primer G.
      • Throw away any leftover Primer G.
    2. Install the molding onto the windshield glass, as shown in the illustration.
  6. INSTALL WINDOW GLASS ADHESIVE DAM
    1. Apply Primer G to the installation parts of new dams.
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover Primer G.
      • Do not apply too much Primer G.
    2. Install 3 new dams by applying double-sided tape all the way around the windshield glass except where the stoppers are installed, as shown in the illustration.

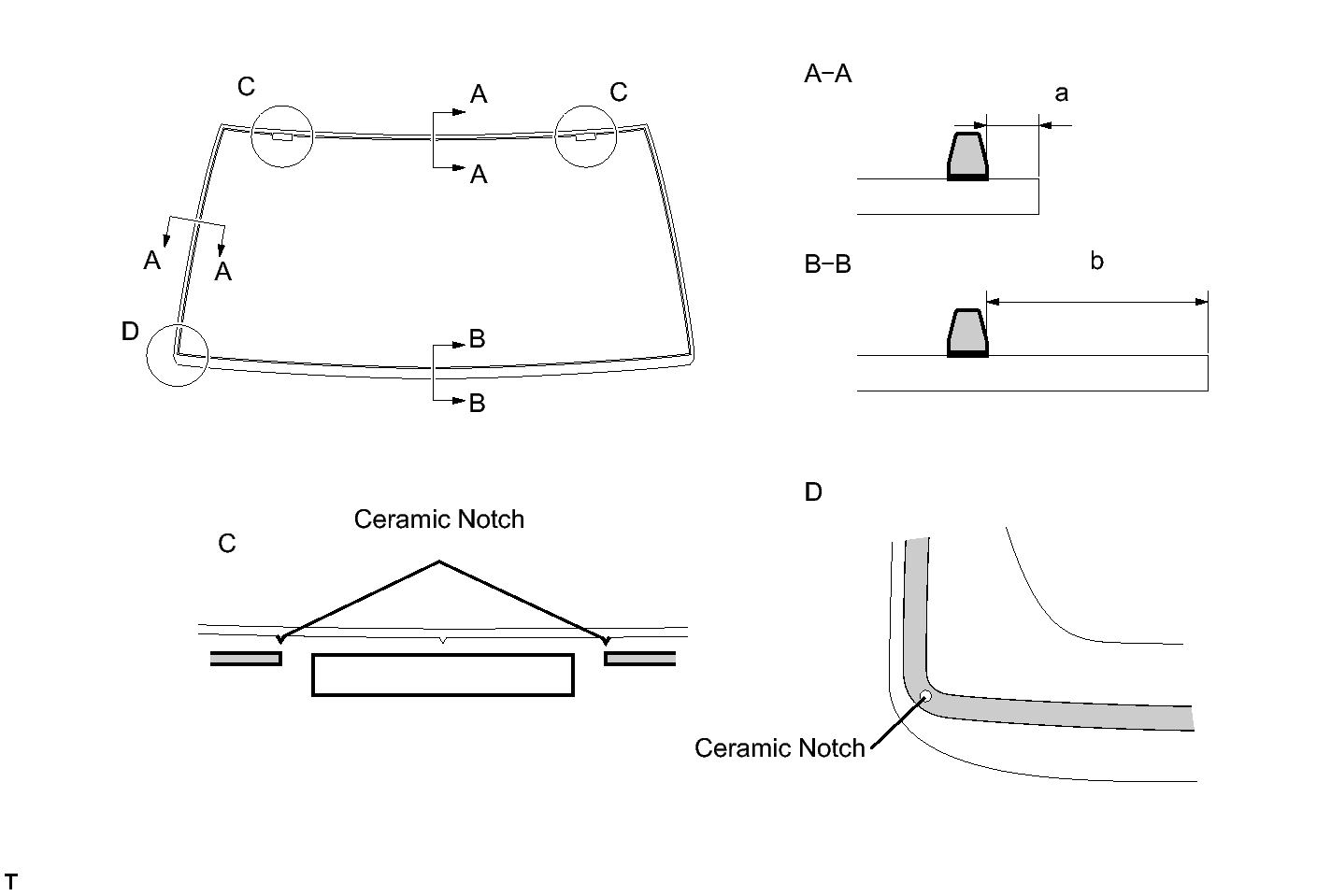

      Fig 6: Identifying Window Glass Adhesive Dam
      GTY183502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Specification

      Area Measurement
      a 7.0 mm (0.276 in.)
      b 15.8 mm (0.622 in.)
  7. INSTALL WINDSHIELD GLASS
    1. Position the windshield glass.
      Fig 7: Positioning Windshield Glass
      GTY308614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using suction cups, place the windshield glass in the correct position.
      2. Check that the entire contact surface of the windshield glass rim is perfectly even.
      3. Place matchmarks on the windshield glass and vehicle body.
        NOTE:

        Check that the stoppers are correctly attached to the vehicle body.

        HINT:

        When reusing a windshield glass, check and correct the matchmark positions.

      4. Using suction cups, remove the windshield glass.
    2. Using a brush, apply Primer M to the exposed part of the vehicle body.
      Fig 8: Applying Primer M To Exposed Part Of Vehicle Body
      GTY179045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Do not apply Primer M to the adhesive.
      • Throw away any leftover Primer M.
      • Do not apply too much Primer M.
    3. Using a brush or sponge, apply Primer G to the edge of the windshield glass and the contact surface.
      Fig 9: Applying Primer G To Edge Of Windshield Glass & Contact Surface
      GTY197441Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Specification

      Area Measurement
      a 7.8 mm (0.307 in.)
      b 7.8 mm (0.307 in.)
      c 7.0 mm (0.276 in.)
      d 8.0 mm (0.315 in.)
      NOTE:
      • Allow the primer to dry for 3 minutes or more.
      • Throw away any leftover Primer G.
      • Do not apply too much Primer G.

      HINT:

      If Primer G is applied to any areas other than those specified, wipe off the primer with a clean shop rag or piece of cloth before it dries.

    4. Apply adhesive.

      Adhesive

      Toyota Genuine Windshield Glass Adhesive or the equivalent

      1. Cut the tip off the cartridge nozzle, as shown in the illustration.
        Fig 10: Identifying Cutting Dimension Of Cartridge Nozzle Tip
        GTY160532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        After cutting off the tip, use all adhesive within the times indicated in the table below.

        Usage time frame

        Temperature Usage Time Frame
        35°C (95°F) 15 minutes
        20°C (68°F) 1 hour 40 minutes
        5°C (41°F) 8 hours
      2. Load the sealer gun with the cartridge.
      3. Apply adhesive to the windshield glass, as shown in the illustration.

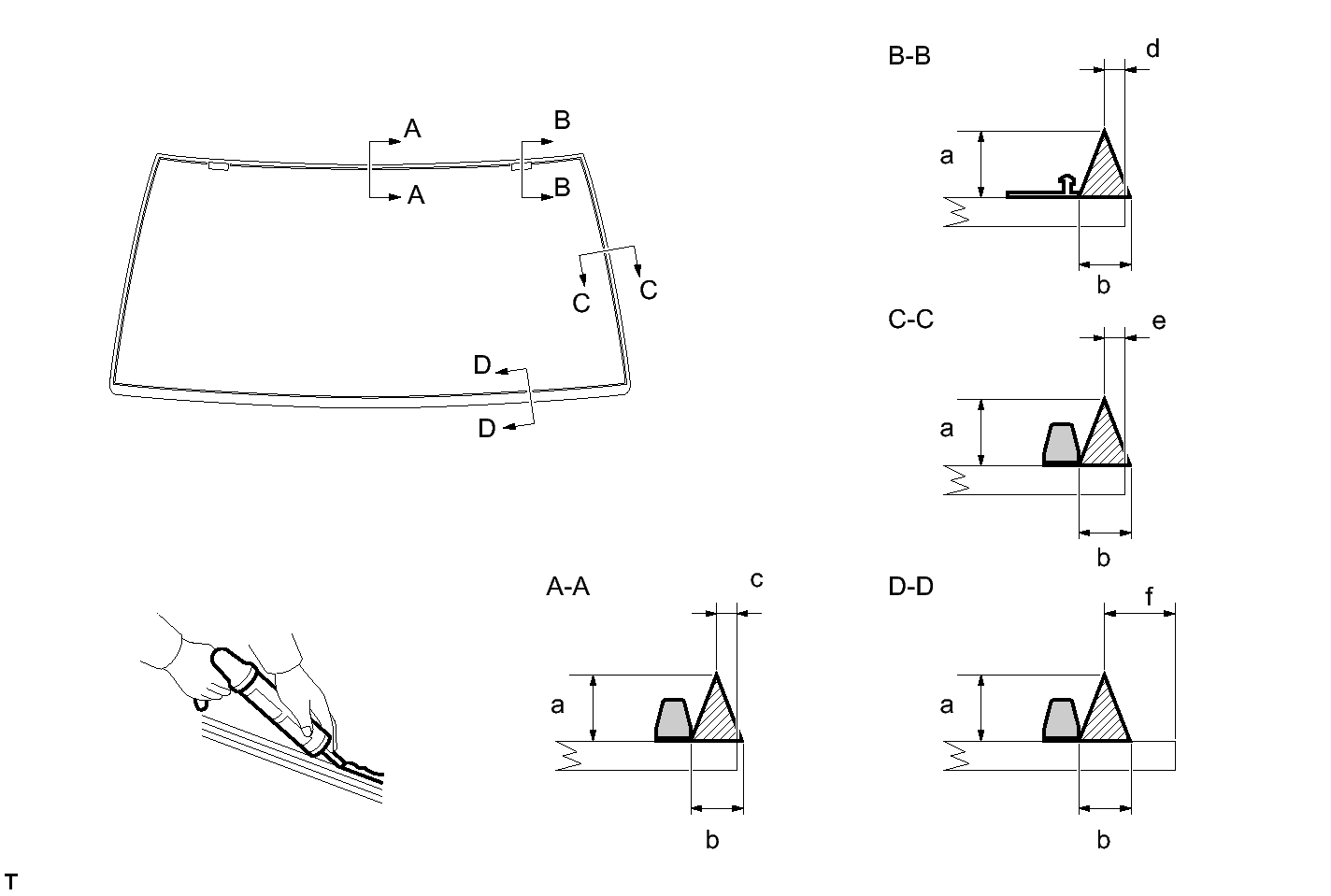

        Fig 11: Applying Adhesive To Windshield Glass
        GTY168601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        Specification

        Area Measurement
        a 12 mm (0.472 in.)
        b 8 mm (0.315 in.)
        c 3 mm (0.118 in.)
        d 3 mm (0.118 in.)
        e 3 mm (0.118 in.)
        f 11.8 mm (0.465 in.)
    5. Install the windshield glass onto the vehicle body.
      Fig 12: Positioning Windshield Glass
      GTY308614Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using suction cups, position the windshield glass so that the matchmarks are aligned. Gently press it in along the rim.
        NOTE:
        • Allow the primer to dry for 3 minutes or more.
        • Check that the stoppers are attached to the vehicle body correctly.
        • Check that there is a small gap between the vehicle body and the windshield glass.
      2. Gently press the front surface of the windshield glass to ensure that the windshield glass is securely fitted to the vehicle body.
      3. Using a scraper, remove any excessive or protruding adhesive.
        Fig 13: Removing Excessive Or Protruding Adhesive
        GTY183957Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        Apply adhesive to the windshield glass rim.

        NOTE:

        Do not drive the vehicle within the time indicated in the table below.

        Minimum time

        Temperature Minimum time prior to driving vehicle
        35°C (95°F) 1 hour 30 minutes
        20°C (68°F) 5 hours
        5°C (41°F) 24 hours
  8. INSTALL WINDSHIELD OUTSIDE LOWER MOLDING
    Fig 14: Identifying Claws For Windshield Outside Lower Molding
    GTY197437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Engage the 6 claws and install the windshield outside lower molding.
  9. CHECK FOR LEAKAGE AND REPAIR
    1. Conduct a leak test by applying water to the adhesive portions after the adhesive has completely hardened.
    2. Seal any leakage with auto glass sealer.
  10. INSTALL ROOF SIDE GARNISH PROTECTOR  . Refer to INSTALLATION - Step 1
  11. INSTALL FRONT PILLAR OUTER GARNISH  . Refer to INSTALLATION - Step 2
  12. INSTALL ROOF DRIP SIDE FINISH MOLDING RETAINER  . Refer to INSTALLATION - Step 7
  13. INSTALL WINDSHIELD OUTSIDE UPPER MOLDING SUB-ASSEMBLY  . Refer to INSTALLATION - Step 8
  14. INSTALL ROOF HEADLINING
  15. INSTALL ROOM LIGHT ASSEMBLY  . Refer to INSTALLATION - Step 1
  16. INSTALL INNER REAR VIEW MIRROR ASSEMBLY  . Refer to INSTALLATION - Step 1
  17. INSTALL INNER REAR VIEW MIRROR STAY HOLDER COVER  . Refer to INSTALLATION - Step 2
  18. INSTALL VISOR HOLDER  . Refer to INSTALLATION - Step 11
  19. INSTALL VISOR ASSEMBLY RH  . Refer to INSTALLATION - Step 12
  20. INSTALL VISOR ASSEMBLY LH  . Refer to INSTALLATION - Step 13
  21. INSTALL FRONT PILLAR GARNISH RH  . Refer to INSTALLATION - Step 31
  22. INSTALL FRONT PILLAR GARNISH LH  . Refer to INSTALLATION - Step 32
  23. INSTALL VISOR SUB-ASSEMBLY RH  . Refer to INSTALLATION - Step 33
  24. INSTALL VISOR SUB-ASSEMBLY LH  . Refer to INSTALLATION - Step 34
  25. INSTALL ASSIST GRIP ASSEMBLY  . Refer to INSTALLATION - Step 35
  26. INSTALL ASSIST GRIP PLUG  . Refer to INSTALLATION - Step 36
  27. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP RH  . Refer to INSTALLATION - Step 37
  28. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH  . Refer to INSTALLATION - Step 38
  29. INSTALL ROOF SIDE RAIL GARNISH RH  . Refer to INSTALLATION - Step 39
  30. INSTALL ROOF SIDE RAIL GARNISH LH  . Refer to INSTALLATION - Step 40
  31. INSTALL ROOF SIDE INNER GARNISH COVER RH  . Refer to INSTALLATION - Step 41
  32. INSTALL ROOF SIDE INNER GARNISH COVER LH  . Refer to INSTALLATION - Step 42
  33. INSTALL COWL SIDE TRIM BOARD RH  . Refer to INSTALLATION - Step 43
  34. INSTALL COWL SIDE TRIM BOARD LH  . Refer to INSTALLATION - Step 44
  35. INSTALL FOOTREST CLIP  . Refer to INSTALLATION - Step 1
  36. INSTALL FRONT FLOOR FOOTREST  . Refer to INSTALLATION - Step 2
  37. INSTALL ACCESS DOOR SCUFF PLATE RH  . Refer to INSTALLATION - Step 47
  38. INSTALL ACCESS DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 48
  39. INSTALL FRONT DOOR SCUFF PLATE RH  . Refer to INSTALLATION - Step 49
  40. INSTALL FRONT DOOR SCUFF PLATE LH  . Refer to INSTALLATION - Step 50
  41. INSTALL COWL TOP VENTILATOR LOUVER LH  . Refer to INSTALLATION - Step 3
  42. INSTALL COWL TOP VENTILATOR LOUVER RH  . Refer to INSTALLATION - Step 4
  43. INSTALL COWL TOP VENTILATOR LOUVER SUB-ASSEMBLY  . Refer to INSTALLATION - Step 5
  44. INSTALL FRONT FENDER SIDE PANEL UPPER LH  . Refer to INSTALLATION - Step 6
  45. INSTALL FRONT FENDER SIDE PANEL UPPER RH  . Refer to INSTALLATION - Step 7
  46. INSTALL ANTENNA ORNAMENT  . Refer to INSTALLATION - Step 8
  47. INSTALL ROOF ANTENNA POLE SUB-ASSEMBLY  . Refer to INSTALLATION - Step 1
  48. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH  . Refer to INSTALLATION - Step 10
  49. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH (CENTER SIDE)  . Refer to INSTALLATION - Step 11
  50. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH  . Refer to INSTALLATION - Step 12
  51. INSTALL WINDSHIELD WIPER ARM COVER  . Refer to INSTALLATION - Step 13
  52. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Torque: 3.9 N*m (40 kgf*cm, 35 in.*lbf)
