Back Window Lock: Components: Illustration

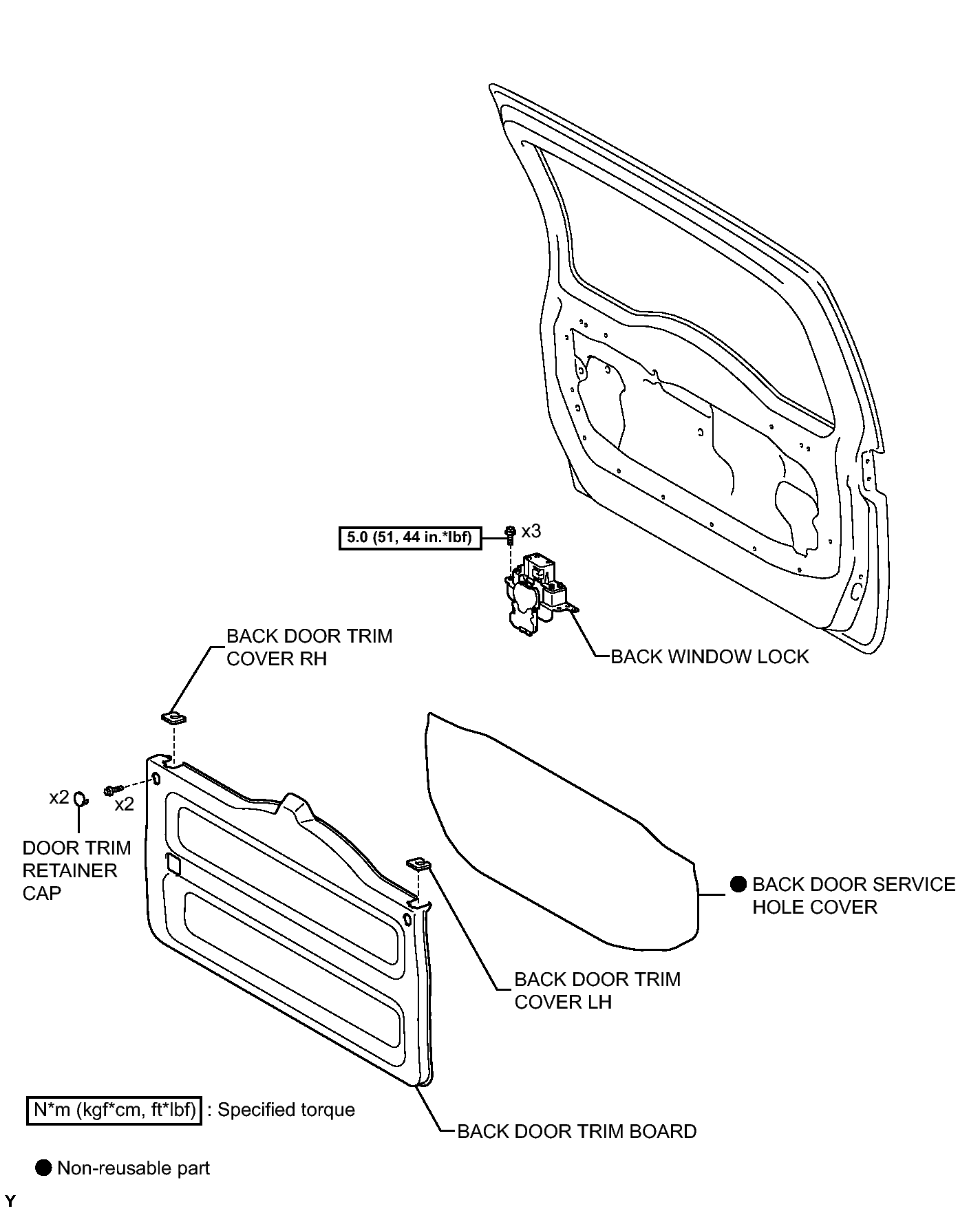

Fig 1: Identifying Back Window Lock Replacement Components With Torque Specifications

GTY184369

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
