Steering Pad: Components: Illustration

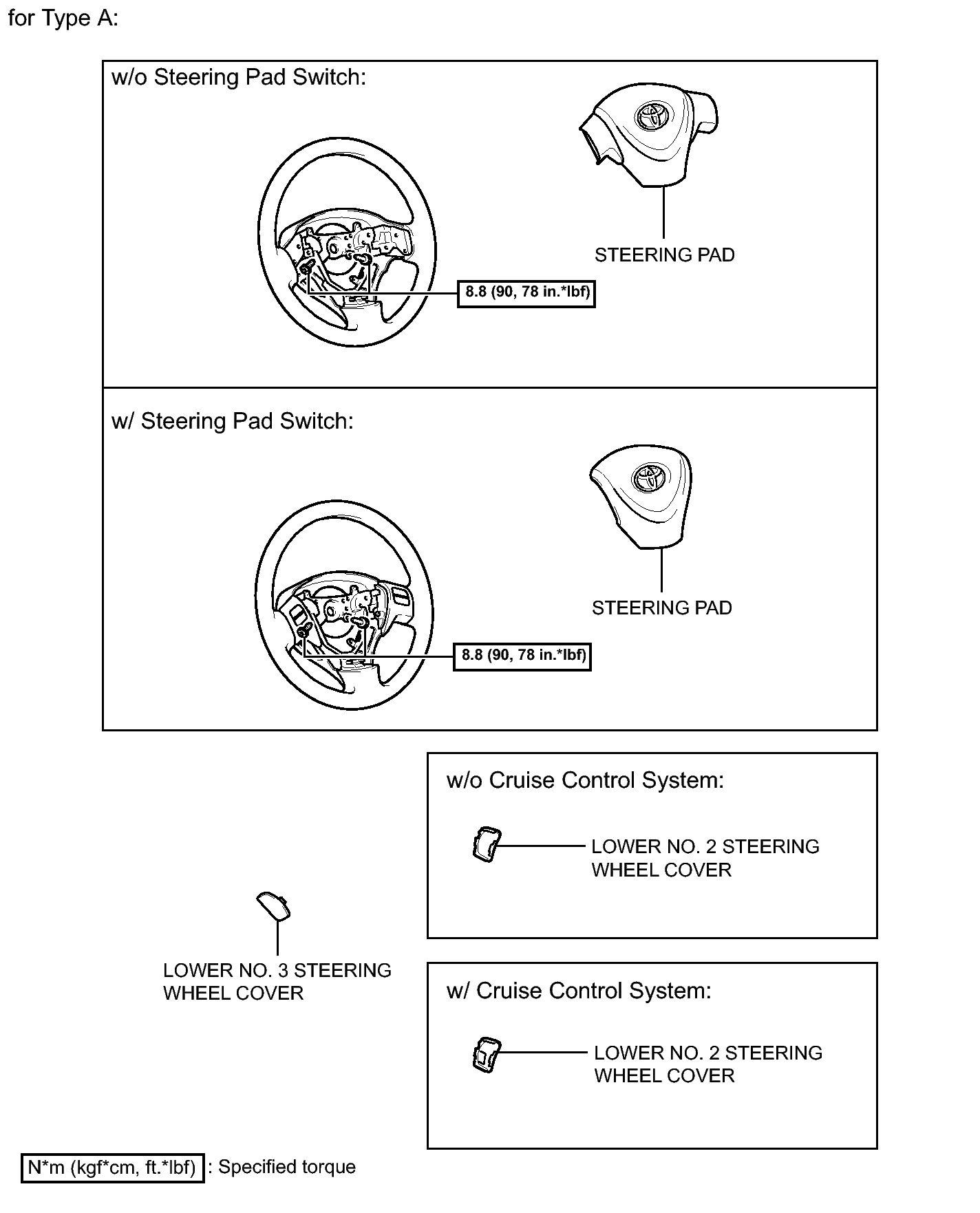

Fig 1: Identifying Steering Pad Replacement Components With Torque Specifications (1 Of 2)
GTY315688Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

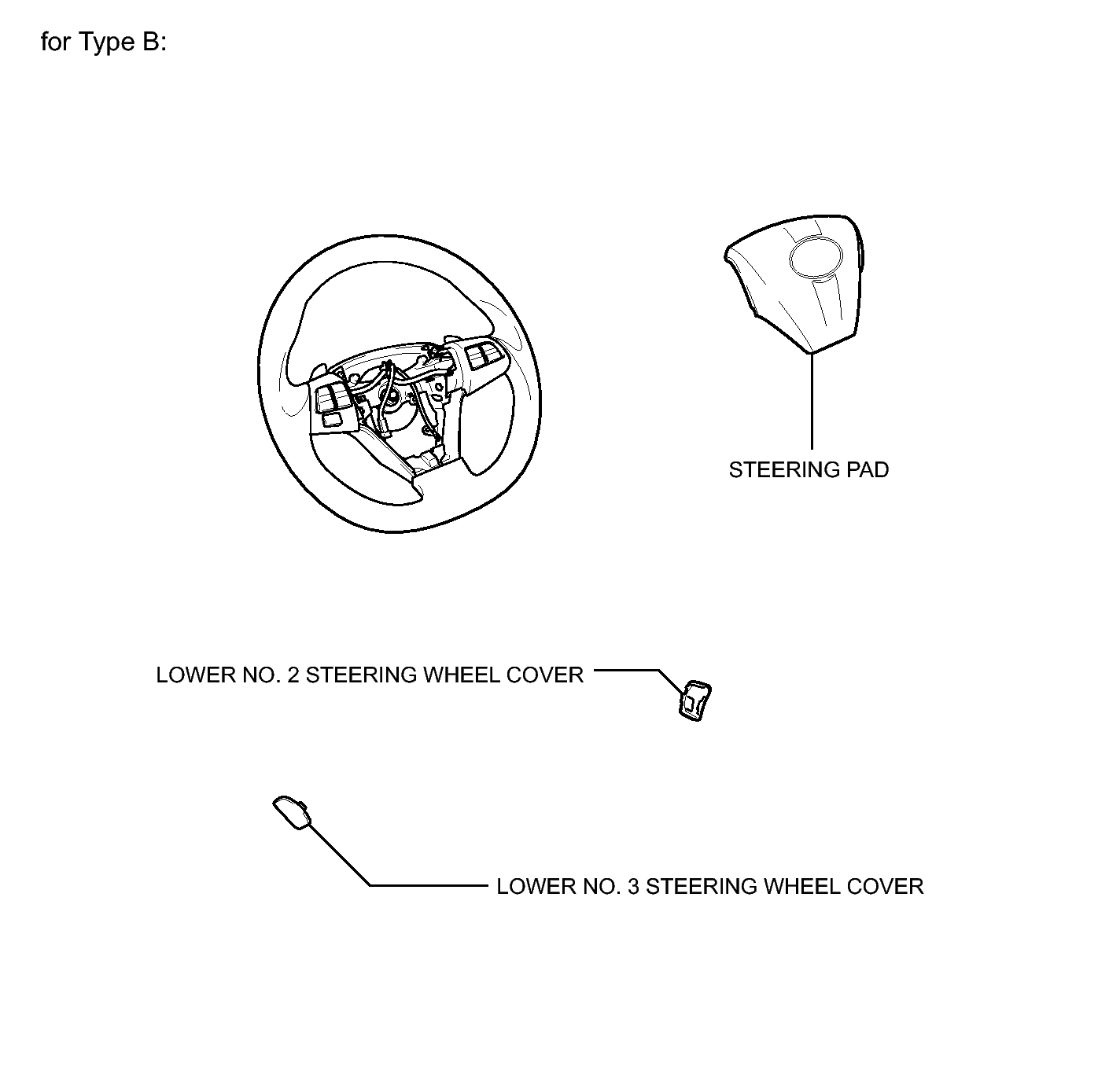

Fig 1: Identifying Steering Pad Replacement Components (2 Of 2)
GTY319228Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
