Power Source Circuit: Wiring Diagram

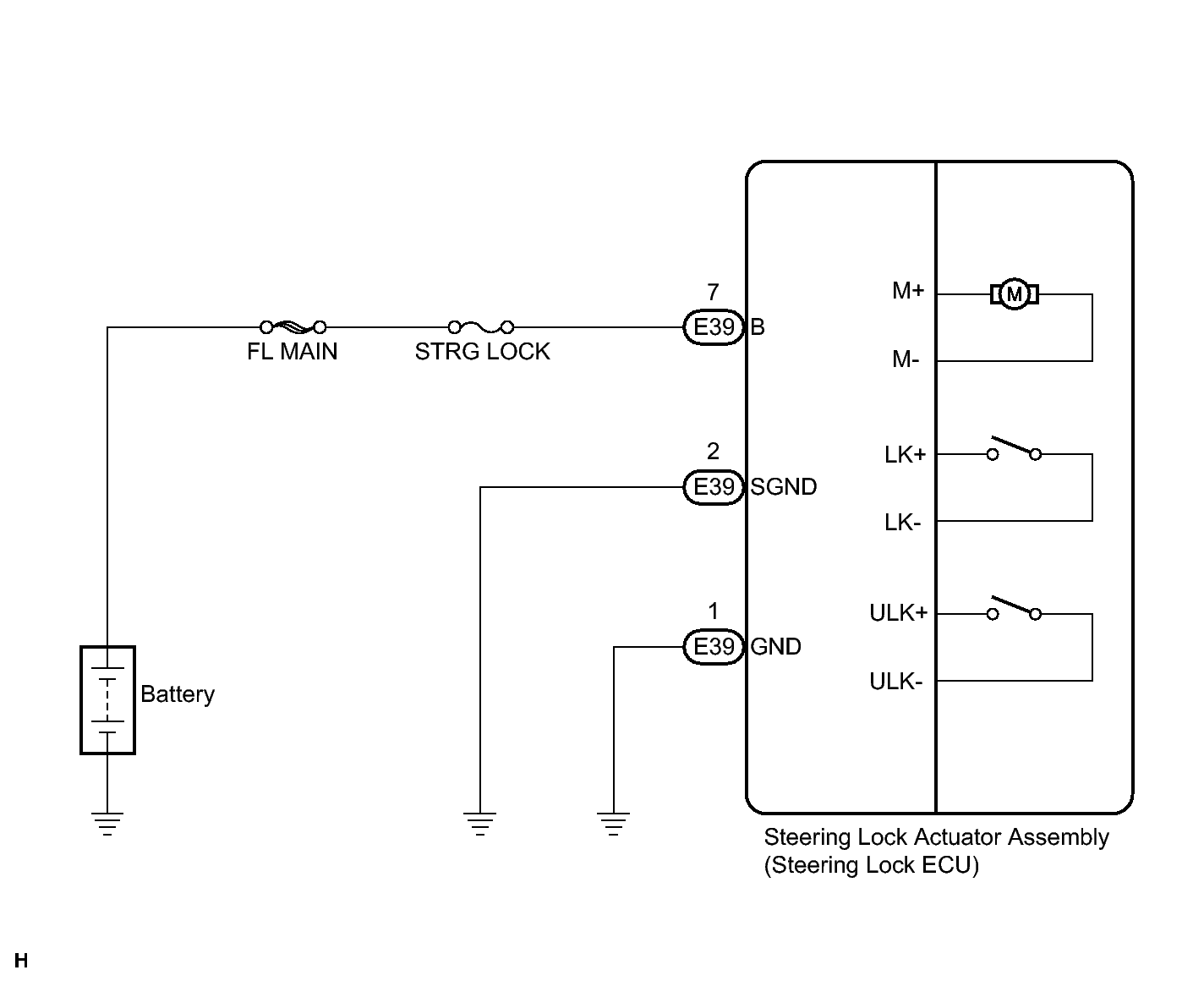

Fig 1: Steering Lock Actuator Assembly Power Source -- Wiring Diagram

GTY201030

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
