Occupant Classification Ecu: Components: Illustration

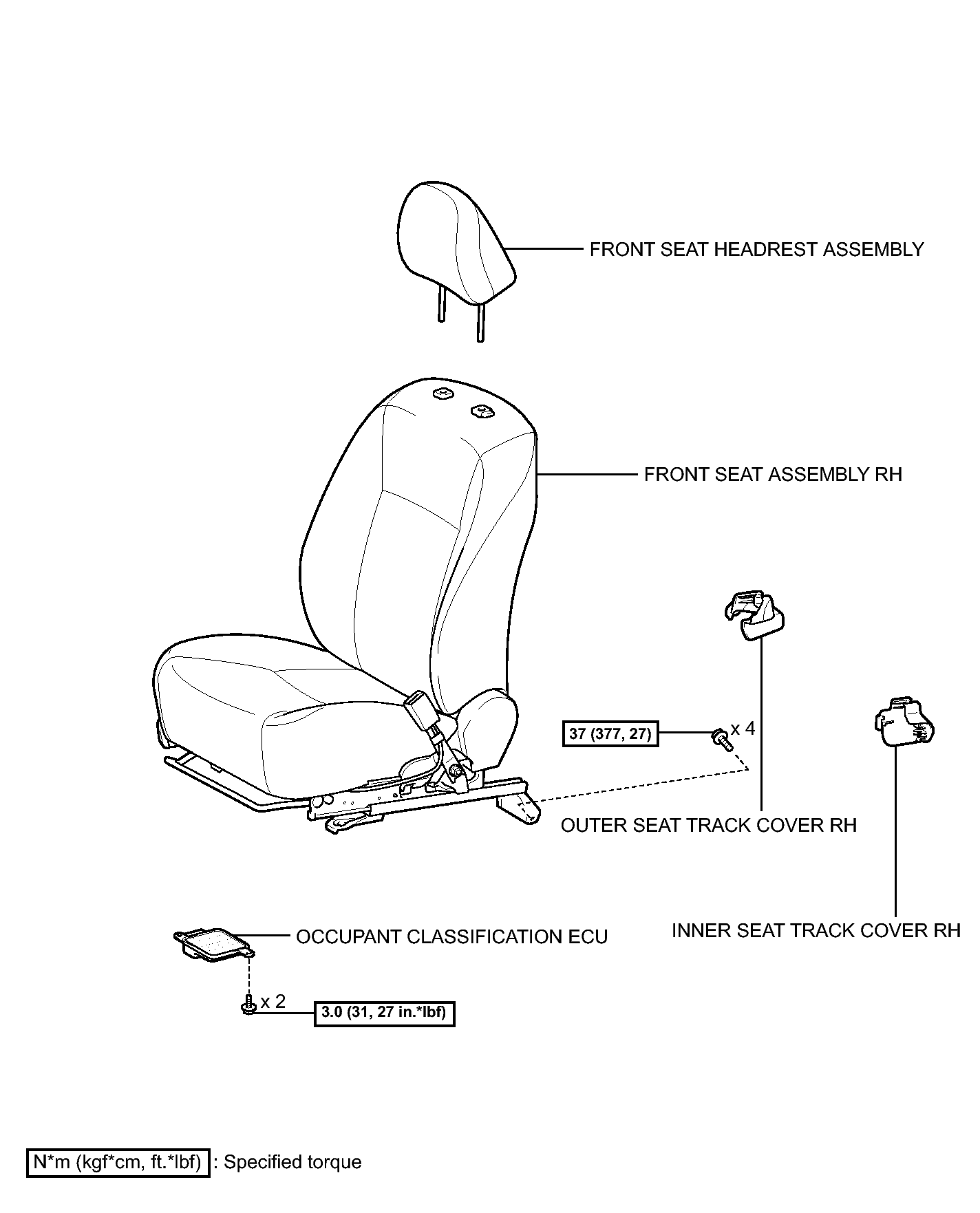

Fig 1: Identifying Occupant Classification ECU Replacement Components With Torque Specifications

GTY205184

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
