Mode 6 - TOYOTA
>>
Sequoia
>>
3UR-FE 5.7L
3UR-FE 5.7L

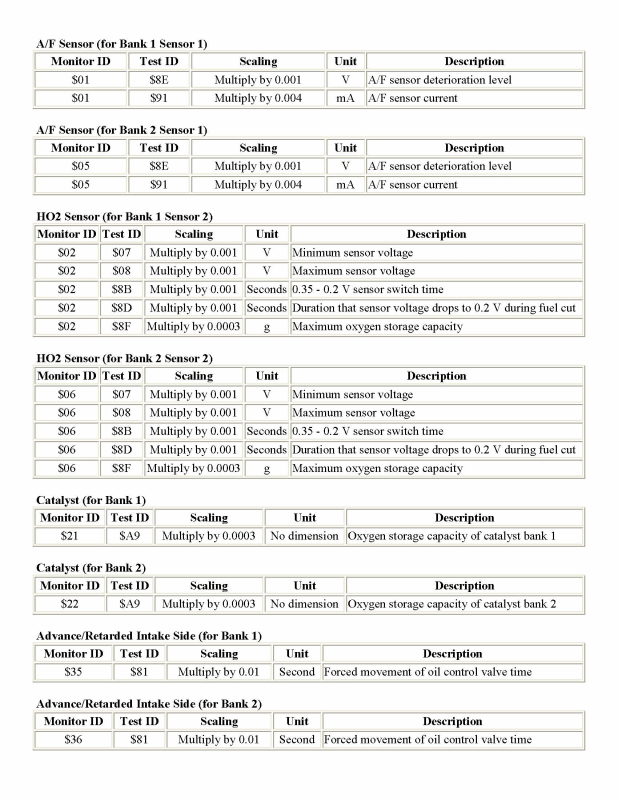

Fig 1: Mode 6 Data For Sequoia 5.7L (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

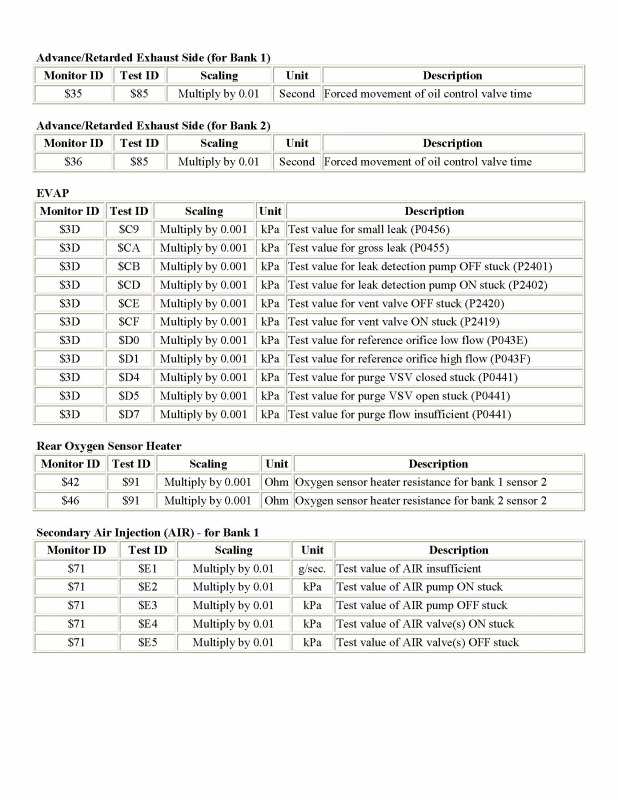

Fig 2: Mode 6 Data For Sequoia 5.7L (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

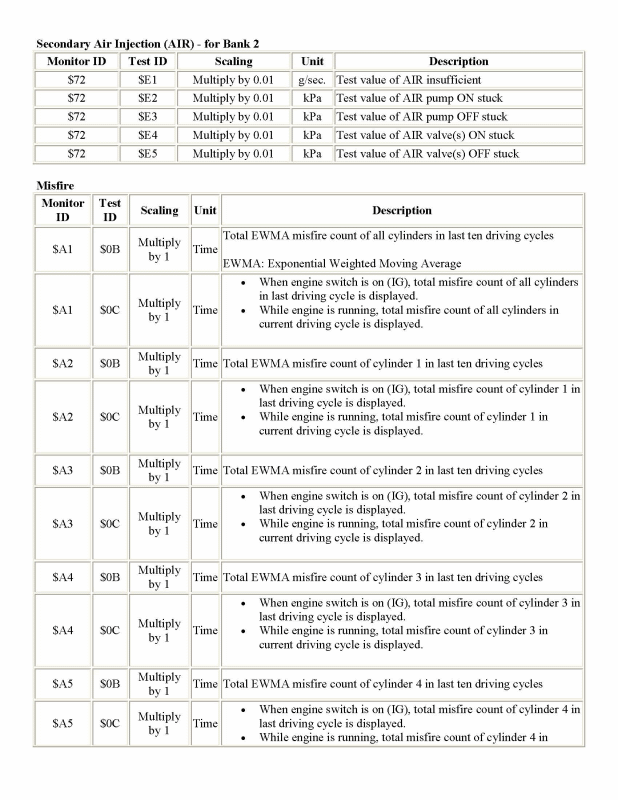

Fig 3: Mode 6 Data For Sequoia 5.7L (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

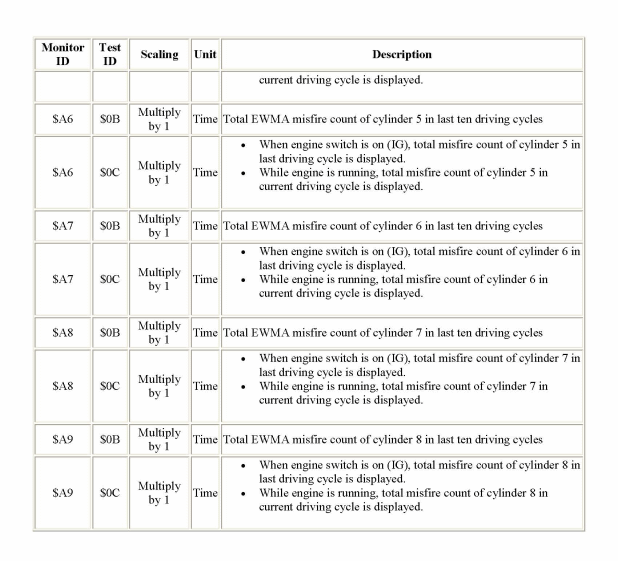

Fig 4: Mode 6 Data For Sequoia 5.7L (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
