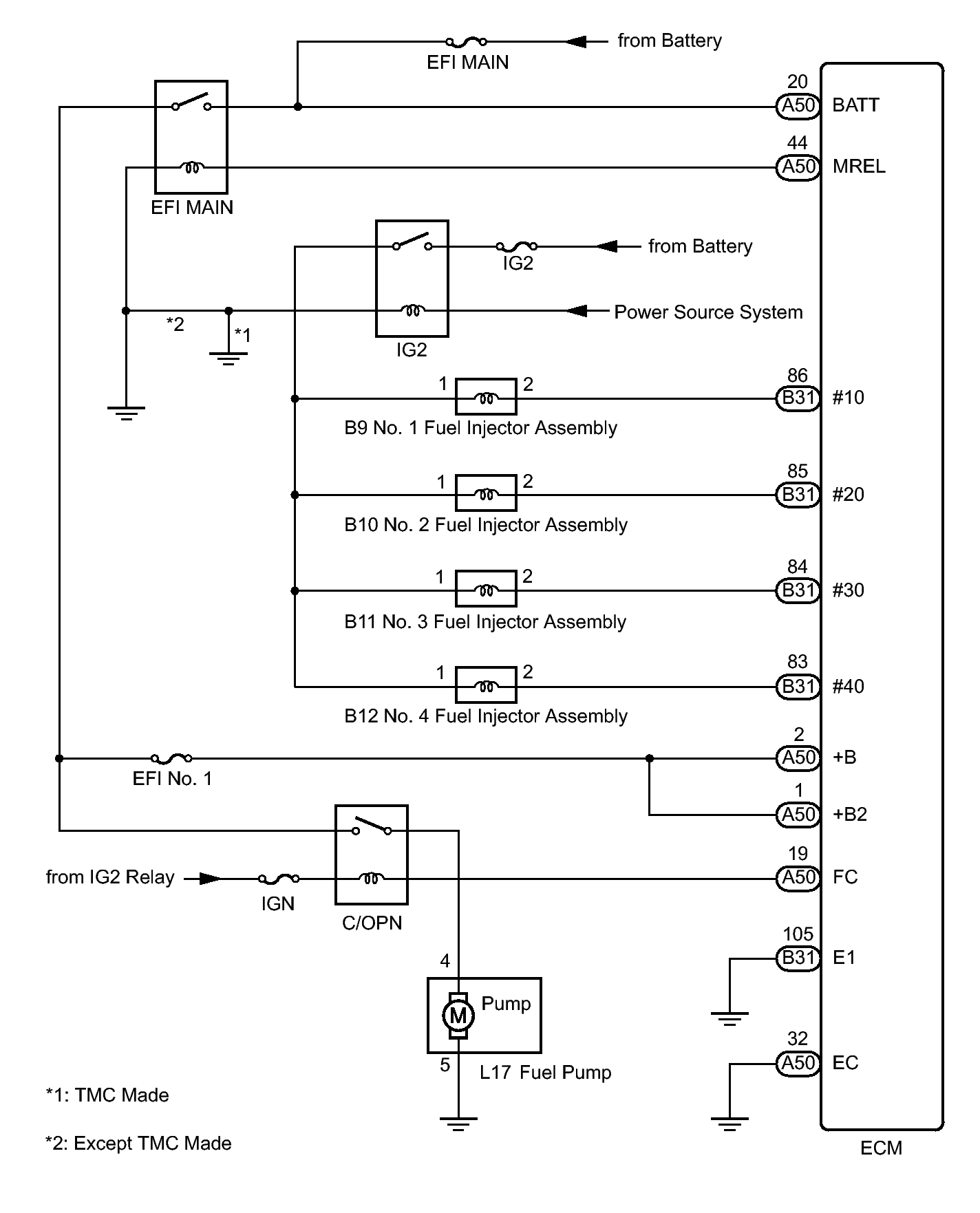

Home >> Toyota >> 2012 >> Corolla Base, Automatic Trans >> Repair and Diagnosis >> Engine Performance >> Fuel Delivery >> Fuel System (Inspection) (2ZR-FE) >> Fuel System >> System Diagram >> System Diagram
