Engine Switch: Components: Illustration

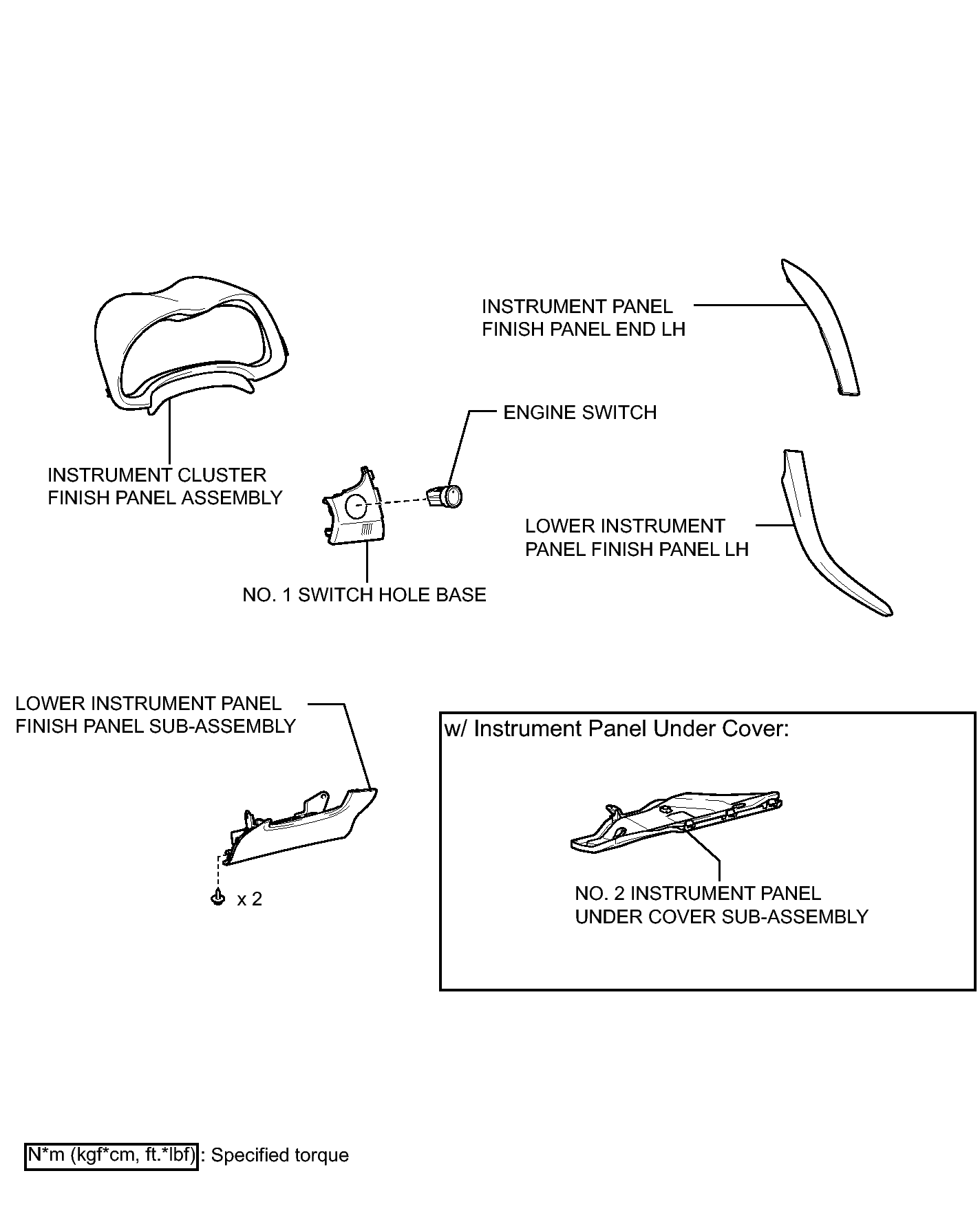

Fig 1: Identifying Engine Switch Replacement Components With Torque Specifications

GTY168997

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
