Remote Control Mirror: Notes

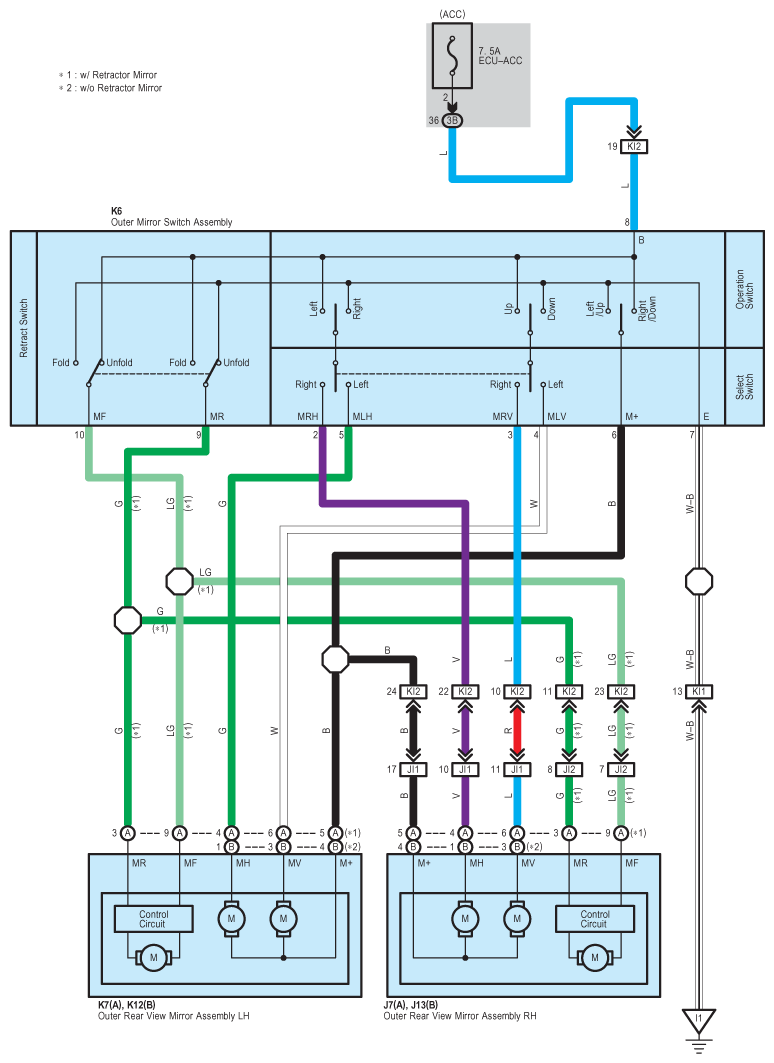

Fig 1: Remote Control Mirror System Wiring Diagram
G08798206Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
