Section 60 (Air Conditioning System (Service Information)): Compressor: Removal: Removal

WARNING: This page is about a different car, the 2012 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM See step 1
REMOVE FRONT WHEEL RH
REMOVE FRONT FENDER APRON SEAL RH
REMOVE V-BANK COVER SUB-ASSEMBLY
REMOVE V-RIBBED BELT . Refer to REMOVAL - Step 4
REMOVE GENERATOR ASSEMBLY . Refer to REMOVAL - Step 4
DISCONNECT COOLER REFRIGERANT DISCHARGE HOSE NO. 1
1. Remove the bolt and disconnect the cooler refrigerant discharge hose No. 1.

  Fig 1: Remove/Install Cooler Refrigerant Discharge Hose No. 1 Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the cooler refrigerant discharge hose No. 1.
  NOTE:
  Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.
DISCONNECT SUCTION HOSE SUB-ASSEMBLY
1. Remove the bolt and disconnect the suction hose sub-assembly.

  Fig 2: Remove/Install Suction Hose And Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the O-ring from the suction hose No. 1.
  NOTE:
  Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering.
REMOVE COMPRESSOR AND MAGNETIC CLUTCH
1. Disconnect the connector.
2. Remove the 4 bolts and compressor and magnetic clutch.

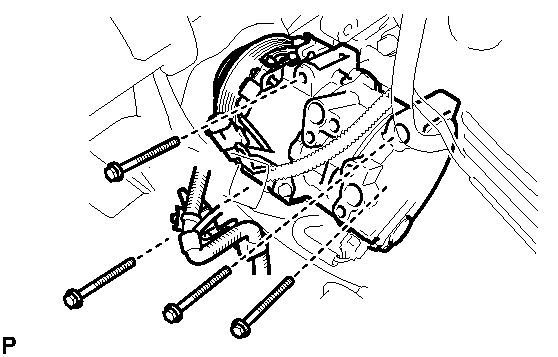

  Fig 3: Identifying Compressor And Magnetic Clutch Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
