Throttle Body: Components: Illustration

Fig 1: Identifying Throttle Body Replacement Components With Torque Specifications (1 Of 2)
GTY322598Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

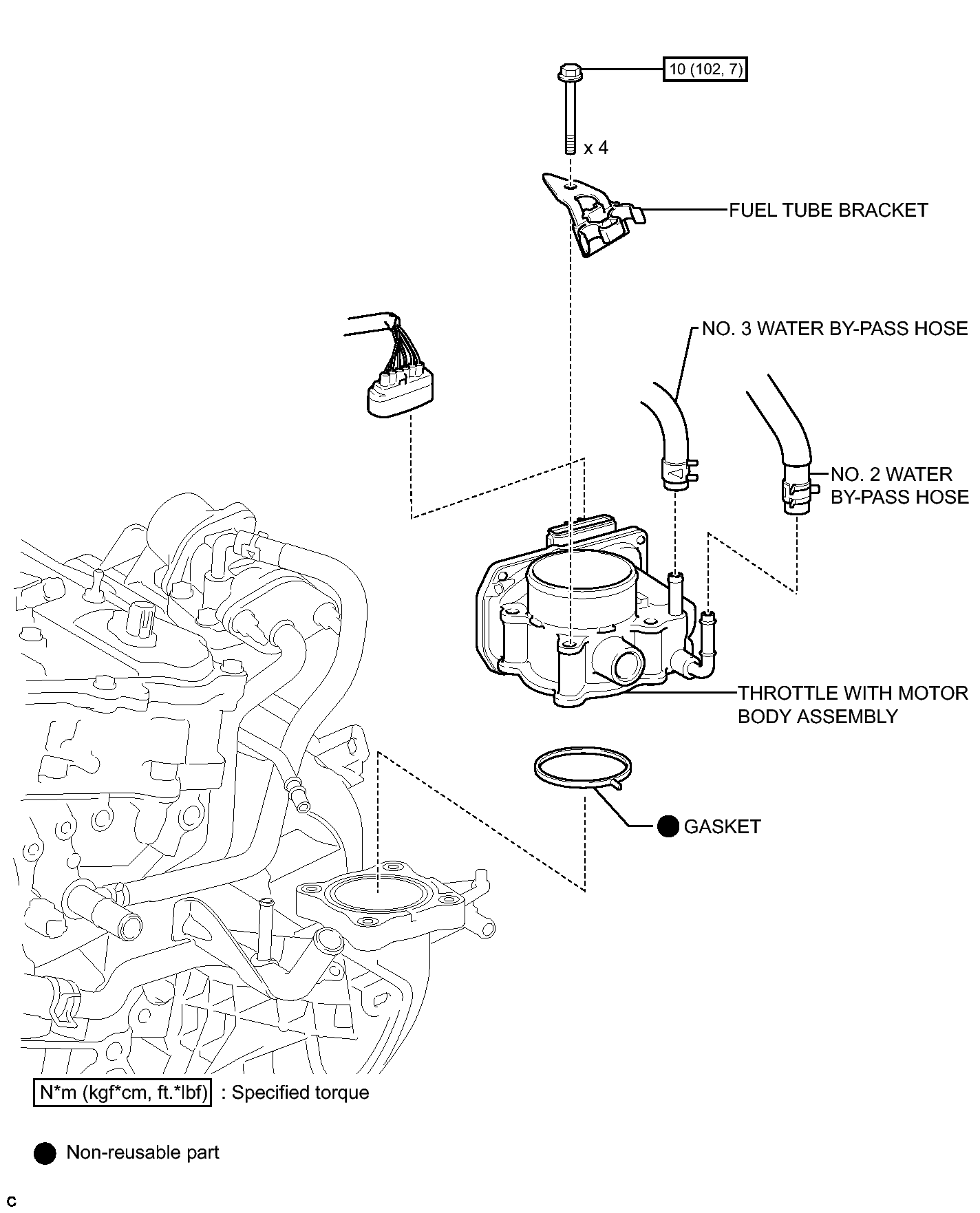

Fig 2: Identifying Throttle Body Replacement Components With Torque Specifications (2 Of 2)
GTY320699Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
