Transmission Control Cable Assembly: Removal: Removal

WARNING: This page is about a different car, the 2012 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONER UNIT ASSEMBLY
Refer to REMOVAL .
REMOVE CENTER AIR BAG SENSOR ASSEMBLY . Refer to REMOVAL - Step 8 .
REMOVE COOL AIR INTAKE DUCT SEAL . Refer to REMOVAL - Step 15 .
REMOVE NO. 2 AIR CLEANER INLET . Refer to REMOVAL - Step 21 .
REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE . Refer to REMOVAL - Step 10 .
REMOVE AIR CLEANER CASE . Refer to REMOVAL - Step 23 .
REMOVE NO. 1 AIR CLEANER INLET . Refer to REMOVAL - Step 24 .
REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY
1. Turn over the carpet, remove the 2 bolts and disconnect the transmission control cable assembly.

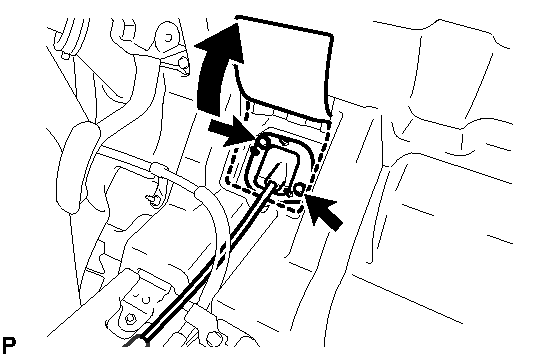

  Fig 1: Locating No. 2 Shift Cable Grommet Retainer Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the nut from the control shaft lever.

  Fig 2: Locating No. 2 Shift Cable Grommet Retainer Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Disconnect the transmission control cable assembly from the control shaft lever.
4. Remove the clip and disconnect the transmission control cable assembly from the No. 1 transmission control cable bracket.

  Fig 3: Locating Transmission Cable Bracket Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Disconnect the transmission control cable assembly from the transmission floor shift assembly.

  Fig 4: Locating Transmission Control Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Pull out the transmission control cable assembly from the body.
