Speed Sensor: Installation: Installation

WARNING: This page is about a different car, the 2012 Toyota Avalon. However, it is still accessible from the selected car via links, so may be relevant.

INSTALL SPEED SENSOR
1. Coat the 2 bolts with ATF.

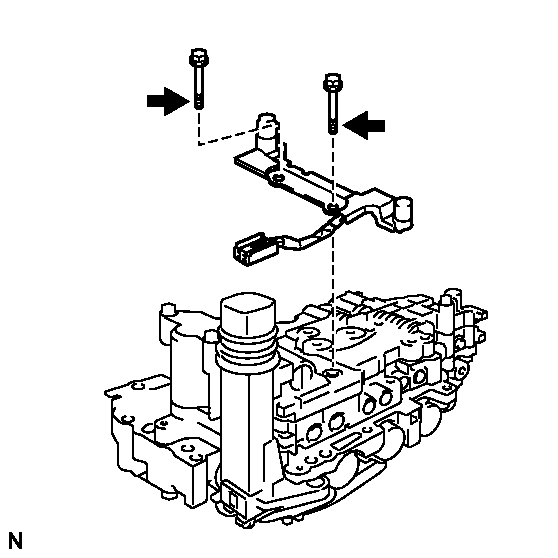

  Fig 1: Identifying Bolts And Speed Sensor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Install the speed sensor to the valve body with the 2 bolts.
  Torque: 11 N*m (112 kgf*cm, 8 ft.*lbf)
3. Connect the connector.
INSTALL TRANSMISSION VALVE BODY ASSEMBLY See step 2.
INSTALL VALVE BODY OIL STRAINER ASSEMBLY See step 3.
INSTALL AUTOMATIC TRANSAXLE OIL PAN SUB-ASSEMBLY See step 4.
INSTALL AUTOMATIC TRANSAXLE ASSEMBLY
HINT:

See step 10.
