Starting (w/o Smart Key System): Notes

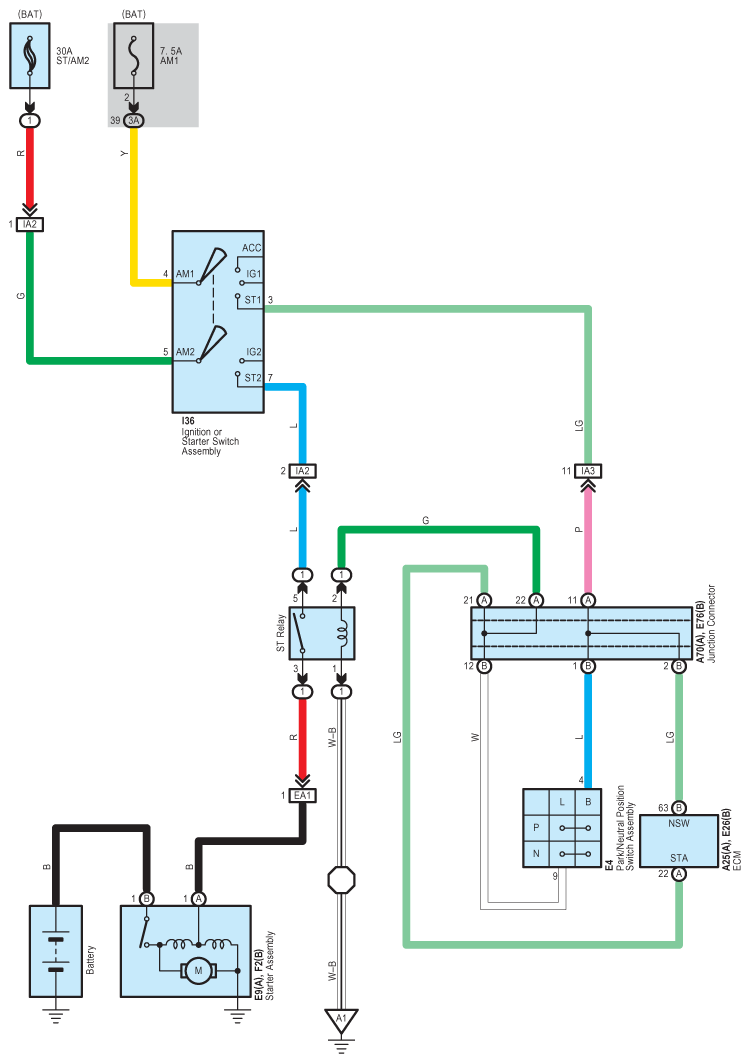

Fig 1: Starting (w/o Smart Key System) System Wiring Diagram

G08798074

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
