OEM System Circuits (Except Hybrid): Horn: Notes

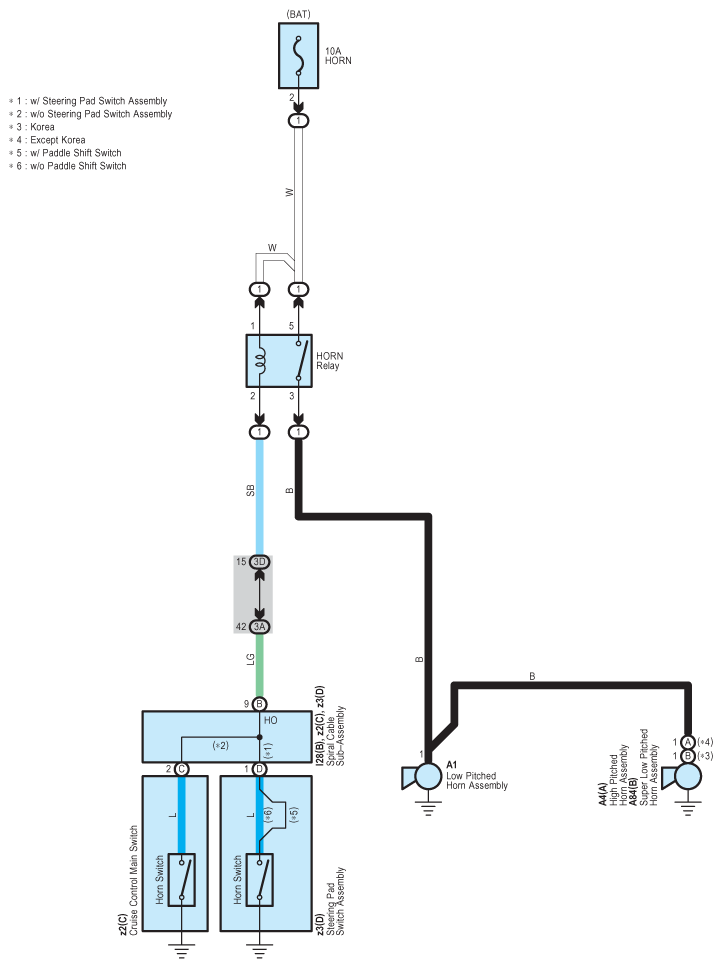

Fig 1: Horn System Wiring Diagram

G08798244

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
