Data Link Connector 3: Notes

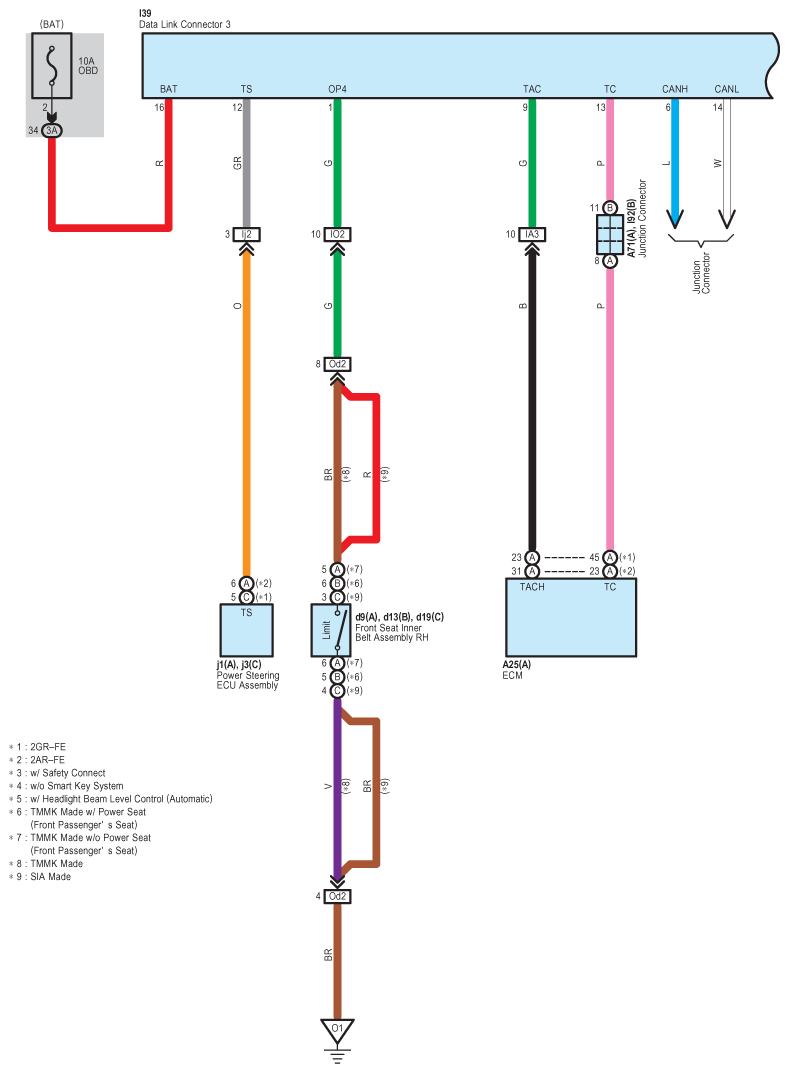

Fig 1: Data Link Connector 3 System Wiring Diagram (1 Of 2)
G08798128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

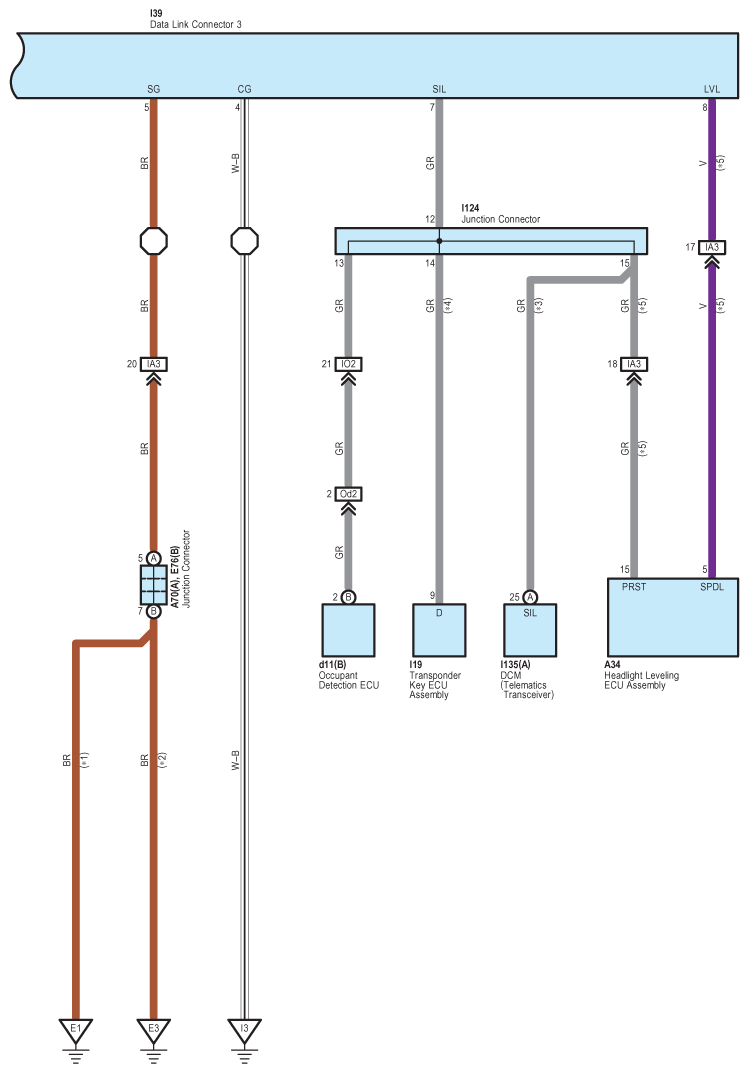

Fig 2: Data Link Connector 3 System Wiring Diagram (2 Of 2)
G08798129Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
