OEM System Circuits (Except Hybrid): Clock: Notes

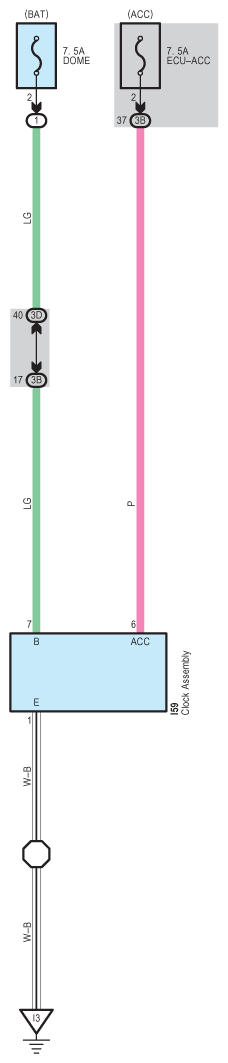

Fig 1: Clock System Wiring Diagram

G08798245

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
