Blind Spot Monitor System: Notes

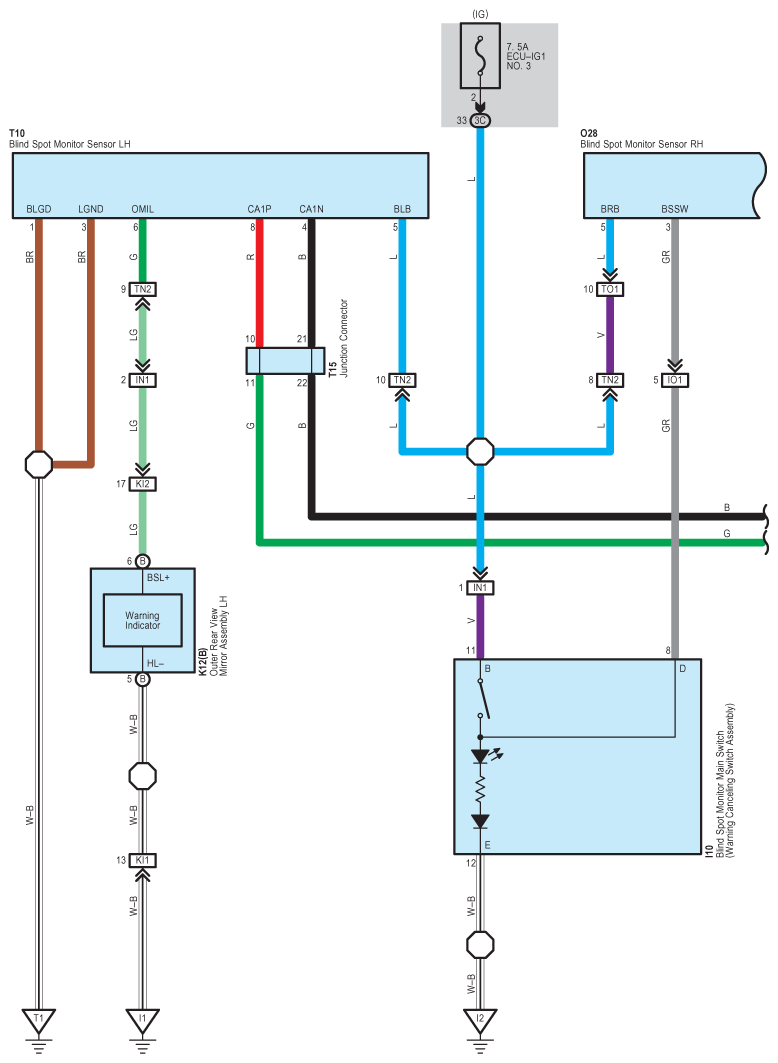

Fig 1: Blind Spot Monitor System Wiring Diagram (1 Of 3)
G08798256Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

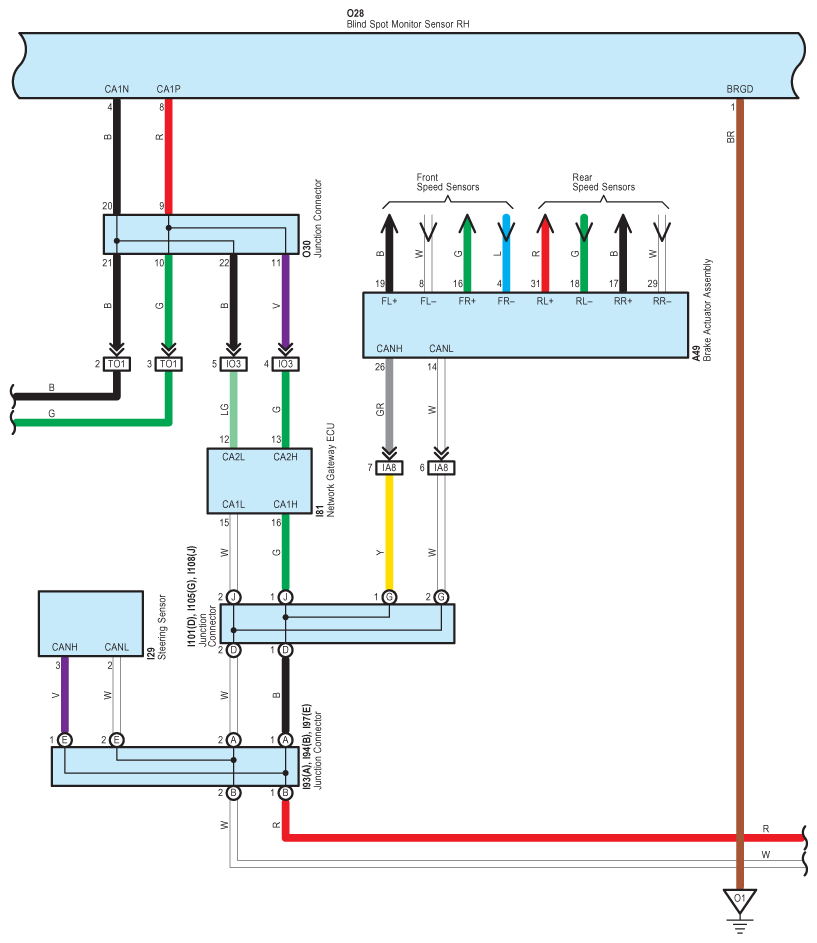

Fig 2: Blind Spot Monitor System Wiring Diagram (2 Of 3)
G08798257Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

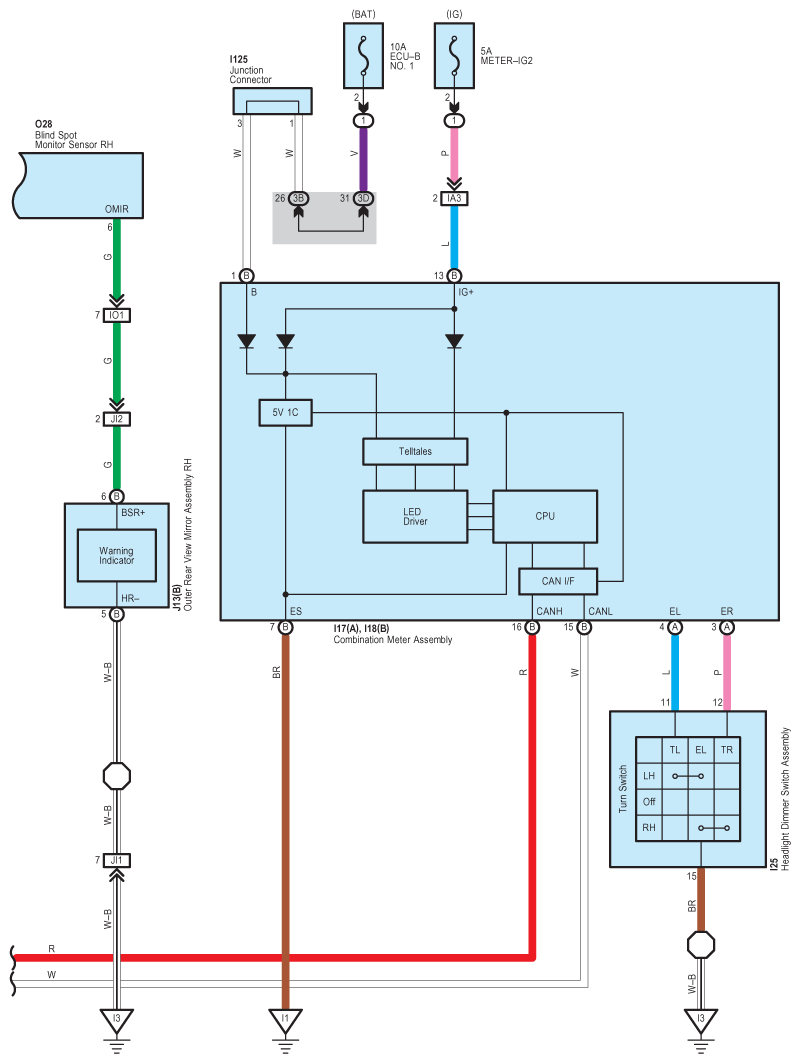

Fig 3: Blind Spot Monitor System Wiring Diagram (3 Of 3)
G08798258Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
