Shift Lever: Components: Illustration

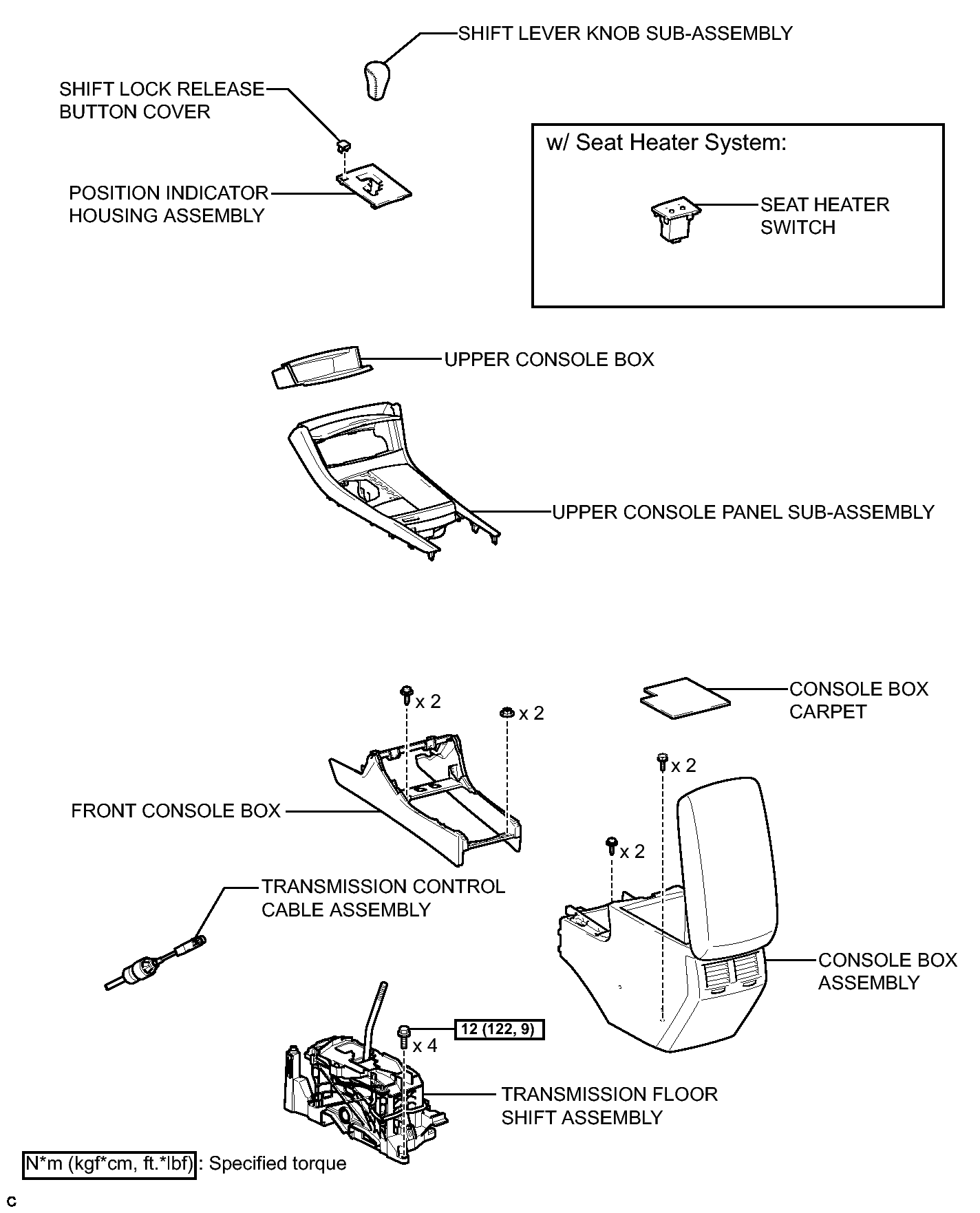

Fig 1: Identifying Shift Lever Replacement Components With Torque Specifications (1 Of 2)
GTY327748Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

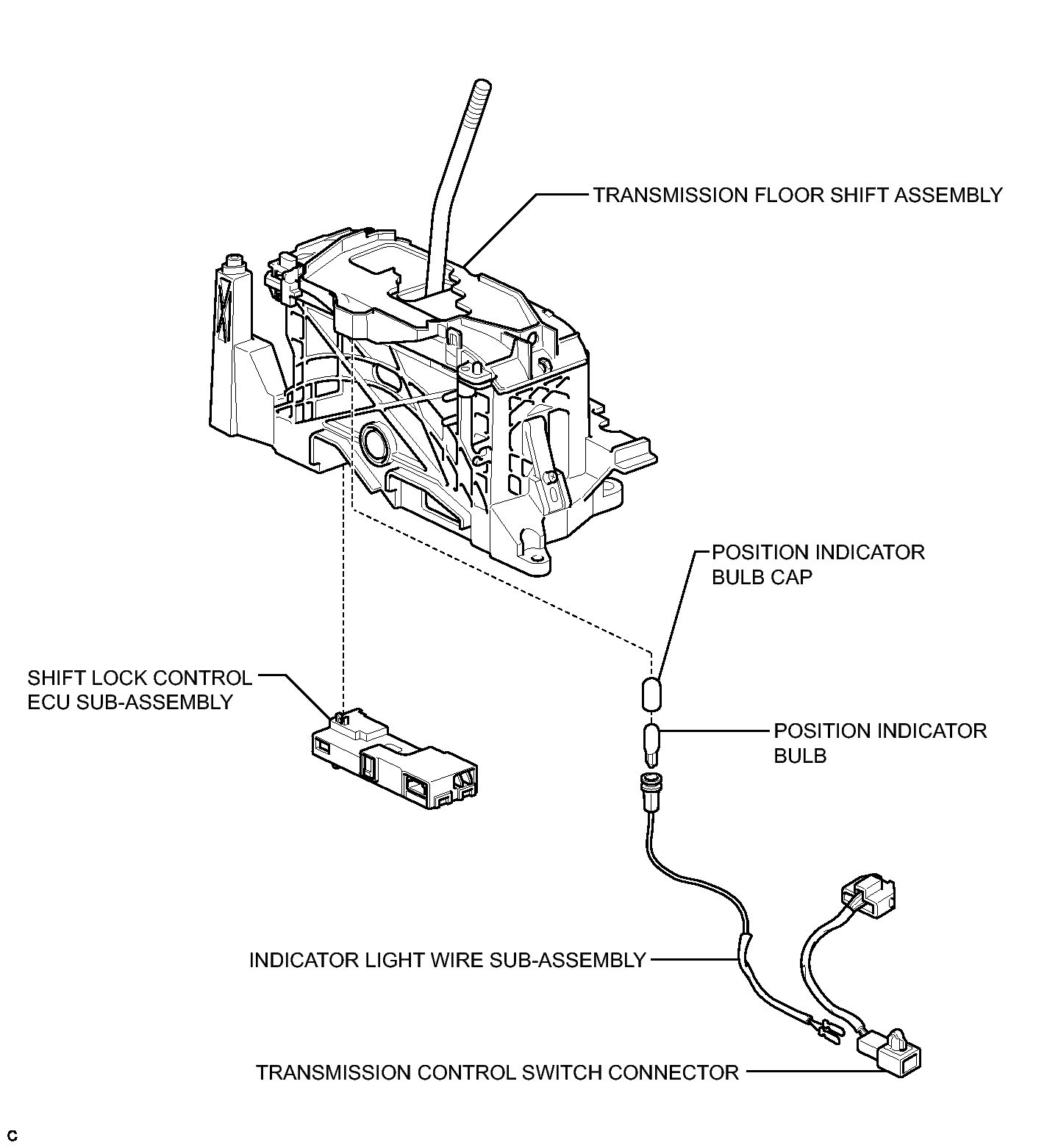

Fig 1: Identifying Shift Lever Replacement Components (1 Of 2)
GTY341037Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
