Oil Pump: Disassembly: Disassembly

INSPECT FRONT OIL PUMP AND GEAR BODY SUB-ASSEMBLY See step 1.
REMOVE STATOR SHAFT ASSEMBLY
1. Using a "TORX" wrench T30, remove the 16 bolts and stator shaft assembly from the oil pump body.

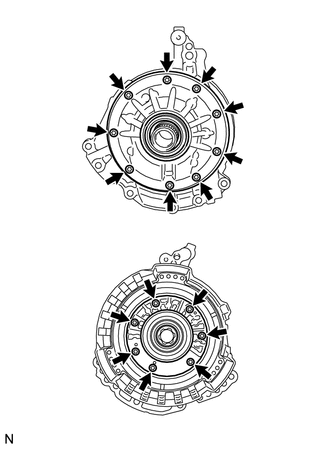

  Fig 1: Locating Stator Shaft Assembly Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE:
  Keep the gears in the order of installation.
INSPECT CLEARANCE OF FRONT OIL PUMP AND GEAR BODY SUB-ASSEMBLY See step 2.
REMOVE FRONT OIL PUMP BODY O-RING
1. Remove the O-ring from the oil pump body.

  Fig 2: Identifying O-Ring And Oil Pump Body
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT OIL PUMP DRIVE GEAR
1. Remove the front oil pump drive gear from the oil pump body.

  Fig 3: Identifying Front Oil Pump Drive Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT OIL PUMP DRIVEN GEAR
1. Remove the front oil pump driven gear from the oil pump body.

  Fig 4: Identifying Front Oil Pump Driven Gear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT OIL PUMP OIL SEAL
1. Mount the oil pump in a soft jaw vise.

  Fig 5: Removing Front Oil Pump Oil Seal Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST, remove the oil seal from the oil pump body.
  - SST: 09308-00010
