Rear Strut Rod: Components: Illustration

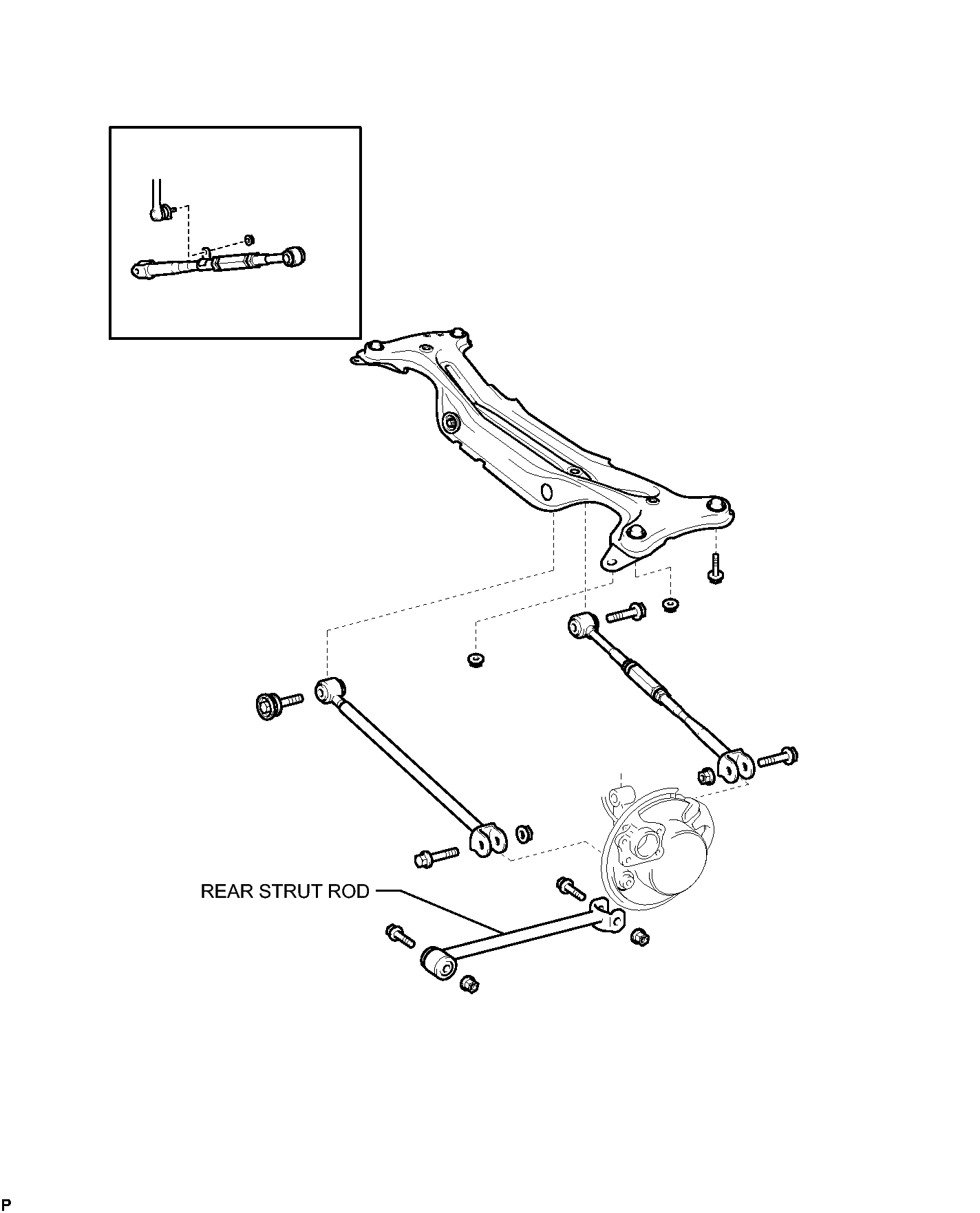

Fig 1: Identifying Rear Strut Rod Replacement Components

GTY185253

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
