Front Stabilizer Bar: Components: Illustration

Fig 1: Identifying Front Stabilizer Bar Replacement Components (1 Of 2)
GTY191002Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

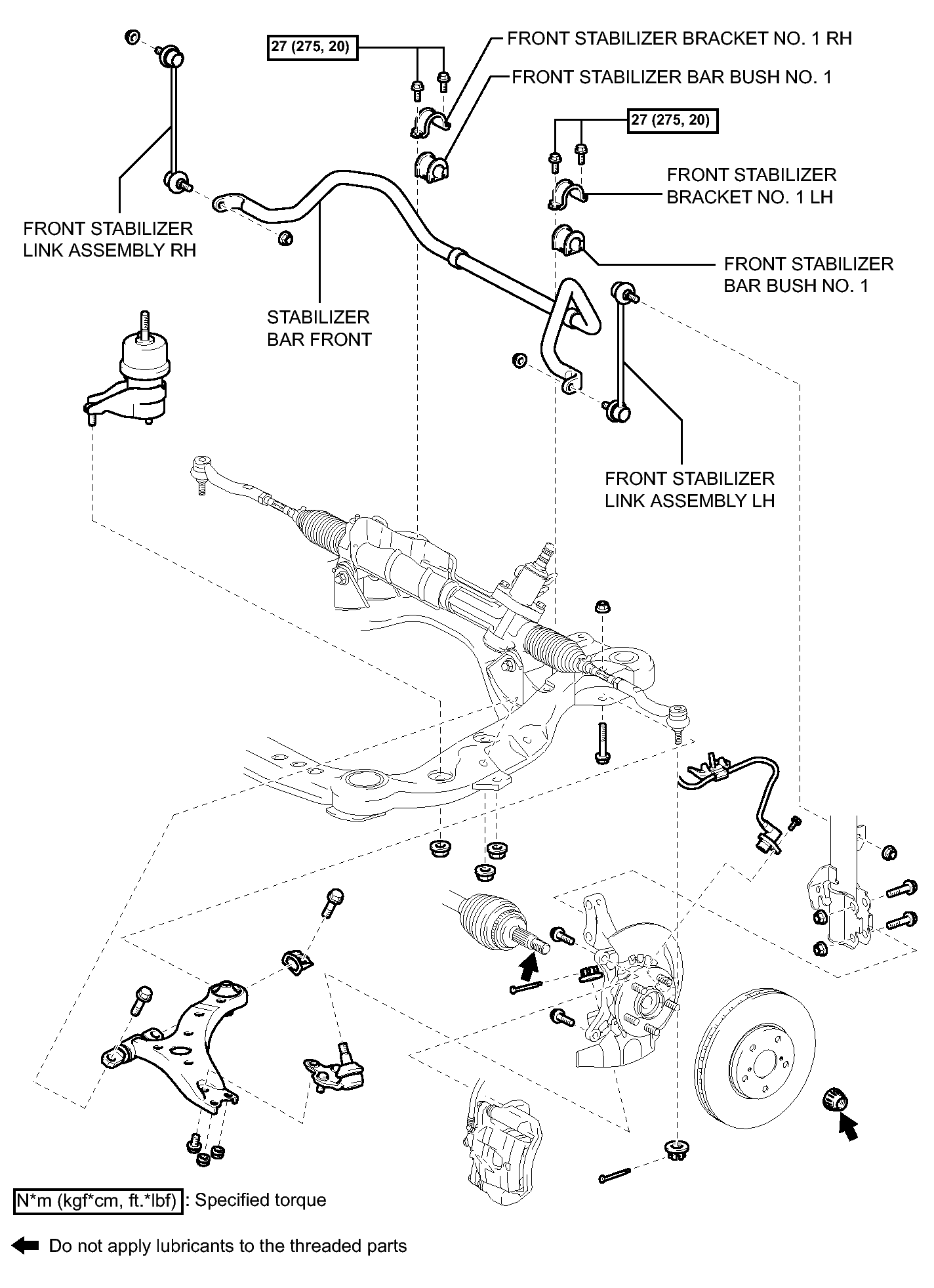

Fig 1: Identifying Front Stabilizer Bar Replacement Components With Torque Specifications (2 Of 2)
GTY202810Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
