Vane Pump: Installation: Installation

1. Install the vane pump assembly with the 2 bolts.

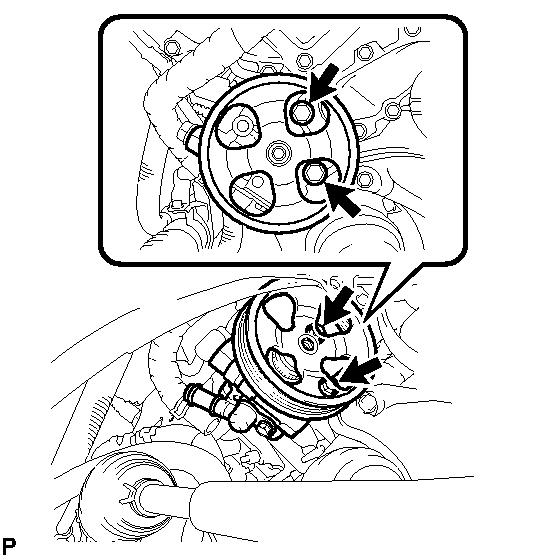

   Fig 1: Locating Vane Pump Assembly Mounting Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 43 N*m (439 kgf*cm, 32 ft.*lbf)

2. Connect the connector to the power steering oil pressure switch.
   Fig 2: Locating Connector To Power Steering Oil Pressure Switch

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install a new gasket to the pressure feed tube assembly.

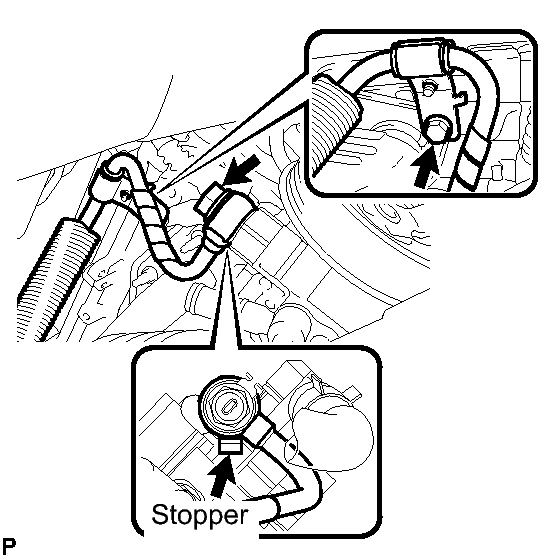

   Fig 3: Identifying Pressure Feed Tube Clamp With Bolt

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the pressure feed tube assembly to the vane pump assembly with the union bolt

   Torque: 52 N*m (525 kgf*cm, 38 ft.*lbf)

   HINT:

   Make sure that the stopper of the pressure feed tube assembly contacts the vane pump assembly as shown in the illustration, then tighten the union bolt.

3. Install the pressure feed tube clamp with the bolt.

   Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

1. Connect the oil reservoir to pump hose No. 1 with the clip.
   Fig 4: Identifying Oil Reservoir To Pump Hose No. 1 And Clip

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Refer to INSTALLATION .
