Oil Pump: Disassembly: Disassembly

  1. REMOVE OIL PUMP RELIEF VALVE
    1. Using a 27 mm socket wrench, remove the relief valve plug.
      Fig 1: Locating Oil Pump Relief Valve Plug
      GTY142559Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the valve spring and oil pump relief valve.
  2. REMOVE OIL PUMP COVER
    1. Remove the 8 bolts, oil pump cover, drive rotor and driven rotor.

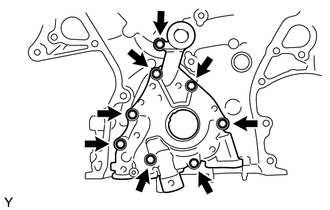

      Fig 2: Locating Oil Pump Cover Bolts
      GTY146414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
