Parts Location: Illustration

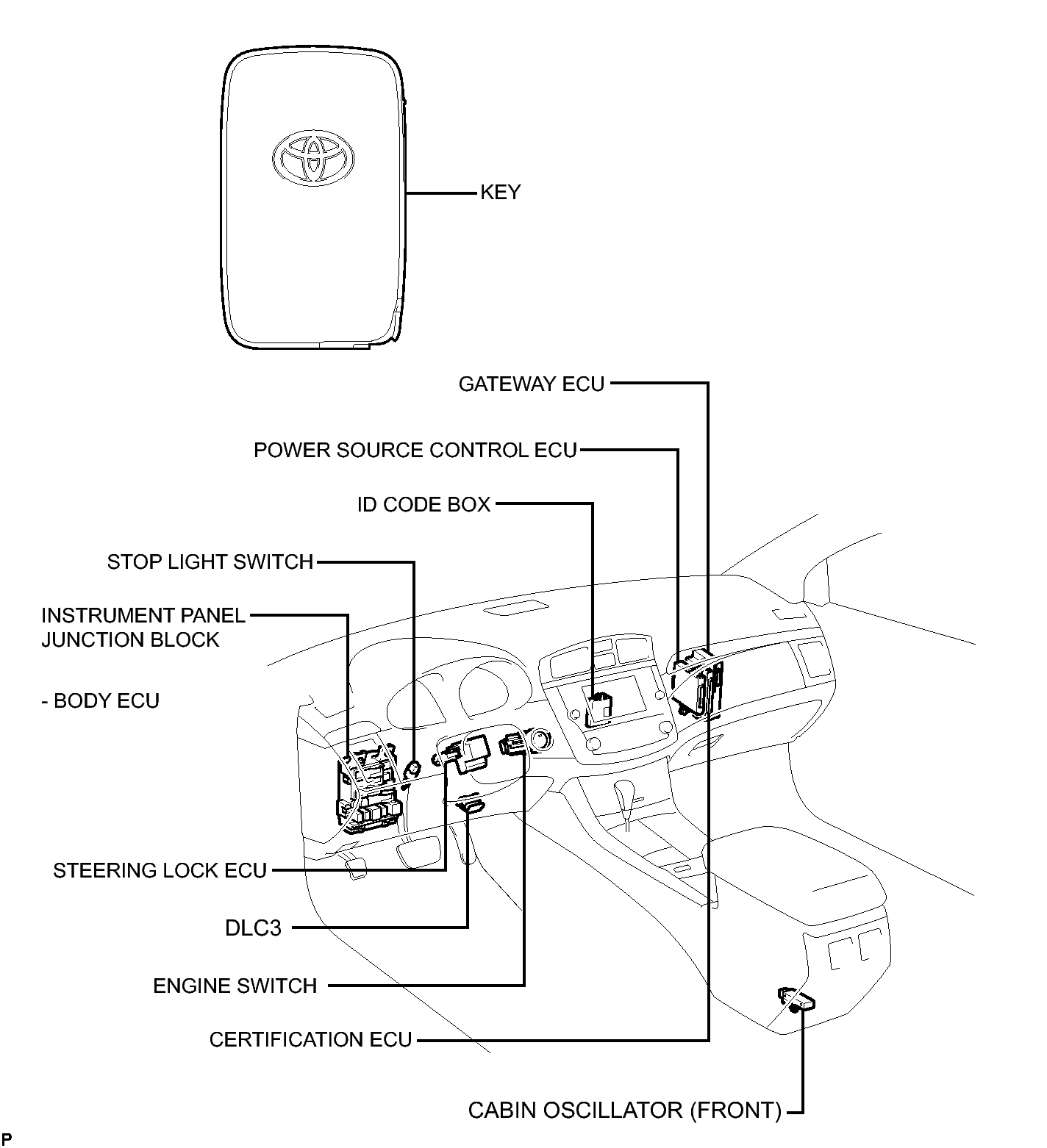

Fig 1: Identifying Smart Key System Components Location (1 Of 2)
GTY301292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

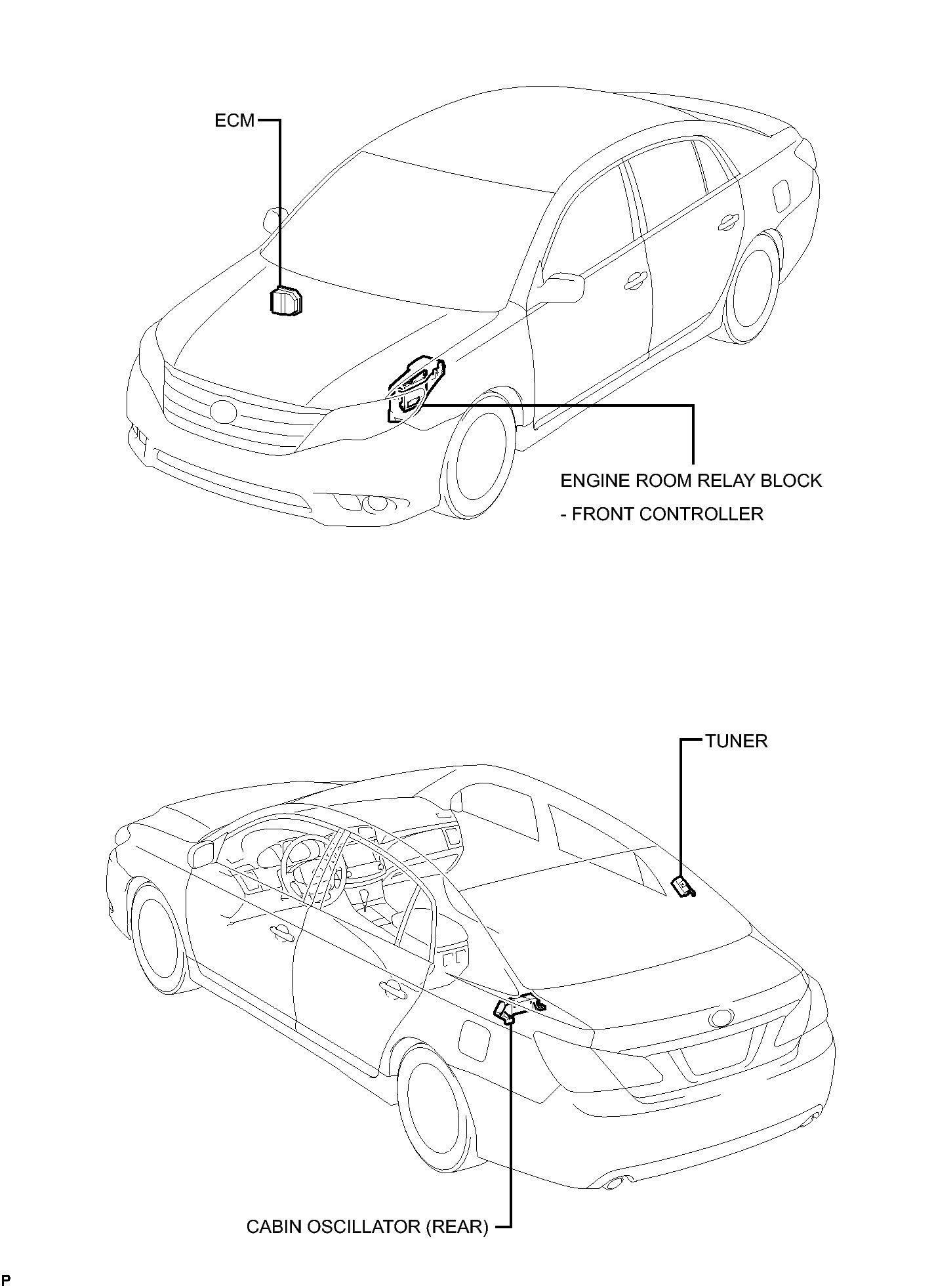

Fig 1: Identifying Smart Key System Components Location (2 Of 2)
GTY303624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
