System Diagram

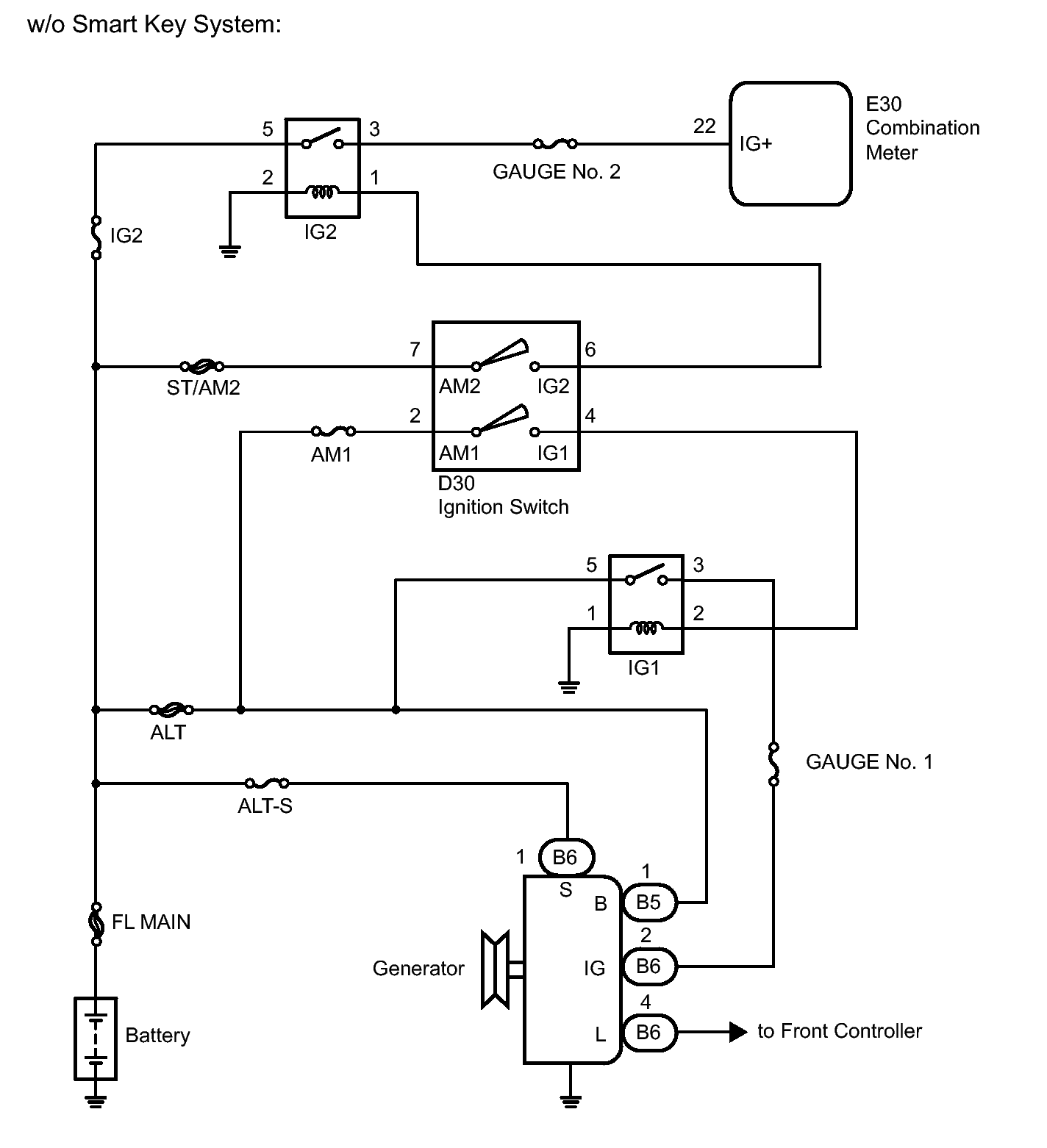

Fig 1: Charging System (w/o Smart Key System) - Circuit Diagram
GTY299238Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

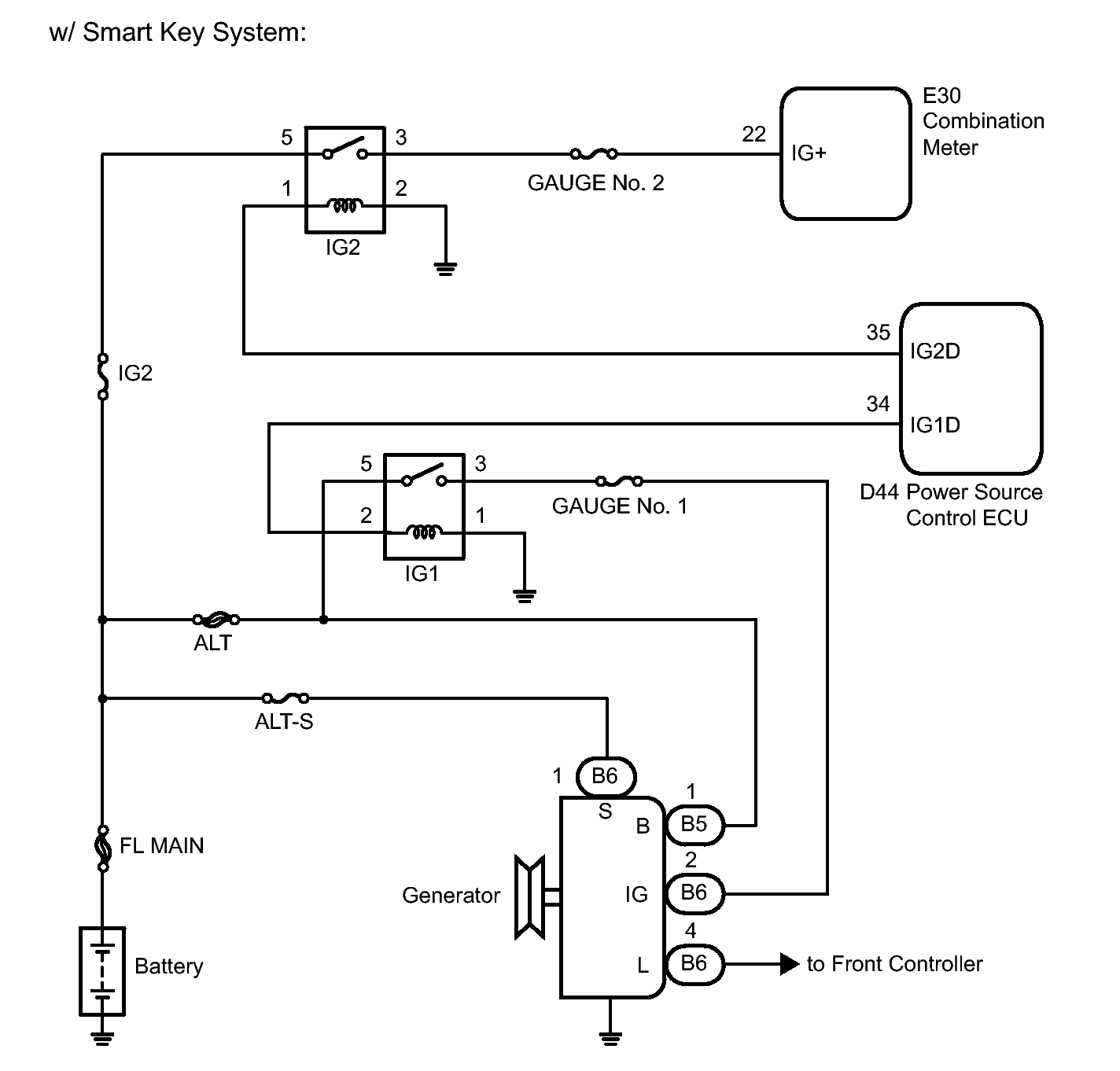

Fig 2: Charging System (w/ Smart Key System) - Circuit Diagram
GTY301352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
