Combination Meter Connector End View (E30)

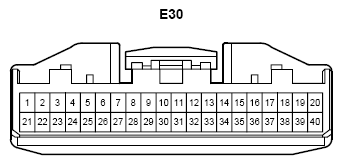

Fig 1: Combination Meter Connector End View (E30)

G08797702

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
